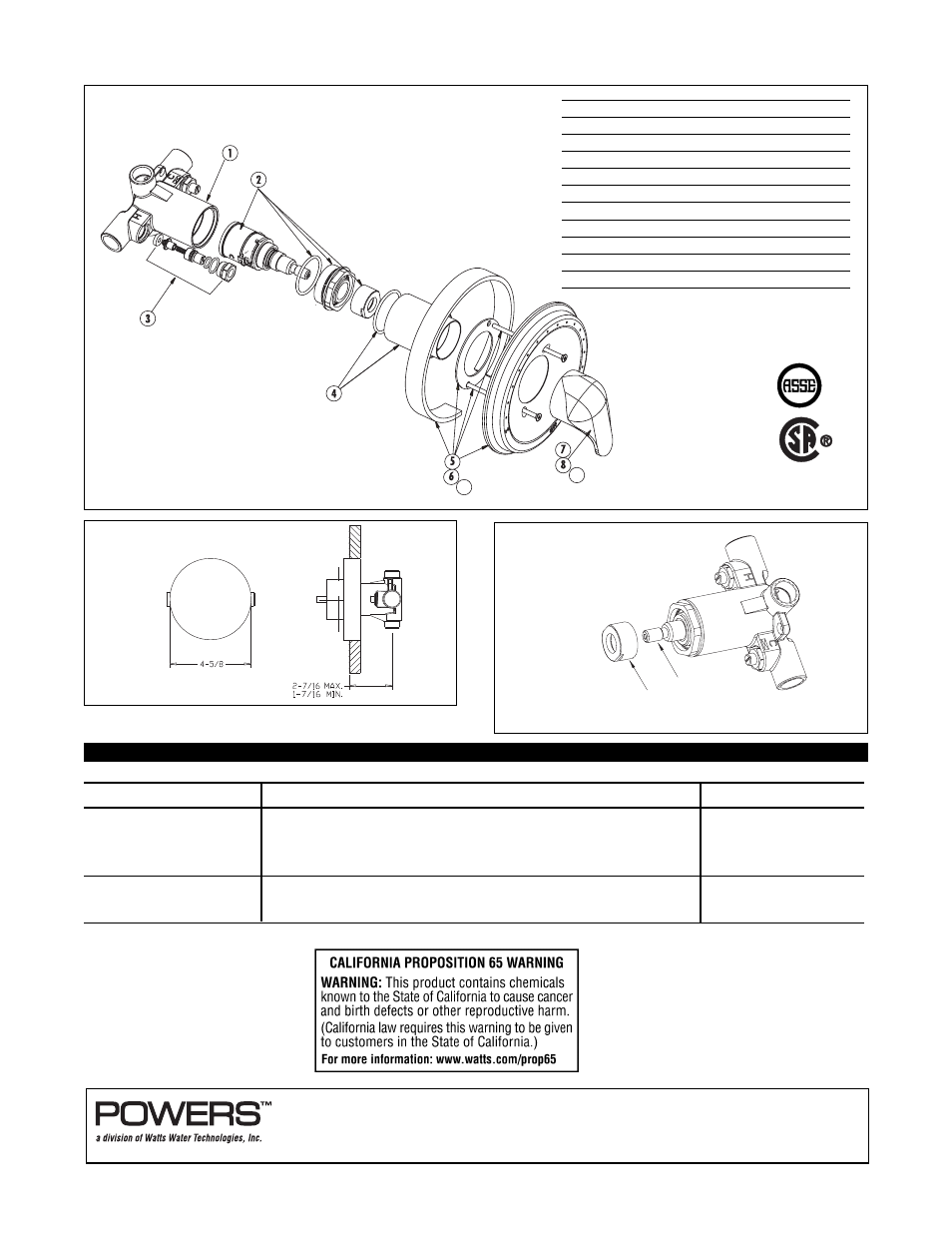

Powers e700 Series Combination T/P Tempering Valves User Manual
Page 2
IIe700
Page 2
9
10
Figure 3
HIGH TEMP
. STOP
STEM
Figure 5: Max. Temperature Setting
Figure 4: Rough-In Guide
IIe700 0617
EDP# 6512215
TROUBLESHOOTING
© 2006 Powers
USA: Phone: 1.800.669.5430 • Fax 1.847. 229 . 0526 • www.powerscontrols.com
Canada: Phone: 1.888.208.8927 • Fax 1. 888. 882 .1979 • www.powerscontrols.ca
Description
Troubleshooting
Repair Kit No.
Cartridge Kit
• Water leaks at valve stem and/or bonnet.
220 060
• Water leaks at valve shutoff.
• Water temperaure changes during shower.
Checkstop
• Checkstop leaks or will not shut off completely.
900 050
Replacement Kit
ITEM#
KIT#
DESCRIPTION
1
N/A
Valve Body
2
220 060
Cartridge Kit
3
900 050
Checkstop Replacement Kit
4
220 054
Sleeve Kit
5
220 051
Metal Trim Plate Kit
6
220 053
ABS Trim Plate Kit
7
220 050
Metal Handle Kit
8
220 052
ABS Handle Kit
9
220 079
Dome Metal Handle Kit
10
220 078
Metal Flat Trim Plate Kit
