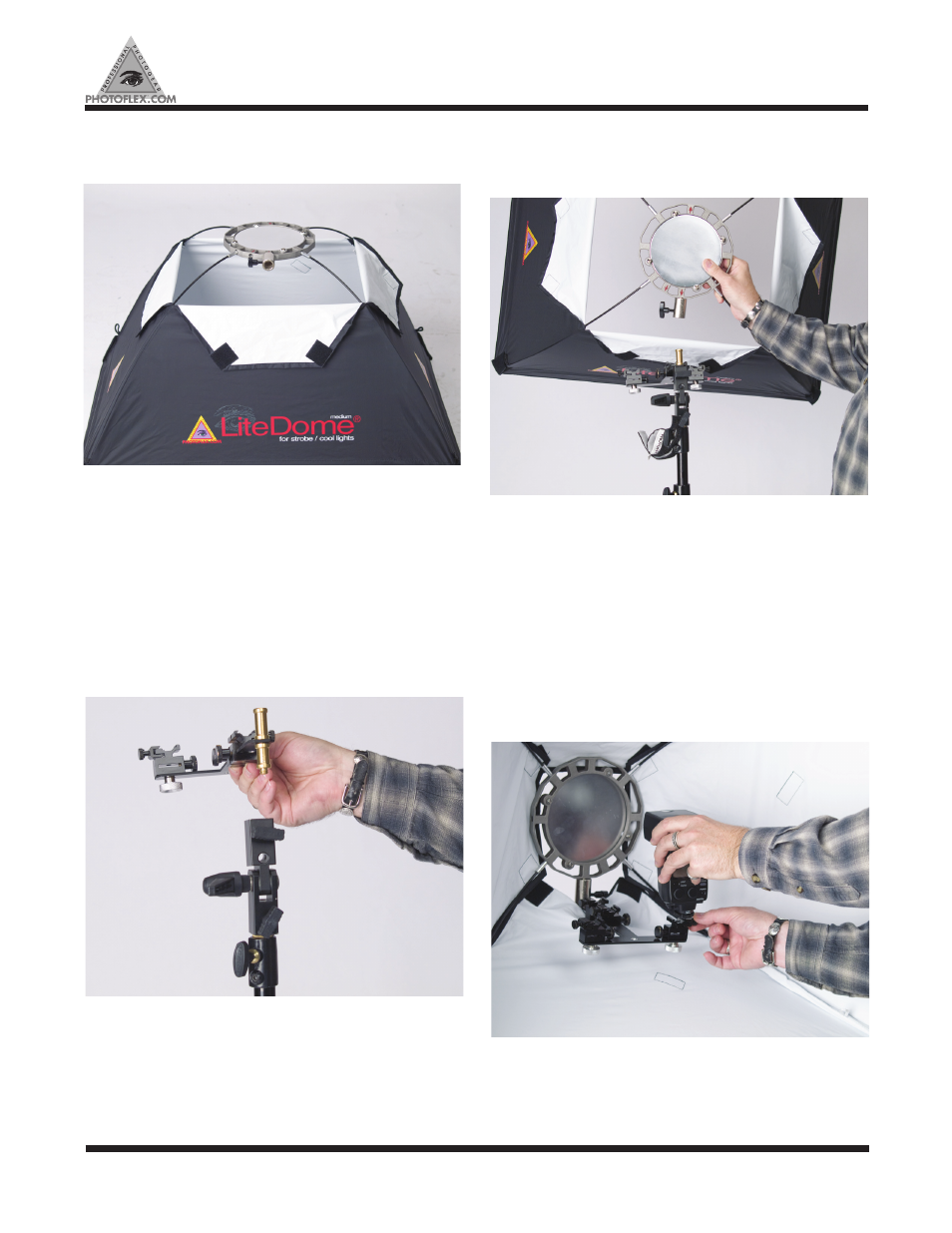

The softbox is now assembled. Note that the position of the

stud receiver will determine whether the softbox will be in a

vertical or horizontal position when in use. [Fig 15]

Also note that the interior baffle diffusion of the softbox must

be removed to allow room for the hardware and flash assem-

bly inside the softbox.

4. installing hardware to the

assembled softbox

As detailed in above umbrella assembly step 2 place the heavy

duty swivel onto your Litestand and tighten the set screw

securely. Then set the brass stud of the hardware assembly

into the swivel. [Fig 16]

Place the stud receiver of the softbox assembly onto the brass

stud of hardware now sitting on the heavy duty swivel. Make

sure that the hardware is extending inside the softbox. [Fig

17]

5. installing shoe mount flash

units

Make sure that the cold shoe mounts are securely attached

to the two ends of the T plate via their aluminum thumb screw

through the bottom of the T plate. Slide your flash unit onto the

cold shoe and securely tighten the set screw on the cold shoe.

always make sure that not only is the cold shoe set screw

tightened onto the shoe plate of the flash unit but also be sure

that you secure it also with flash units lever or tightening ring.

[Fig 18]

Figure 15.

Figure 17.

Figure 18.

Figure 16.
