StarLite ® QL | Instruction Manual • Item FV-BSL3200 / FV-BSLE3200
StarLite ® QL
The StarLite ® QL is features a quick locking design for quick
secure set up and tear down.
The StarLite ® QL comes with:
• StarLite ® QL Lamp Fixture
• Twist lock SwivelMount
• Power cord with 20 amp industrial switch
Safety Precautions
a. The StarLite QL is designed for use with a high heat
resistant SoftBox such as the Photoflex ® SilverDome ® NXT,
OctoDome ® NXT or MovieDome ® . Be sure that the SoftBox
thats you are using is rated for use with hot lights as you
could create a hazardous situation.
b. Do not operate the StarLite
® QL in moist or wet conditions as
this will create a hazardous situation.
c. Always turn off power and unplug the power cable before
changing lamps.
NOTE: We recommend that you assemble the SoftBox to the
StarLite ® OctoConnector. For instructions on assembly of your
particular SoftBox, refer to the instructions included with your
SoftBox or go to www.Photoflex.com for further details.
Step 1 – Assembly of the StarLite ® head to the twist lock
swivel
a. Slide the bottom of the StarLite ® head onto the receiving
channel of the twist lock SwivelMount
b. Securely tighten the set screw on the swivel to lock in place
Step 2 - Locking the StarLite ® head and swivel assembly to
the StarLite ® OctoConnector
a. With the SoftBox assembled and face down on a clean flat
surface; place the StarLite ® head over the connector,
matching the 3 metal posts on the head with the three
corresponding key holes.
b. Insert the StarLite
® head into the SoftBox connector and turn
clockwise to lock in place.
Note: the locking pin will click into place through the plate
confirming you have correctly assembled together.
Step 3 – Placing StarLite ® & SoftBox assembly onto your
LiteStand
a. With the StarLite
® head securely attached to the swivel and
the SoftBox, lift the assembly and place the 5/8 inch receiver
over the stud of your LiteStand
b. Set the receiver onto the stud making sure that it drops all
the way down and then tighten the set screw to properly
secure it.
c. Make sure that the twist lock handle is tightened securely
to prevent unwanted tilt before letting go of the assembly on
the LiteStand.

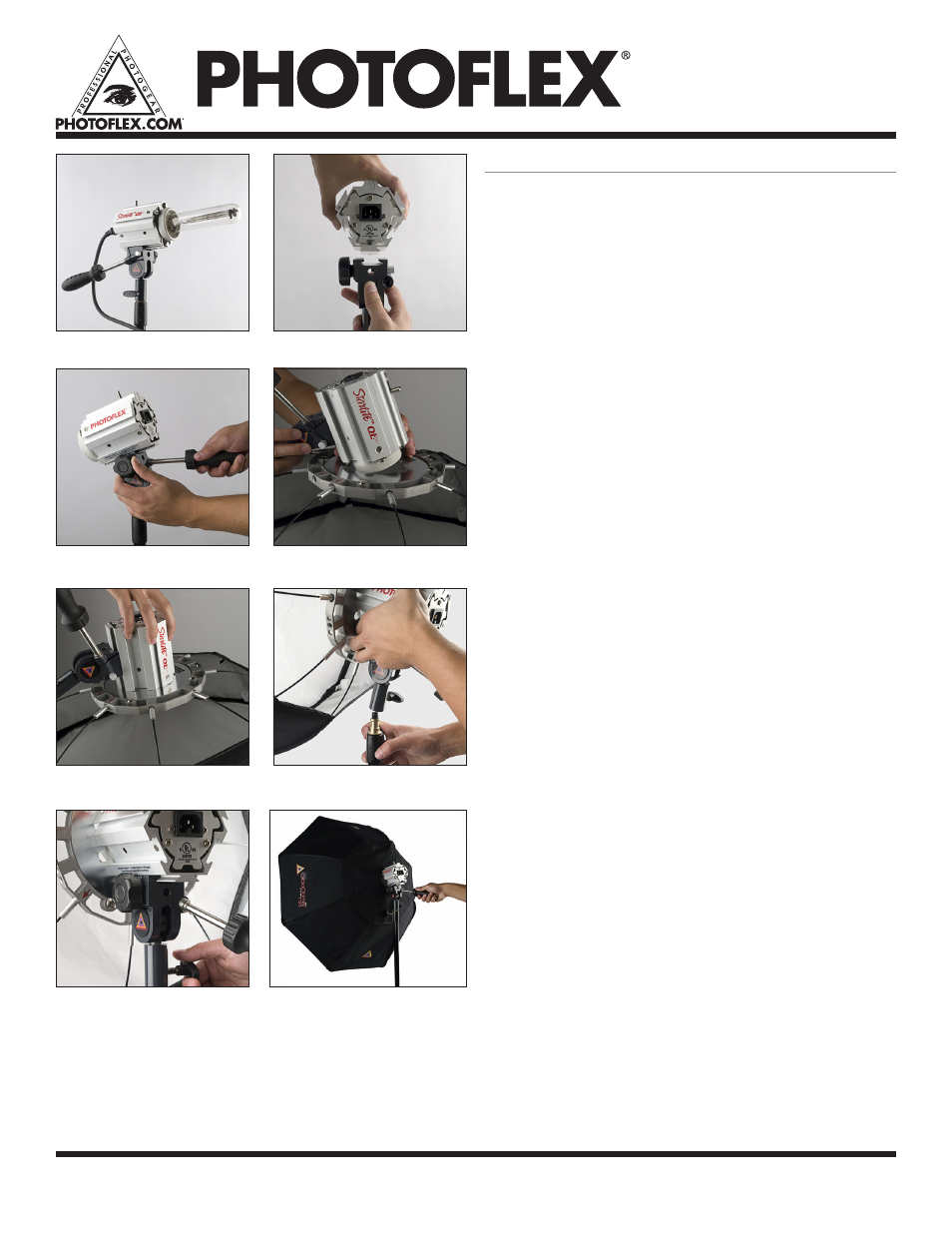

Step 1 Figure a StarLite ® QL
Step 1 Figure b
Step 3 Figure a
Step 2 Figure a
Step 2 Figure b
Step 3 Figure b Step 3 Figure c
