Photoflex AC-DUALSMKT DualFlash Adapter Kit - Manual (Page 3)

3
AC-DUALSM
For warranty registration and information, please visit www.photoflex.com
2. installing the heavy duty
swivel stand mount
Place the aluminum swivel on the top stud of your Litestand
and securely tighten in place. [Fig 4]
Place the lower umbrella shaft of your hardware assembly
into the top receiver of the aluminum swivel and securely
tighten in place. [Fig 5]
3. installing an umbrella
Loosen the umbrella set screw and insert the shaft of your
umbrella through the mounting hole. Tighten the set screw
securely on the umbrella shaft. [Fig 6]
4. installing shoe mount
flash units
Make sure that the cold shoe mounts are securely attached
to the two ends of the T plate via their aluminum thumb screw
through the bottom of the T plate. Slide your flash unit onto
the cold shoe and securely tighten the set screw on the cold
shoe. always make sure that not only is the cold shoe set
screw tightened onto the shoe plate of the flash unit but
also be sure that you secure it with the flash units lever or
tightening ring. [Fig 7]

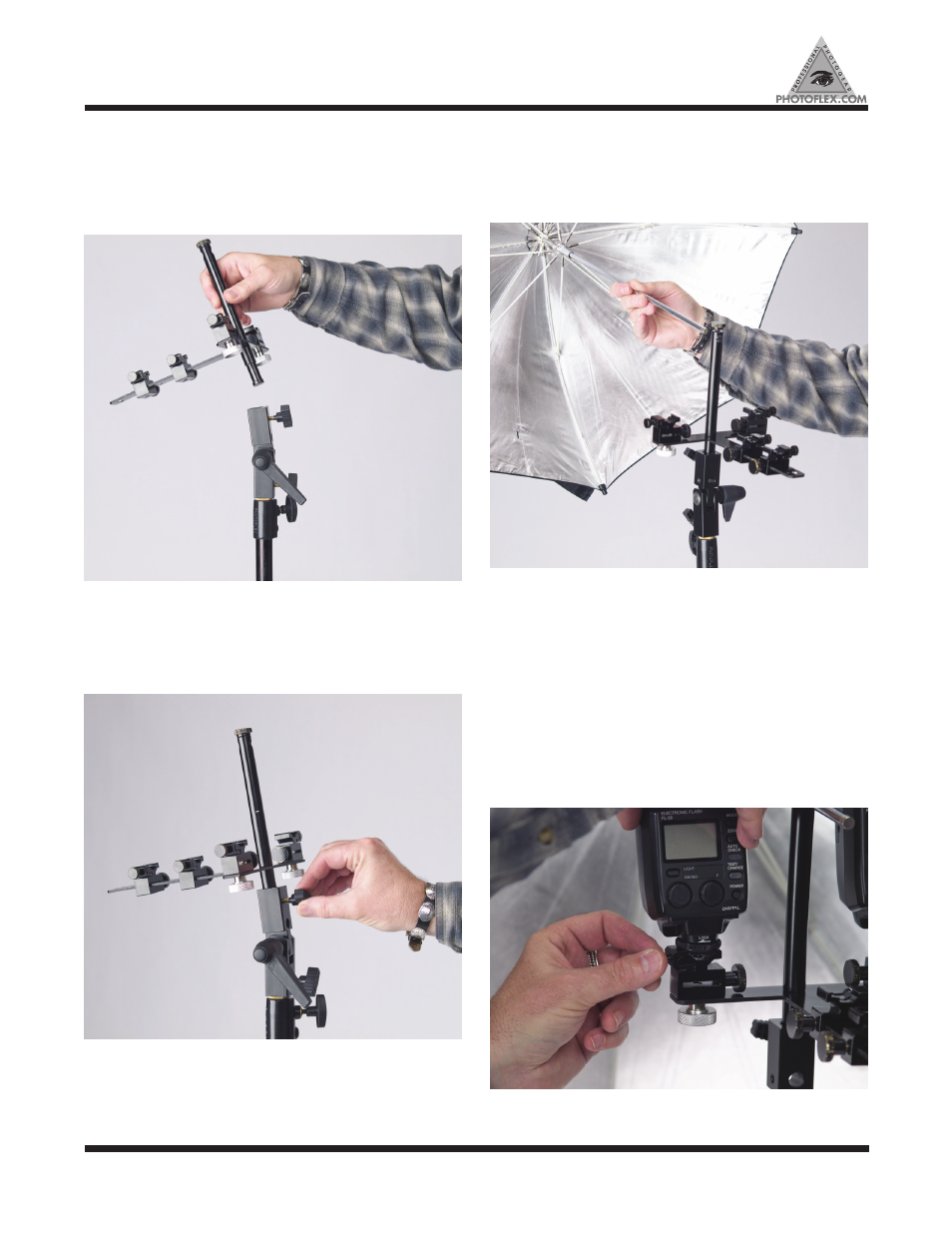

Figure 4.
Figure 5.
Figure 6.
Figure 7.
