Optical Fiber Camera Adaptor LS-700
Rear panel
Input the HD-Y component video signal or the composite video signal from a camera.
PROMPTER/REF.VIDEO OUT connector (BNC)
Outputs the HD-Y component or composite video signal input to the PROMPTER/REF. VIDEO IN
connector of the Base Station.
HD-Y/VIDEO IN connector (BNC)
Input the audio signal from a microphone, or a camera, etc.
SMPTE optical fiber cable connector and Cap
AUDIO IN 1/2 connectors (XLR 3-pin, female)
RET 1/2 HD-Y/VIDEO OUT connector (BNC)
Outputs the HD-Y component return video signal or the composite return video signal input to the
HD-Y/VIDEO RET 1 IN or HD-Y/VIDEO RET 2 IN connector of the Base Station LS-800.
Selects the output signal from the RET 1 IN or RET 2 IN connector by the RET 1/2 select switch( )
onthe main panel.
Connect to the Base Station LS-800 with an optical fiber cable.
Be sure to put the cap on the SMPTE optical fiber cable connector when the optical fiber cable isn t
connected.
TALLY OUT connector (BNC)
Outputs the Red and Green TALLY signals input to the TALLY IN connector of the Base Station LS-800.
TALLY signal Red : 5V
Green : 3V
OFF : 0V

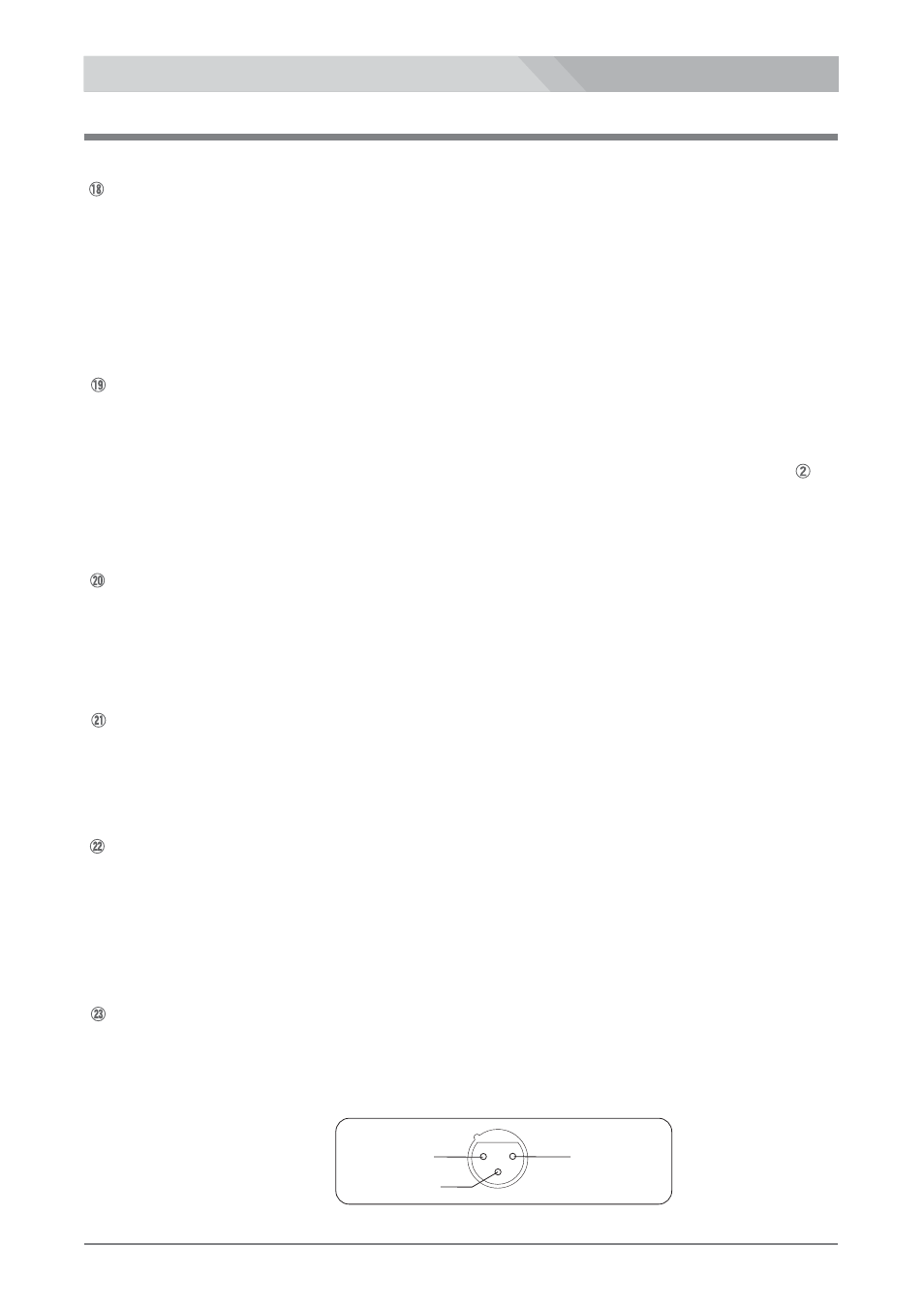

Pin assignment XLR 3-pin, female
1PIN : GND
2PIN : HOT
3PIN : COLD
