LS-800
13
Optical Fiber Base Station LS-800
Front panel
Turns on or off the 1kHz reference signal generator. The reference signal is output to the LS-700 and
used for adjusting the audio input level of the LS-700.
1kHz oscillator ON/OFF switch

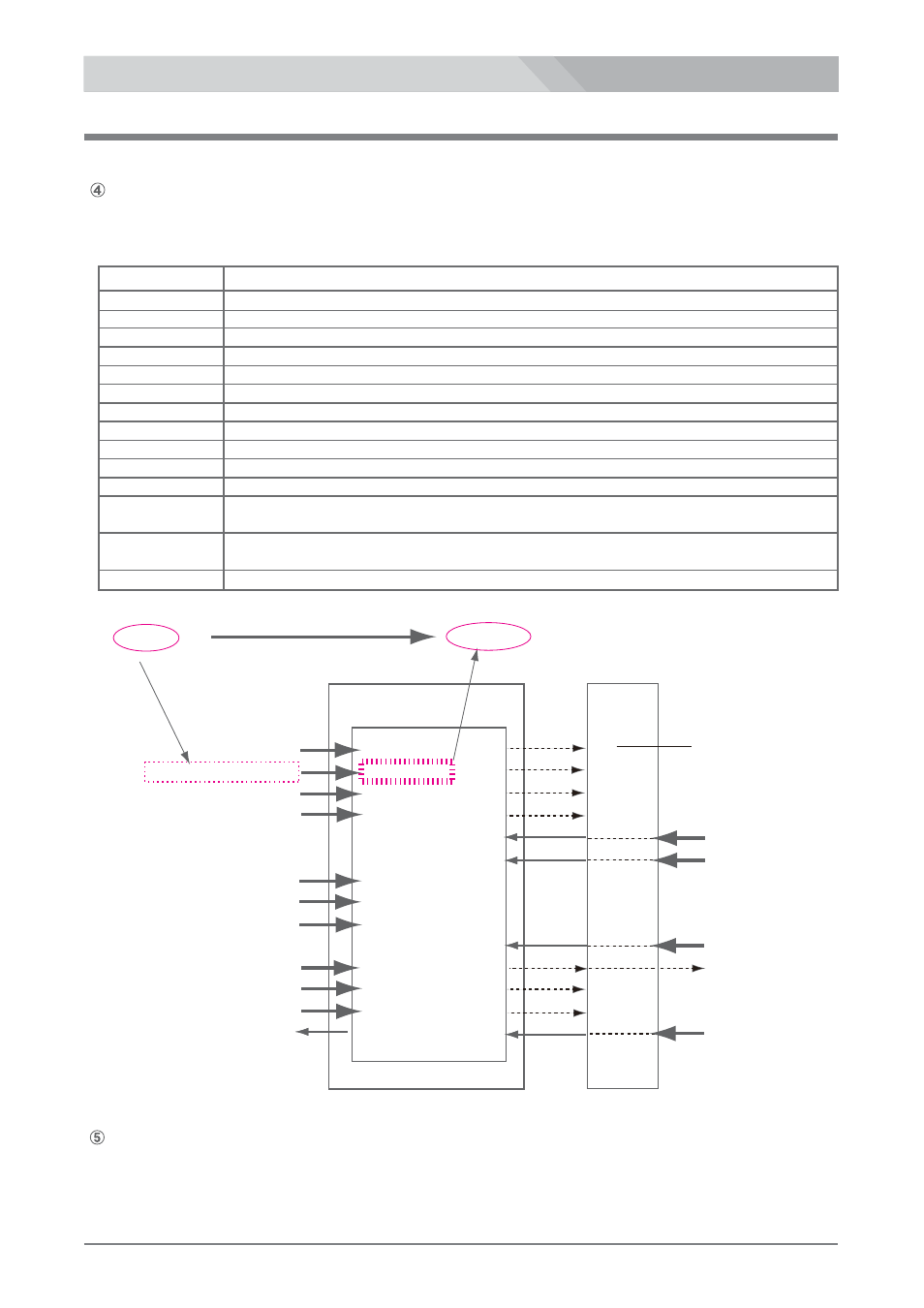

Each indicator lights up under the following states.
CABLE CONNECTOR Indicator (Status indicator)
Indication STATUS
SYSTEM Power is turned on and the system is operating.
HD-SDI IN1 3G/HD/SD-SDI signal is input to the RET HD-SDI IN 1 connector of LS-800.
HD-SDI IN2 3G/HD/SD-SDI signal is input to the RET HD-SDI IN 2 connector of LS-800.
PROMPTER IN Composite video signal is input to the PROMPTER/REF. VIDEO IN connector of LS-800.
HD-SDI OUT 1 3G/HD/SD-SDI signal is input to the HD-SDI IN 1 connector of LS-700.
HD-SDI OUT 2 3G/HD/SD-SDI signal is input to the HD-SDI IN 2 connector of LS-700.
RET IN HD-Y or composite video signal is input to the HD-Y/VIDEO RET 1or 2 IN connector of LS-800.
REF. IN GENLOCK reference signal is input to the REF. IN connector of LS-800.
TC IN Time code signal is input to the TC IN connector of LS-800.
HD-Y/VIDEO OUT HD-Y or composite video signal is input to the HD-Y/VIDEO IN connector of LS-700.
REMOTE Remote controller is connected and the remote control system is operating.
RET IN 1 HD-Y or composite video signal is input to the HD-Y/VIDEO RET 1 IN connector of LS-800 and
the RET 1/2 select switch of LS-700 is set to the position 1.
RET IN 2 HD-Y or composite video signal is input to the HD-Y/VIDEO RET 2 IN connector of LS-800 and
the RET 1/2 select switch of LS-700 is set to the position 2.
REMOTE VIDEO Composite video signal is input to the LS-700 and the remote control system is operating.
Indication
SYSTEM
HD-SDI IN 1
HD-SDI IN 2
PROMPTER IN
HD-SDI OUT 1
HD-SDI OUT 2
RET IN
REF. IN
TC IN
HD-Y/VIDEO OUT
REMOTE
RET IN 1
RET IN 2
REMOTE VIDEO
LS-800
LS-700
HD-Y or composite video signal
Reference(GENLOCK) signal
3G/HD/SD-SDI signal
Time code signal
Power
Power switch ON
System is operating
OPT
cable
Remote controller
to camera
3G/HD/SD-SDI signal
HD-Y or composite video signal
HD-Y or composite video signal
3G/HD/SD-SDI signal
3G/HD/SD-SDI signal
HD-Y or composite
video signal
Composite
video signal
input signal
to LS-800
input signal
to LS-700
lights up
input
