47

Adjustments and Settings for LS-800

2

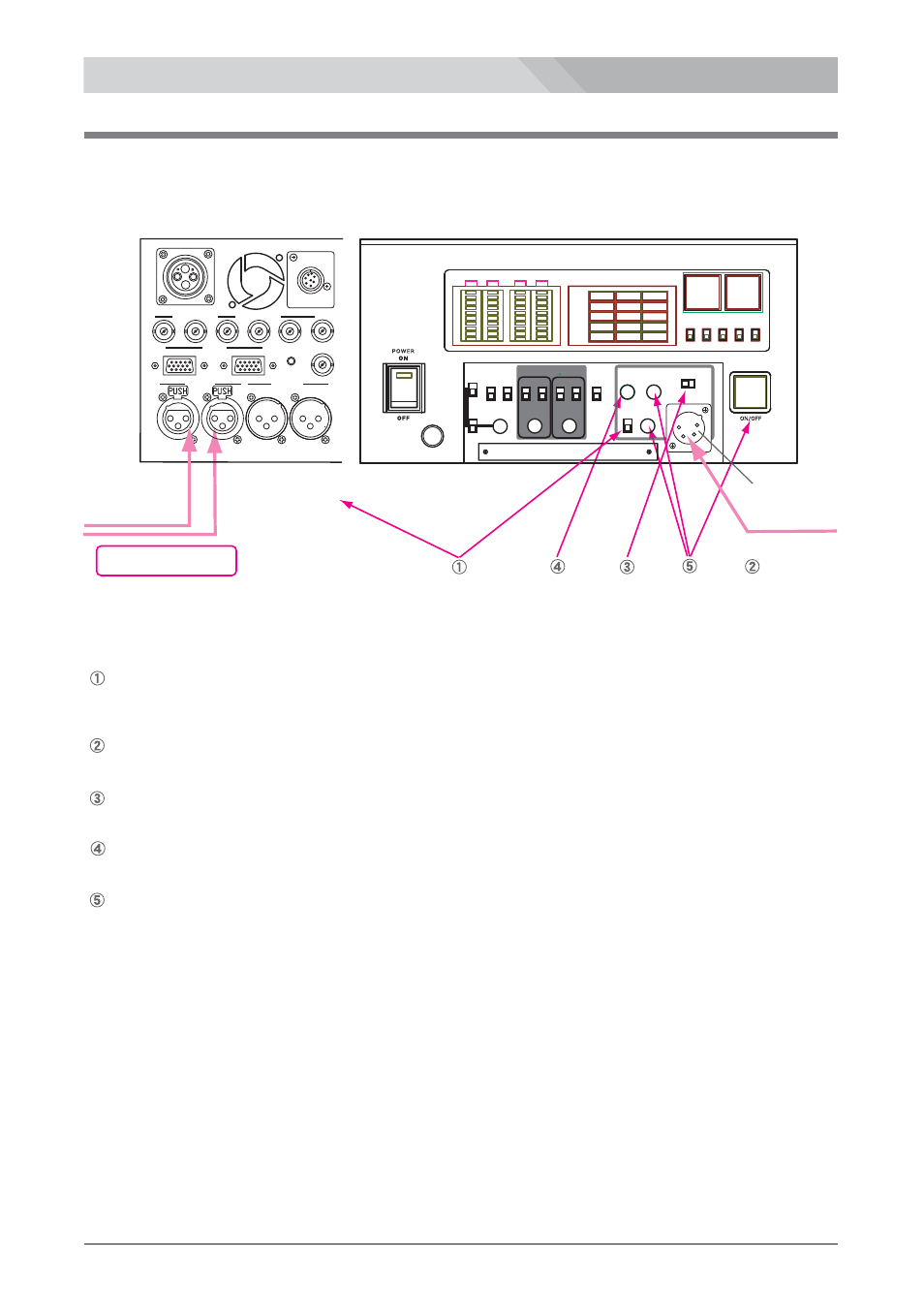

INTERCOM HEADSET adjustment and Setting

HEADSET
DL-400

INTERCOM

HEADSET

connector

LINE LINE

MIC

MIC

MIC

HP.VOL

HEAD SET

ENG

CA AUDIO

1

PGM AUDIO IN

PGM

PGM

INTERCOM

OFF

ON

1kHz

LMT

MIC

LMT

ST

CA

PGM

MONI

OUT

MONI.VOL

PGM INPUT

OPTICAL FIBER BASE STATION

MONI

SYSTEM

HD-SDI IN 1

HD-SDI 0UT 1

HD-SDI IN 2

HD-SDI 0UT 2

HD-Y/VIDEO IN

HD-Y/VIDEO OUT

VIDEO IN

REMOTE

REF.IN

RET IN 1

RET IN 2

LANC

TC IN

REMOTE VIDEO

OVER

OVER

OVER

OVER

1

2

3

4

5

TALLY

R

G

CABLE
CONNECTOR

CA AUDIO

2

SIDETONE

TALK

PROD

Input the PGM audio signal to the PGM AUDIO IN 1/2 connectors of LS-800.
Select the channel 1 or 2 by the PGM 1/2 select switch.

Put on a intercom headset DL-400

Select the producer line or engineer line by the PROD/ENG select switch.

Adjust the audio level of the PGM audio signal by the PGM volume control.

Turn on the TALK switch, and adjust the headphone and sidetone level
by the INCOM HP. volume control and SIDE TONE volume control.

LANC

TALLY

OPT

HD/SDI OUT 1

IN

OUT

HD-Y/VIDEO

OUT

HD/SDI IN1

HD/SDI

RET

1

2

1

2

AUDIO IN

CA

AUDIO OUT

PGM

from
switcher,
audio mixer,
etc.

PGM audio signal

(rear panel)

(front panel)

LS-800

Optical Fiber Camera Adaptor LS-700/Optical Fiber Base Station LS-800
