Page 10: Optical fiber camera adaptor ls-700

LS-700
10
Optical Fiber Camera Adaptor LS-700

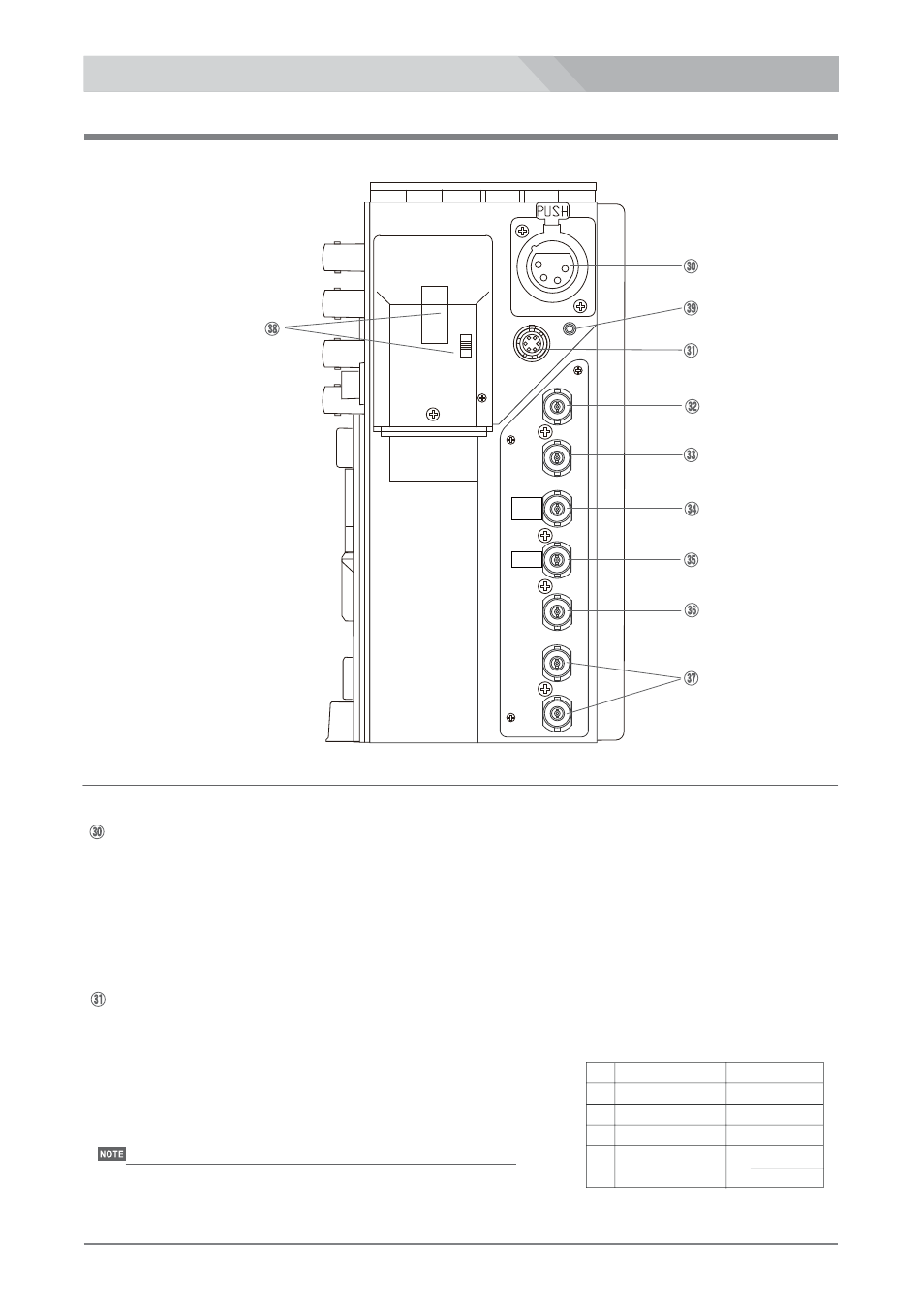

Side connector panel
Outputs the DC 15V power(MAX 3A).
Maximum output power is 75W in total of the power from the DC OUT 15V connector and the power
consumption by a camcorder from the V-shoe battery adaptor.
DC OUT 15V connector (XLR 4-pin, female)
Connect to the PROTECH monitor with the 6-pin cable(VC-450).
The RET video composite signal, DC 12V power and the tally
signal are supplied to the monitor.
IF OUT connector (6-pin, female)
1 GND
2 +12V OUT 約650mA
3 NC
4 RET VIDEO IN 1 V p-p
5 TALLY OUT 0V=ON
6 NC
IF OUT connector(6-pin)
Pin assignment
For the use of the supplied 6-pin cable(VC-450) only.
IF OUT
RET
HD-SDI
OUT2
HD-SDI
IN2
REF.
OUT
HD-SDI
IN1
RET
HD-SDI
OUT1
LANC
TC
IN
TC
OUT
DC OUT 15V (MAX3A)
▲
OFF
H
L
