AR/GE/FE/U 80/80X Installation Manual
15 580­00519 rev. D
3. Course align azimuth (i.e. side­to­side or
horizontal) and tighten 4 carriage bolts to
secure pole mounts.
4. Loosen the 4 azimuth lock bolts.
5. Adjust eyebolt length using a 9/16” open­
end wrench to required location.
6. Secure the 4 azimuth lock bolts (tighten
untl lock washers are flattend).

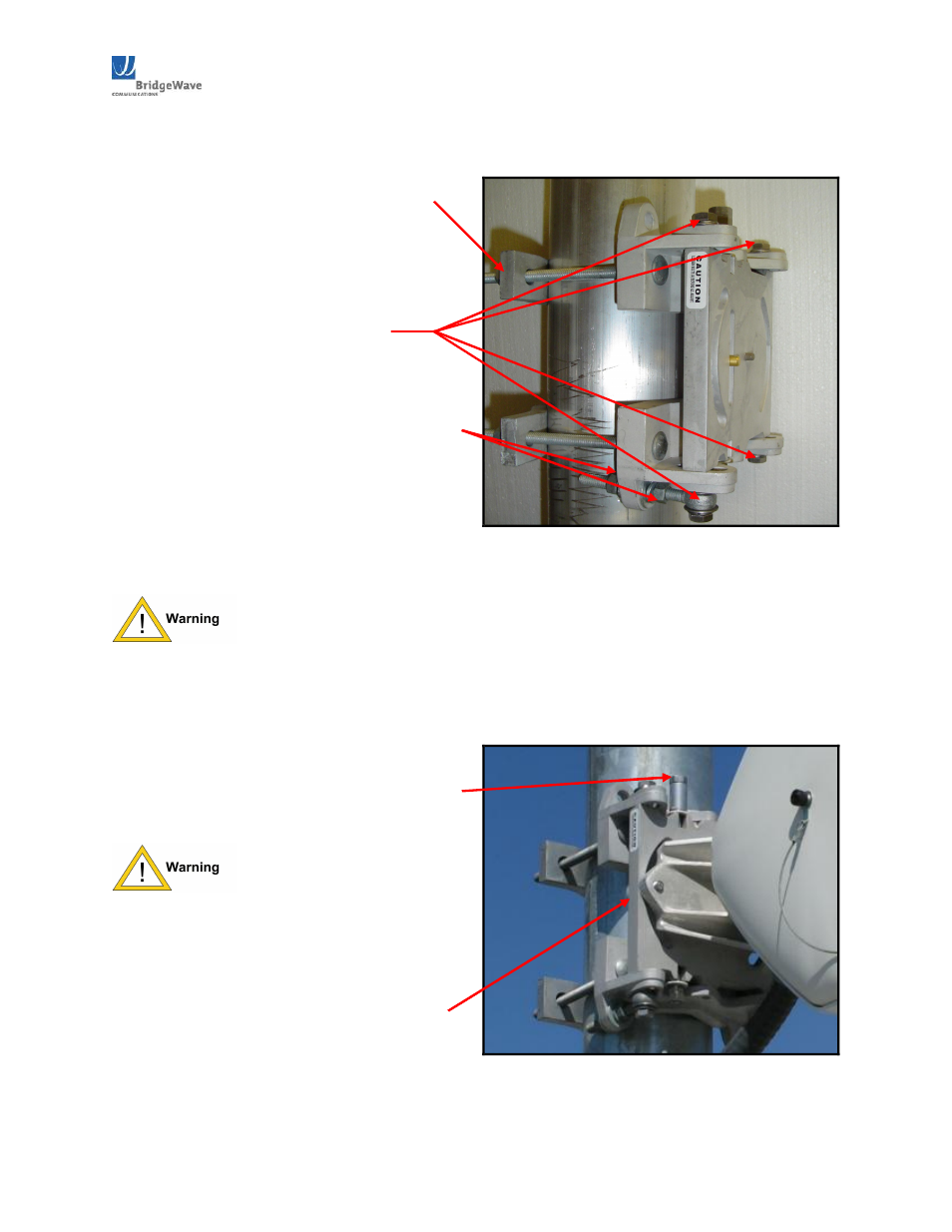

Figure 3.6­3: Azimuth adjustment bolts
(Note: Antenna not shown for clarity)
It is very important that the azimuth bolts are tightened before any elevation
adjustment is attempted. The very narrow beam width of these antennas (0.4º and 0.9º) makes it
necessary to completely tighten the bolts of the azimuth adjustment while adjusting the elevation
and vice versa.
7. Loosen the 2 antenna mounting bolts
8. Rotate elevation fine adjust hex nut as
required to set correct elevation (i.e. up­down
or vertical).
Do not try to adjust the
elevation fine adjust bolt without first
loosening the antenna bolts (step 7). Doing so
may damage the brass elevation adjustment
pin.
9. Tighten the 2 antenna mounting bolts after
correct elevation is set.
Figure 3.6­4: Elevation fine adjustment
