BridgeWave AR80 - Manual (Page 17)

AR/GE/FE/U 80/80X Installation Manual
12 580­00519 rev. D
Confirm that the mount is centered as shown.
Tighten bolts securly.

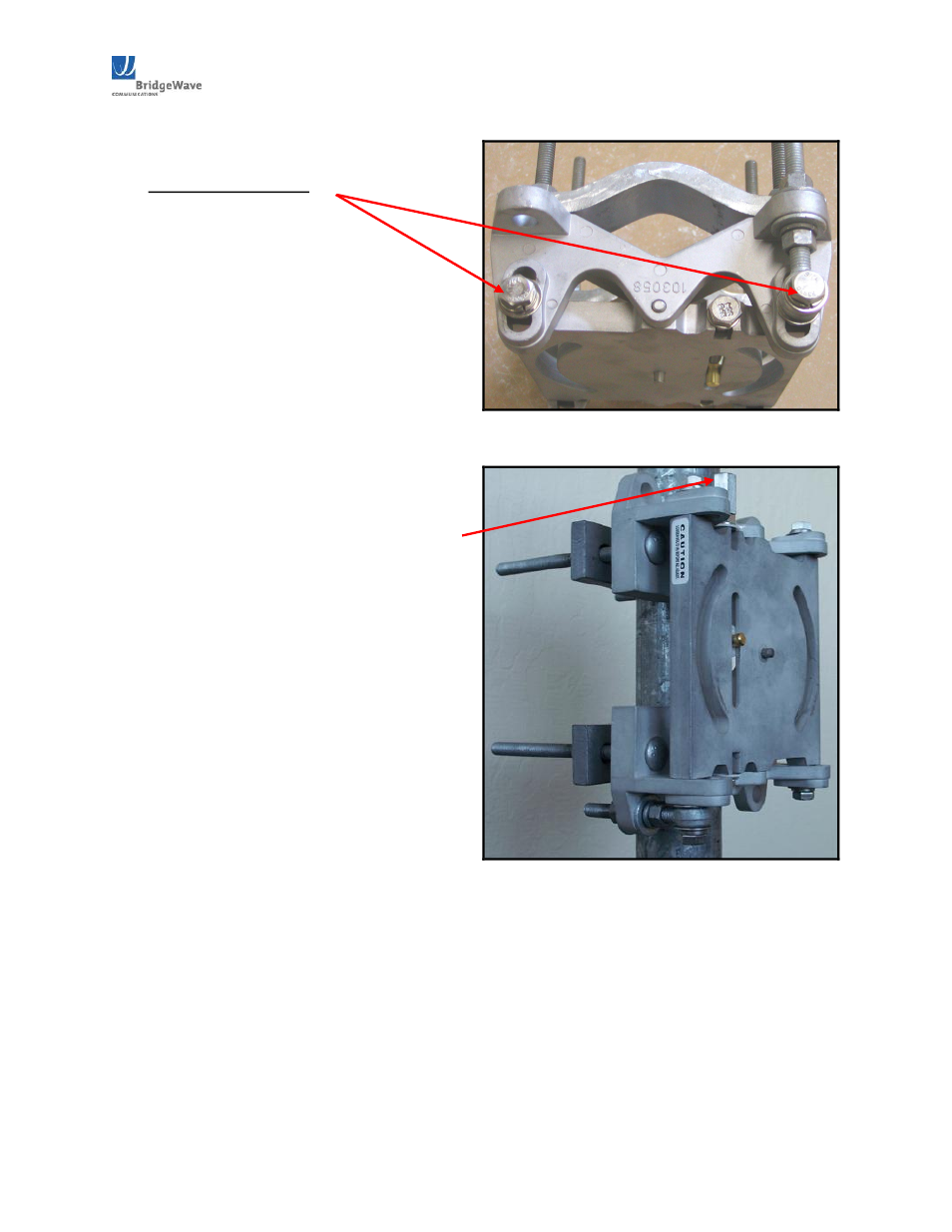

Figure 3.5­3: Lower pole mount attached to antenna
mounting plate
3. Completed installation of pole mount with
right hand offset for the antenna.
Note the position of the elevation fine adjust
hex nut.
The pole mast (not supplied) must be 3.5 to
4.5 inch (89 to 114mm) O.D. SCH40 steel
pipe or equivalent.
Figure 3.5­4: Pole mount with right hand offset
