AR/GE/FE/U 80/80X Installation Manual
13 580­00519 rev. D
1. Optional left hand antenna offset mount
preparation:
· Remove azimuth bolts
· Rotate the antenna mounting plate 180º
· Replace azimuth bolts
· Tighten azimuth bolts
Note the position of the elevation fine adjust
hex nut.

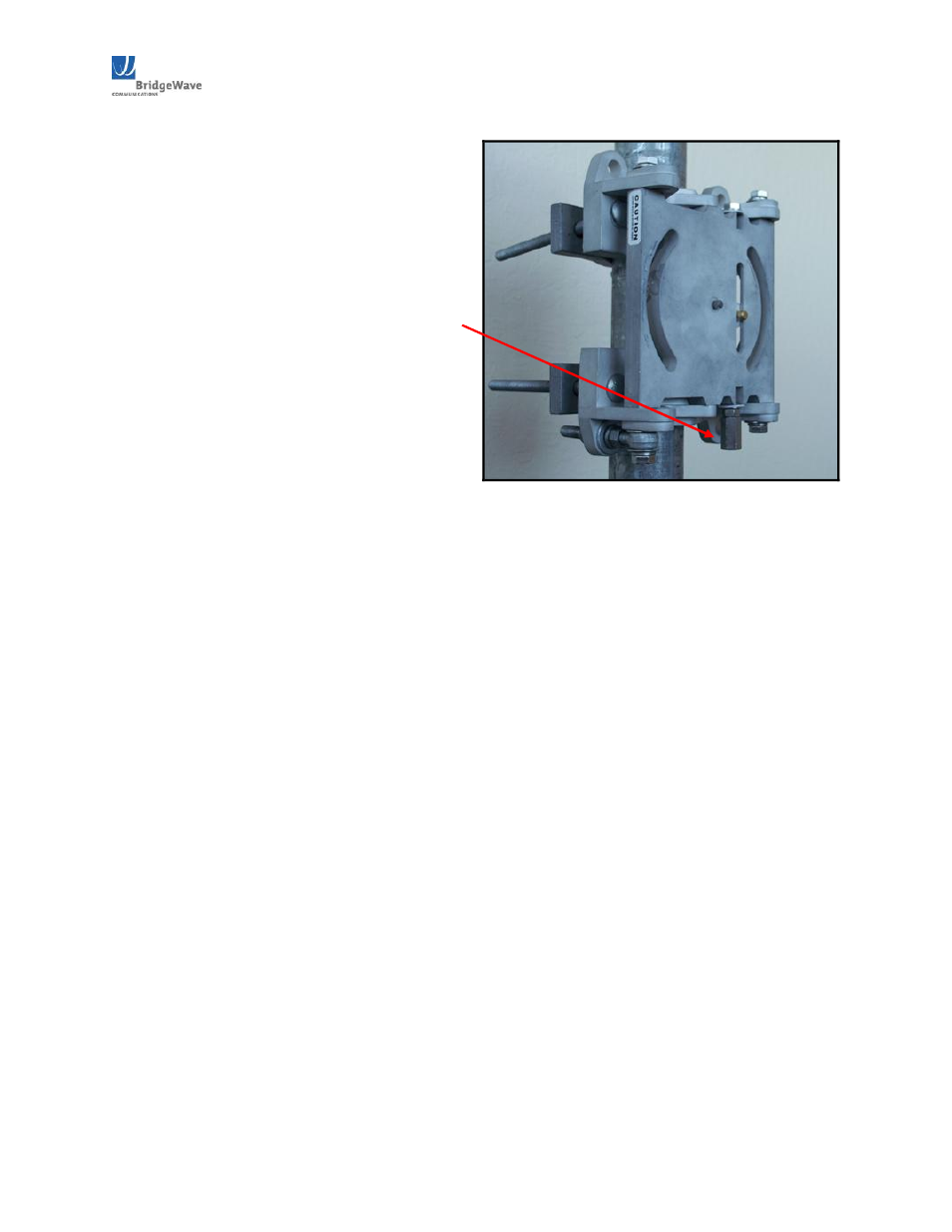

Figure 3.5­5: Pole mount with optional left hand
offset
