53 E-flite Deuces Wild Assembly Manual

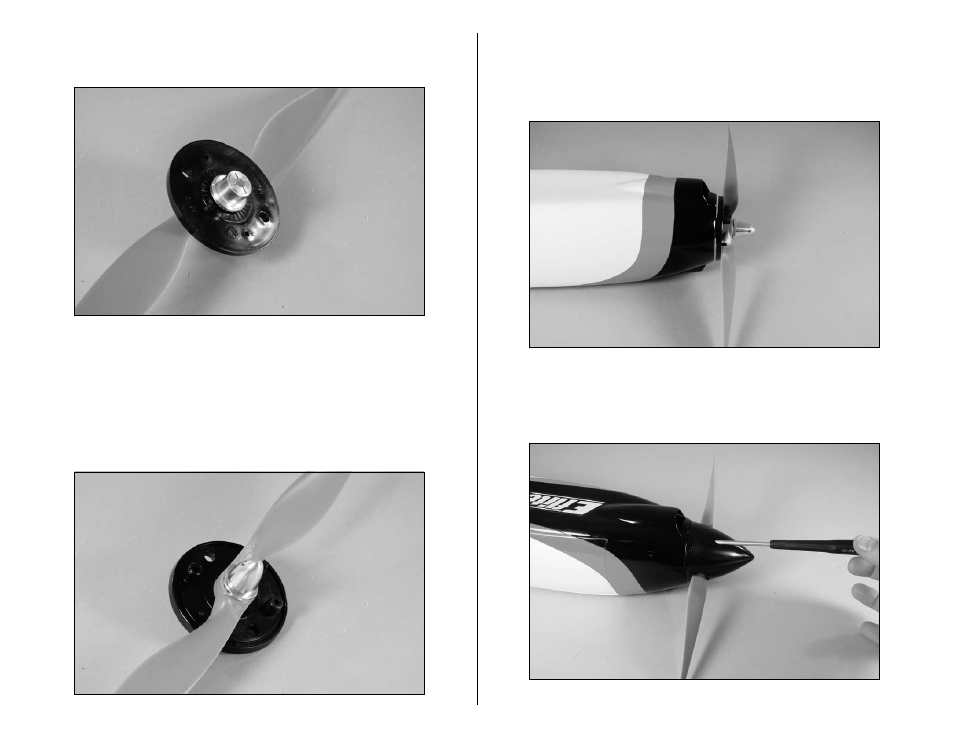

 1. Pass the adapter for your motor into the spinner
backplate. Slide the propeller onto the adapter.
Note: It may be necessary to relieve the back opening
in the spinner back plate to accept the E-flite prop collet.
We use a rotary tool with a high speed bit to accomplish
this.
 2. Thread the adapter nut onto the adapter, but do not
tighten the nut at this time.
 3. Slide the adapter assembly onto the motor shaft.
With a gap of 5/64-inch (2mm) between the spinner
backplate and front of the nacelle, tighten the adapter
nut to secure the adapter to the motor shaft.
 4. Use a #1 Phillips screwdriver to tighten the two 3mm x
10mm self-tapping screws that secure the spinner cone to
the spinner backplate.
