35 E-flite Deuces Wild Assembly Manual

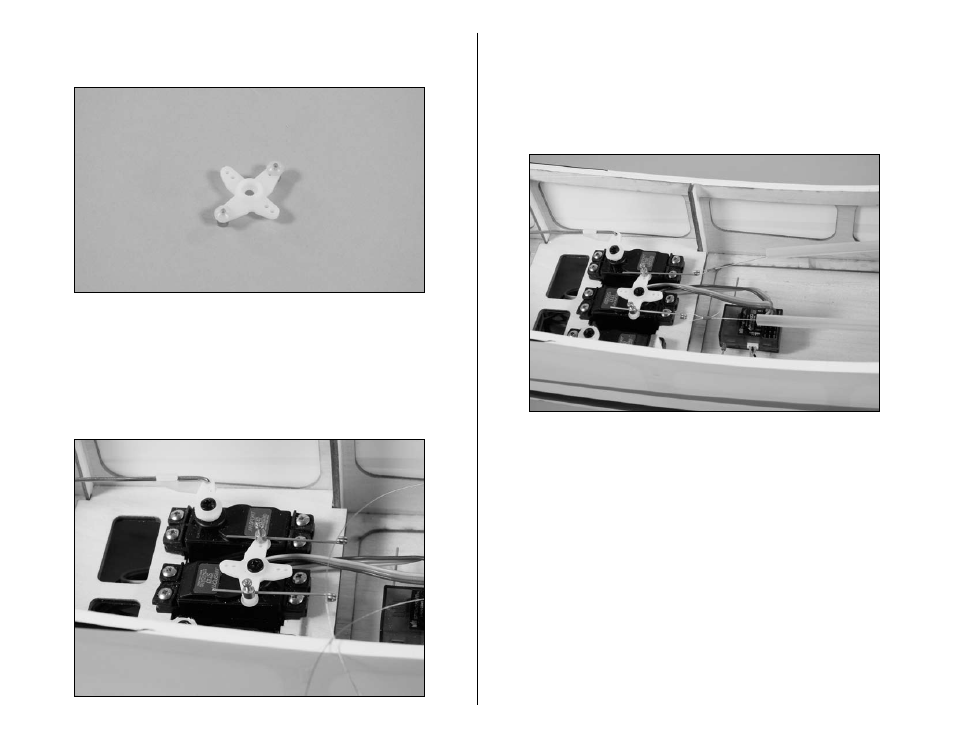

 13. Secure the connectors to the servo horn using a
nylon connector backplates.
 14. Center the steering servo using the radio and secure
the steering servo arm to the steering servo. Slide the
cable fittings into the pushrod connectors and temporarily
secure them using two 2mm x 8mm machine screws and
a #1 Phillips screwdriver. Ensure you set the cable fittings
so they are equal to each other when installed.
 15. Slide a crimp onto the steering cable, then pass the
cable through the cable fittings. The cable will then go
through the crimp. Prepare both cables before crimping
the connectors. This will allow you to tensions the cables
lightly and center the nose gear before compressing the
crimps. Use side cutters to trim any excess cable.
Note: You do not want the steering cables to be real
tight. This will cause your nose gear to not lock down
during extension. These should be a small amount of play
in the steering cables (approximately 1 degree left and
right on the nose wheel) to ensure correct operation.
