40 E-flite Deuces Wild Assembly Manual

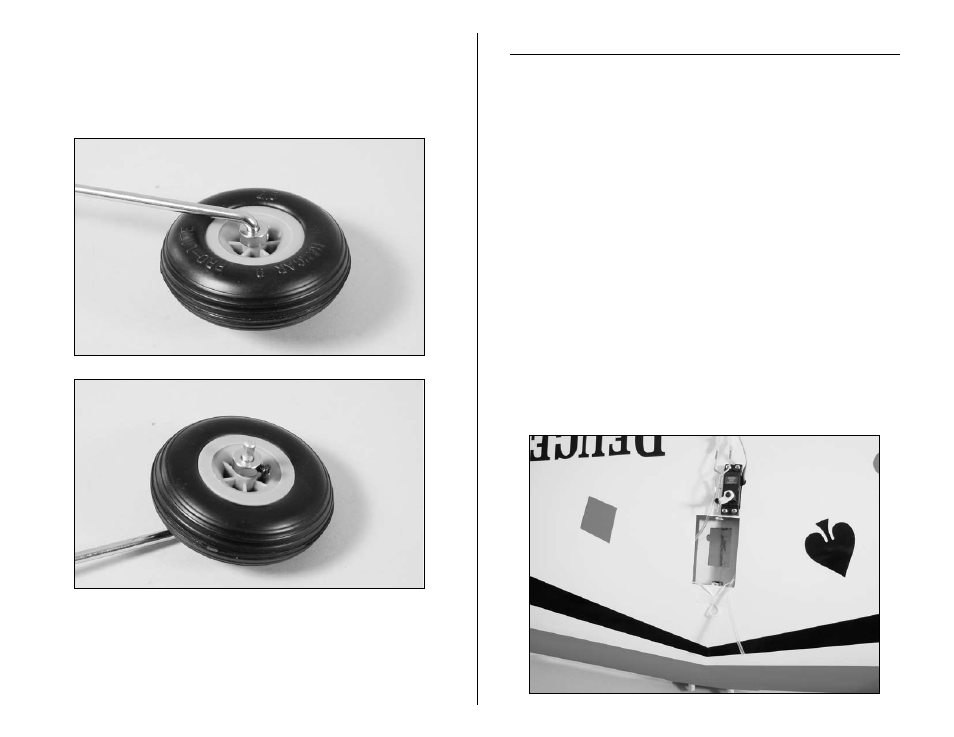

 29. Slide a 3/16-inch wheel collar without a screw onto
the main gear wire, then the wheel. Use a 3/16-inch
wheel collar to secure the wheel on the retract strut. A
#2 Phillips screwdriver is used to tighten the screw that
secures the collar to the axle.
Note: The wheel is shown on the building surface for
clarity and contrast.
 30. Repeat Steps 21 through 29 to install the remaining
main gear retract.
Retract Servo Installation
Required Parts
Wing center section Actuator valve
Plywood valve mount Nylon clevis
Clevis retainer 3-inch (76mm) pushrod
Air line Air line T-fitting (2)
Brass pushrod connector Connector backplate
Tie wrap (4) Servo w/hardware
3mm x 5mm machine screw Plywood servo tray
Quick disconnect (male and female)
Required Tools and Adhesives
Scissors Pencil
Pin drill Side cutters
Mixing cups Mixing sticks
6-minute epoxy Medium CA
Thin CA Phillips screwdriver: #1
Low-tack masking tape Threadlock
Drill bit: 1/16-inch (1.5mm), 5/64-inch (2mm)
 1. Use 6-minute epoxy to secure the retract servo tray in
the wing as shown.
