Banner RP-RM83F Rope Pull Switches - Manual (Page 9)

88 mm
(3.5")
53 mm
(2.1")
20.5 mm
(0.80")
26 mm
(1.0")
30.5 mm
(1.20")
m20 x 1.5
40 mm
(1.6")
max. 282 mm / min. 237 mm
(max. 11.1" / min. 9.3")
127 mm
(5.0")
10 mm
(0.4")
85.5 mm
(3.37")
8 mm
(0.3")
90 mm
(3.5")
72 mm
(2.8")
78 mm
(3.1") 48 mm
(1.9")
Ø 6.5 mm
x 4
(0.26")
Ø 5.4 mm
x 4
(0.21")
Ø 36 mm
(1.4")
20.5 mm
(0.80")
SW17

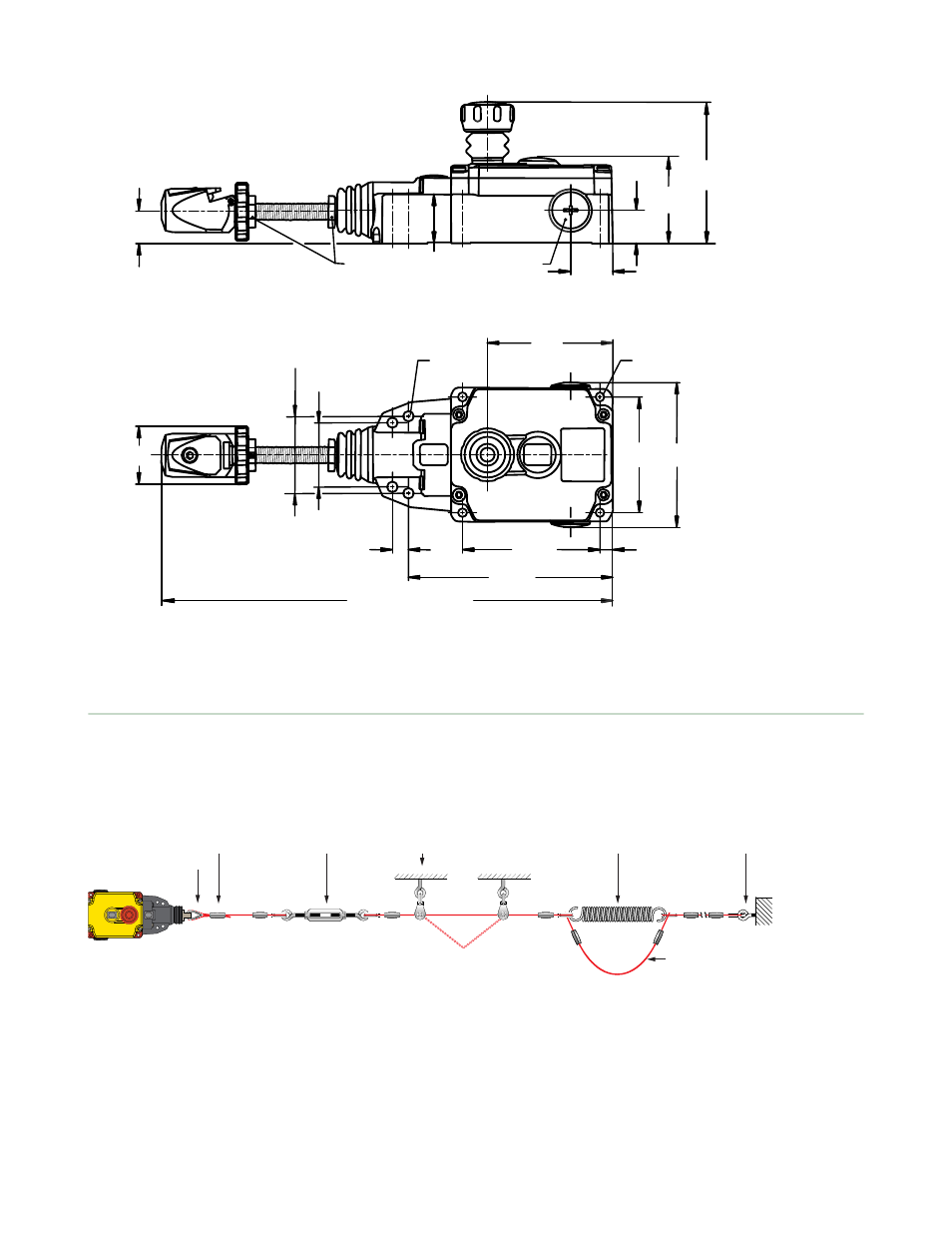

Figure 14. RP-RM83F-..LT..
Accessories
Spring breakage
protector cable
Thimble
Clamp Turnbuckle Spring Eye Bolt Pulley
Figure 15. Wire Rope Assembly Components
RP-RM83F Heavy-Duty Rope Pull Emergency Stop Switches
P/N 141245 Rev. C www.bannerengineering.com - tel: 763-544-3164 9
