Banner Compact Plastic Style Safety Interlock Switches User Manual

Page 9

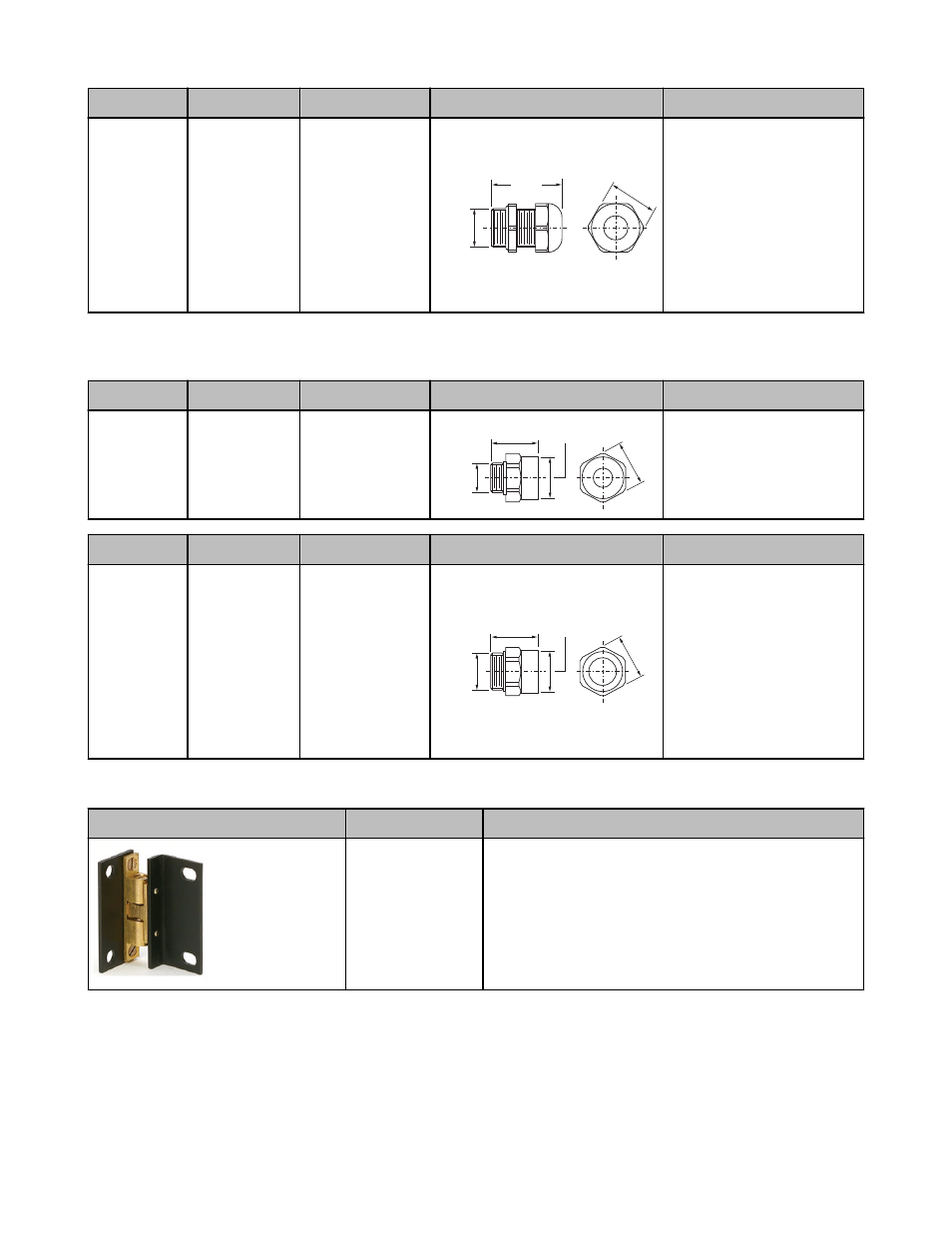

Model

Size

For Cable Diameter Dimensions

Used With

SI-QS-CGM20 M20 × 1.5 Plastic

5.0 to 12.0 mm
(0.20" to 0.47")

M20 x 1.5

25.0 mm

(0.98")

37.0 mm

(1.46")

SI-QS90 Safety Interlock
Switches
SI-LS100 Safety Interlock
Switches
SI-LS31 Safety Interlock
Switches
SI-LS42 Safety Interlock
Switches
RP-LS42 Rope Pull Switches

Conduit Adapters
One conduit adapters is supplied with each switch.

Model

Size

Thread Conversion Dimensions

Used With

SI-QS-M16

½"-14 NPT Plas-
tic

M16 x 1.5 to ½"-14
NPT

24.0 mm

(0.94")

25.0 mm

(0.98")

M16 x 1.5

1/2"-14 NPT

Internal Thread

SI-QS75 Safety Interlock
Switches
SI-LS83 Safety Interlock
Switches

Model

Size

Thread Conversion Dimensions

Used With

SI-QS-M20

½"-14 NPT Plas-
tic

M20 x 1.5 to ½"-14
NPT

25.0 mm

(0.98")

M20 x 1.5

24.0 mm

(0.94")

1/2"-14 NPT

Internal Thread

SI-QS90 Safety Interlock
Switches
SI-LS100 Safety Interlock
Switches
SI-LS31 Safety Interlock
Switches
SI-LS42 Safety Interlock
Switches
RP-LS42 Rope Pull Switches

Misc

High Force Adapter

Model

Application

SI-QS-100

High-force accessory for in-line actuator SI-QS-SSA. Provides
additional holding force for particularly heavy doors, gates, or
guards. Adjustable from 50 to 100 Newtons (force). Used only for
switches with in-line actuator SI-QS-SSA.

Machine Safety Switches

P/N 049370 Rev. F
