Page 7

- 7 -

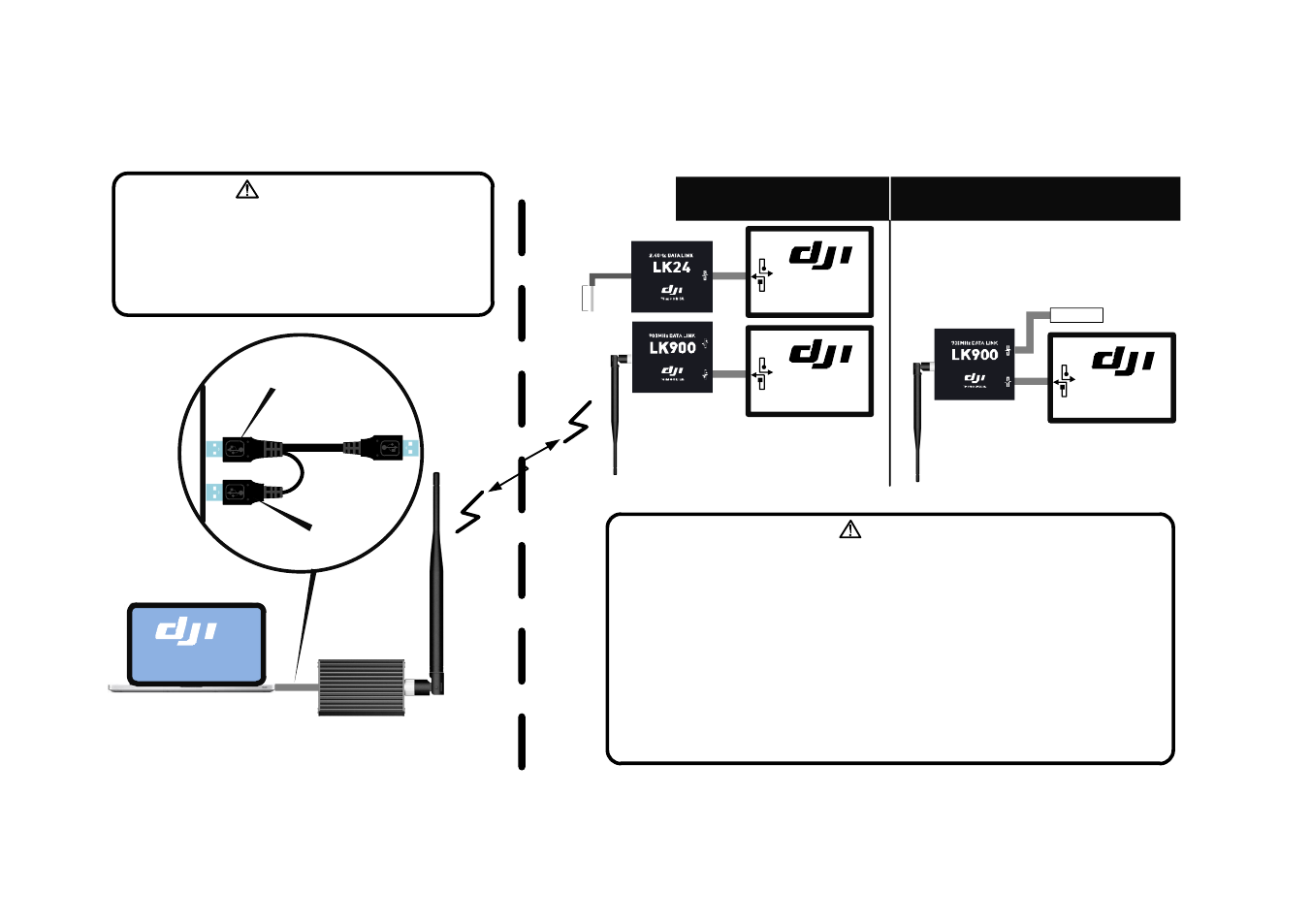

Connection

Antenna

Head

Ground End

You should have a DJI Ground Station installed laptop.

Use the USB Cable supplied by us to connect the

wireless data-

link ground end to you laptop. One end of the USB cable has two
heads, make sure the communication interface is plugged into
your laptop. If the power supply is insufficient using one USB port,
then plug the power interface Into the laptop also.

Air End

900MHz wireless data-link air end has two CAN ports. When you use it with ACE flight control

system and low voltage servo, you should connect one CAN port to spare CAN port on

autopilot system, and connect another one to a battery whose output voltage is in the range

of wireless data-link air end working voltage.

2.4GHz wireless data-link air end has only one CAN port.

Usually connecting one CAN port on air end to any spare CAN port on DJI flight control

system is enough. Note that A2 uses should use CAN2 port.

WKM user should use it with PMU.

High voltage servos & FBL systems can drain the flight battery fast. Please make sure your

flight pack is sufficient for the flight time intended.

Make sure the antenna head of Wireless data-link air end is erect down, then you can have

the largest range.

Any spare CAN

port on DJI flight

control system

Battery

ACE flight control system, low voltage

servo and 900M data-link connection

Normal connection with

flight control system

Any spare CAN

port on DJI flight

control system

Any spare CAN

port on DJI flight

control system

Communication Interface

Power Interface

Ground Station
