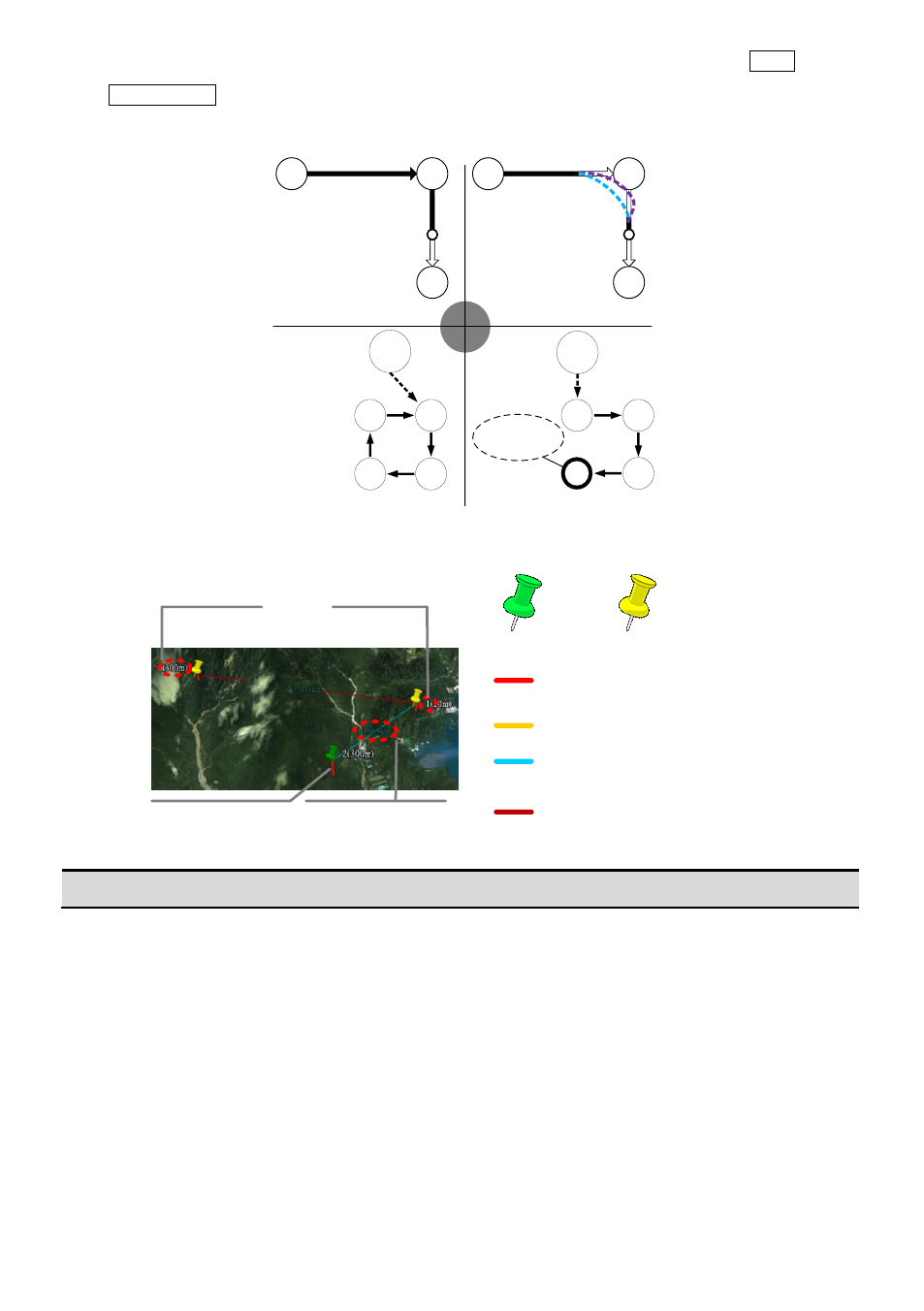

Examples for Mission/Way Point properties setting: B1/B2 Selection for the state of Route, and

StartWayPoint.

0

1

2

Initial

Position

3

0

1

2

Mission properties:
Route :
Continuous
StartWayPoint : 1

Stop here,

and stay hovering

3

Way point 1: Stop and Turn

0

1

2

0

1

2

Way point 1:

Bank_Turn

Adaptive_Bank_Turn

Bank_Turn: The aircraft
will keep the speed when
turning, so it will deviate
from its route.

Adaptive_Bank_Turn: The
aircraft will slow down so
as to follow the route.

B2

B1

A2

A1

Mission properties:
Route :
Start_to_End
StartWayPoint : 0

Initial

Position

Examples for path of way point:

Point-to-Point distance

between two way points

Way point altitude

Index number of way point

Under editing

Not selected

Projection line of way

point, not to scale

Way point

Path Color Before Mission Execute

After mission checked. If collision happens
between way point path and mountain, these
path will be shown as red;

Path Color During Mission Execution

All the paths including way point index will be
shown as dark red during mission execution.

If path distance longer than 10 km, it will be
shown as yellow.

Blue one is normal.

Mission Save & Load
