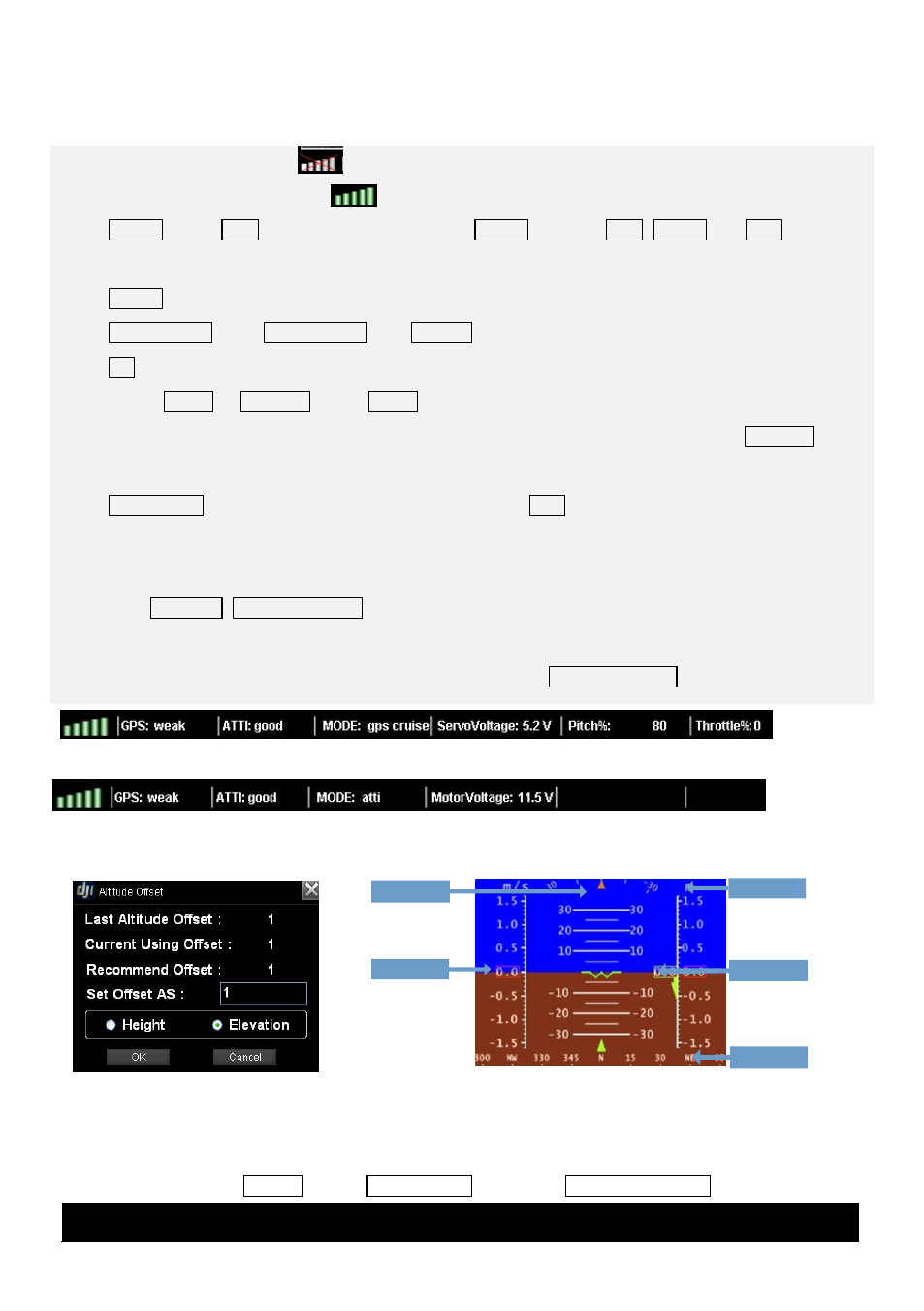

background image

©2012-2014 DJI. All Rights Reserved.

- 14 -

Fig①A ACE

1 View Mode

1.1 View Mode Procedures

1.

Check Signal Strength:

shows no communication between GS and MC, please check

Troubleshooting in Appendix.

is constructed, can go to next step.

2.

Aircraft: When GPS signal is good enough, click Aircraft will show LATI, LONGI and ALTI of aircraft,

then the aircraft logo will be showed on the map; if the aircraft logo can’t be found, please double click

Aircraft.

3.

AltitudeOffSet: Click AltitudeOffSet from Sys_set, you can just use the value recommended, and click

OK. Read the paragraph below to get more details.

4.

Switch Height or Elevation Mode: Height mode shows relative height, and the 0 meter is the aircraft

height when you choose Height mode, above 0 is positive and below 0 is negative. Elevation mode

shows height above sea level, figure is showed in Fig

5.

Home Point: Home point can be found only when GPS signal is good enough. If WKM/A2/

NAZA-M/NAZA-M V2/Phantom 2, Home Point is 20 meters above the aircraft position where user

pushes the throttle stick first time; while ACE is 30 meters.

6.

View Fly Trace, Instrument Board and State Information: For displaying flight track and aircraft state.

Contents are decided by flight control system. Fig①A will be displayed if you are using ACE; Fig①B will

be displayed if WKM/A2/NAZA-M/NAZA-M V2/Phantom 2. Instrument Board is showed in Fig③.

1.2 System Setting

System Setting includes Options Setting, Altitude Offset Setting and Data Record Folder.

(1)Options

Fig

Compass

Real-time

Vertical speed

Real-time

Altitude

Real-time

Ground speed

Real-time

Attitude

Fig①B WKM/A2/NAZA-M/NAZA-M V2/Phantom 2

Fig
