Page 21

- 21 -

 Technology Requirements



At least 4 linear control channels are necessary; otherwise the joystick function will not work

properly.



Use USB connection.

 Connection

JoystickChoose Joystick

Refer to the user manual of the specific controller / Joystick you choose, and ensure the USB cable is properly

connected.

Notices:

Please

ENSURE

the Joystick is properly connected physically, do not disconnect the joystick

connection when Joystick Mode is activated.

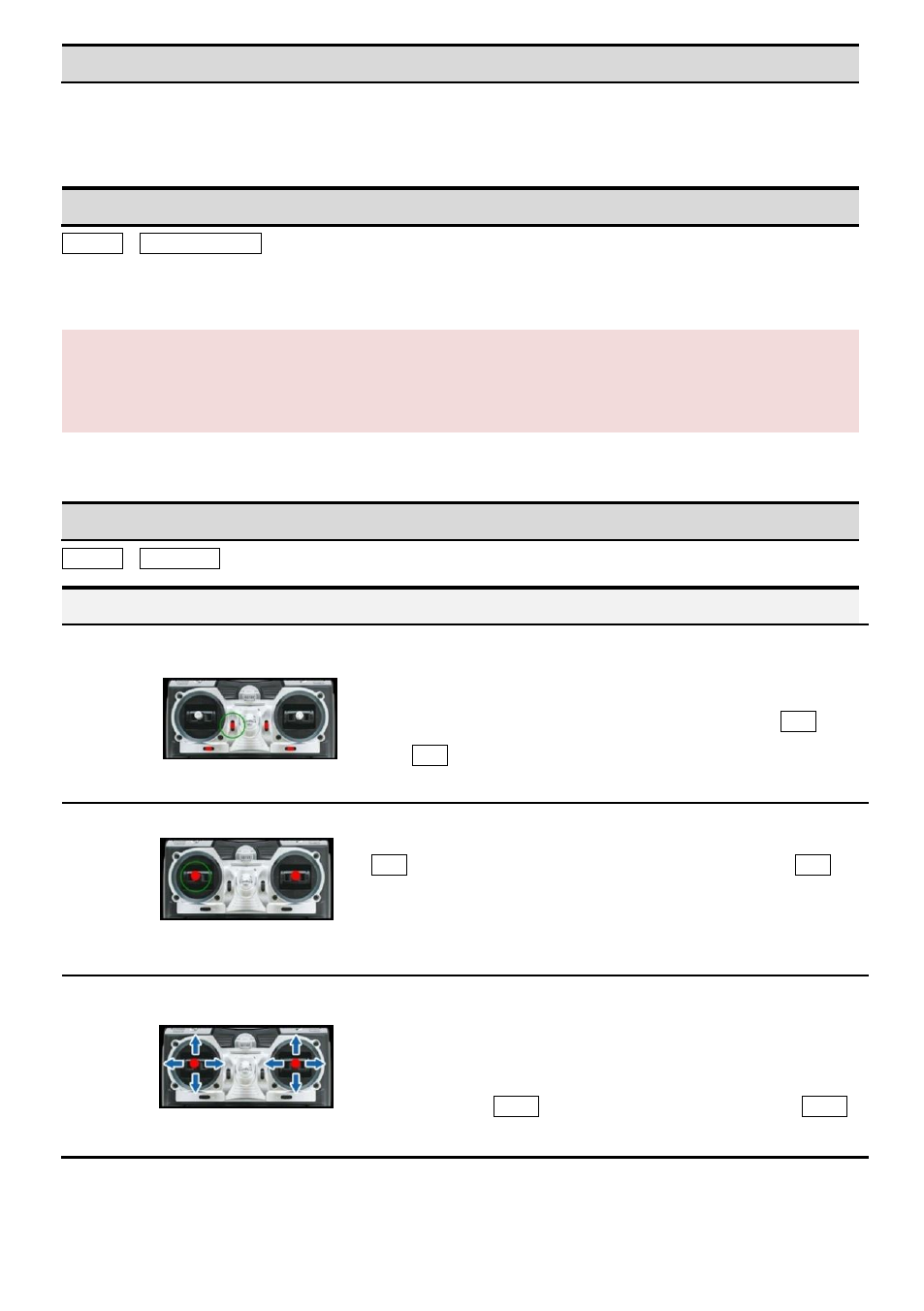

 Calibration

JoystickCalibration

Steps

Joystick (Type1)

Type1

Type2

Step 1

Place all trim levers (for

physical fine turning) in their

neutral, or centered position.

Click Next.

For Type 2 controller, might

not have these physical fine

turning levers. Click Next.

Step 2

Center all the sticks. Click

Next to continue.

Center

all

stick

including

throttle stick. Click Next to

continue.

Step 3

Move all sticks through their

motion range completely

several

times.

When

completed, click Finish.

Move the sticks through their

3D motion range completely

several times, including pitch.

When completed, click Finish.

Fig.③
