Mission Save
1. Click SAVE to save mission edited.
2.
Choose a name with extension ‘.awm’. For Example: DJI_Mission_20100101.awm.
3. Mission Load
4. Click OPEN
to load mission saved; choose mission file with extension ‘.awm’.
Notices:
The Altitude offset value will not be saved in mission file. Please set it every time!!!
(II) Upload Flight Mission
Final Check & Mission Transmitting: Click UPLOAD on the upper bottom of the mission Editor to send flight
mission to DJI autopilot main controller. Here a mission review table as following example will appear for
mission final check. Press OK. The mission is ready to be executed after synchronized successfully.

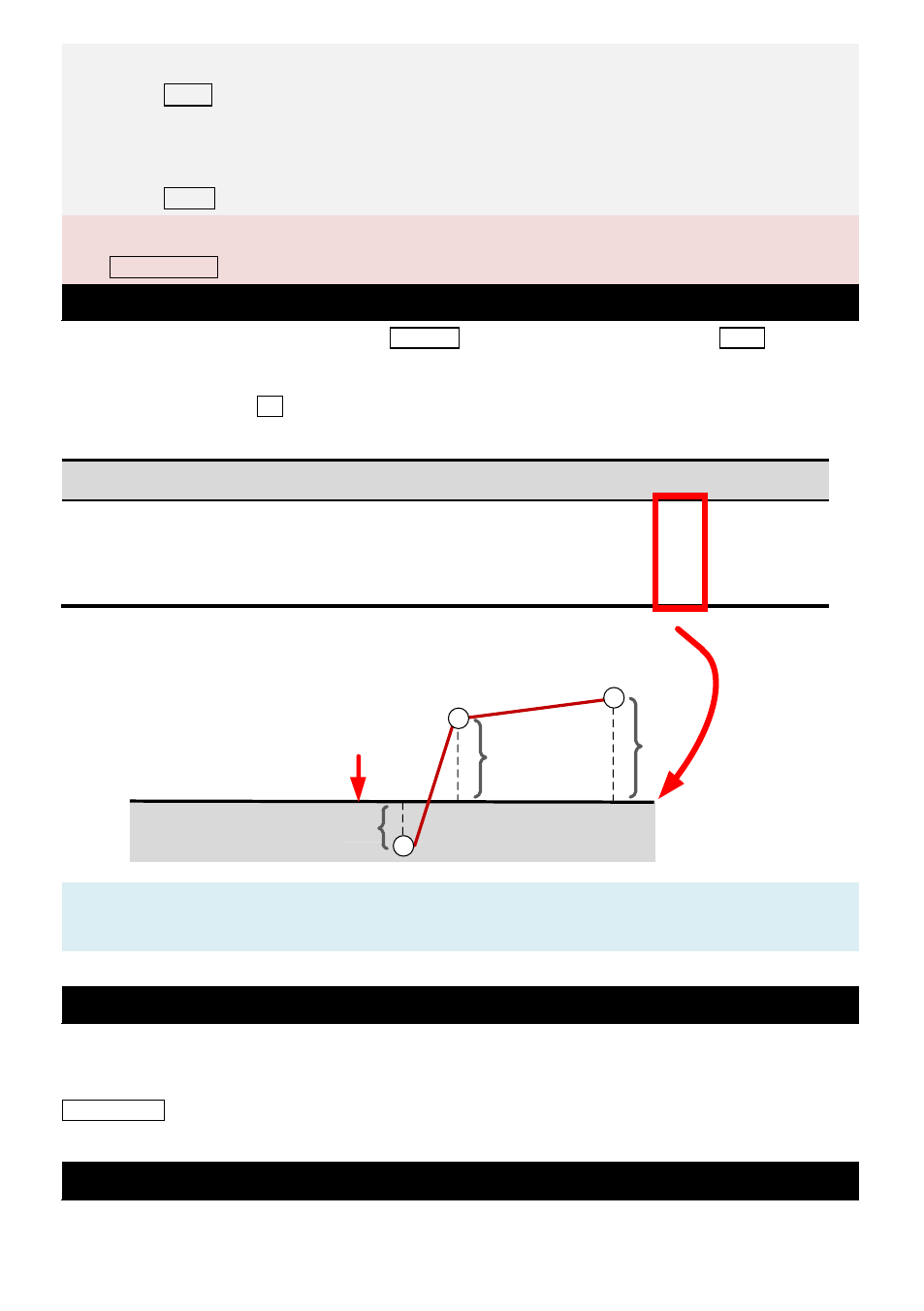

Example of “Mission Review” table under 3 waypoints mission
Waypoint Latitude Longtitude Altitude Speed
Turn
Mode
Altidiff Action
Module
0 xxxxx xxxxx xxxxx 4 StopAndTurn -10 NULL
1 xxxxx xxxxx xxxxx 6 StopAndTurn 20 In meter
2 xxxxx xxxxx xxxxx 15 StopAndTurn 25 In second
Ground
1
2
0
-10m
20m
25m Take-Off Point
Number [Altidiff] is the current relative height from waypoint(s) to aircraft.
Number [Take Off Point] is the relative height from waypoint(s) to take-off location.
Example shows a possible error at waypoint 0
altidiff -10 m in RED. Because the waypoint is 10
meters below ground.
Tips:
After synchronization, if mission is re-edited, you should re-do the synchronization.
(III) Take off Aircraft
After finishing all the above steps, take off the aircraft in one of three takeoff modes. If you want to use Auto
Takeoff and Landing function, please skip the step III and go to Step IV directly. You can take off your aircraft in
Manual Mode, please hover it at a suitable height.
(IV) Switch to Autopilot Mode
Switch to any autopilot mode on your TX. Ground station is able to control the aircraft only after switching to
autopilot mode!
