INSTALLATION INSTRUCTIONS
6509 Instructions 5-22-12 Flex.doc 9 of 9

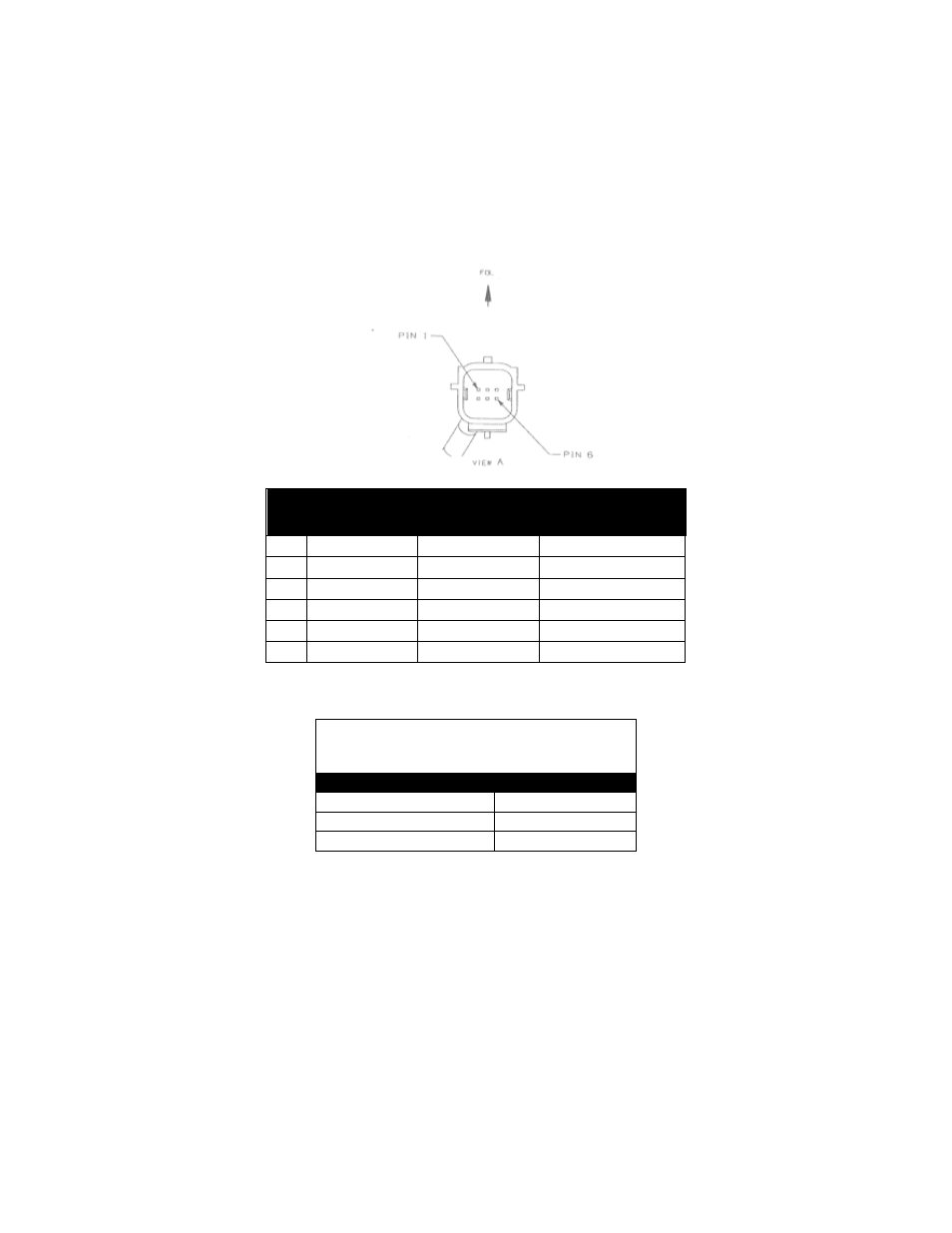

Section 5: Reference –
Supplied Camera &
Chassis Harness Pinouts
Loose wires provided in the
Supplied Chassis Harness
Function Wire color
Ground (-) Black
Reverse signal 12V Green
Ignition 12V Red
PIN
#
FUNCTION
CAMERA
HARNESS
COLOR
CHASSIS
HARNESS
COLOR
1 Video (+) White White
2 Shield Blue Blue
3 Reverse Green Green
4 Video (-) Brown Brown
5 Ground Black Black
6 Ignition Red Red
