INSTALLATION INSTRUCTIONS
6509 Instructions 5-22-12 Flex.doc
8 of 9
Section 4: Ignition, Reverse and Ground Locations continued

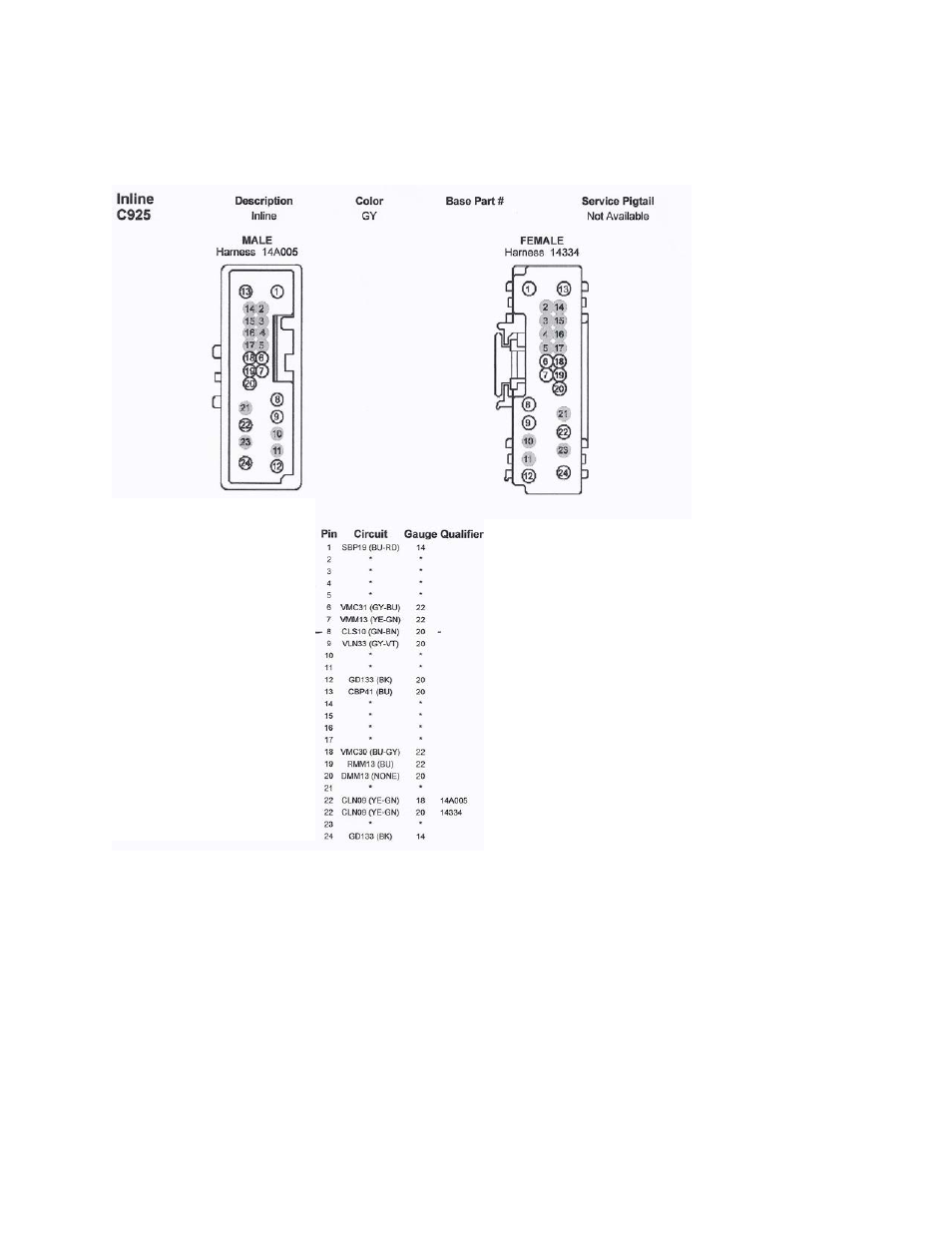

Ignition and Reverse Locations – Connector C925 – 2009-2012 Ford Flex
Pin Circuit Function Supplied Chassis
Harness Color
8 Relay – Reverse Lamps
Green
12 Ground – A Pillar Left
Black
13 Fuse – 41 or Circuit Breaker
Red (12V + Ignition)
24 Ground – Pillar A Left
Black
