Brandmotion 9002-8837 - Manual (Page 4)

INSTALLATION
INSTRUCTIONS
8837 Instructions 10-7-14.docx Page 4 of 6

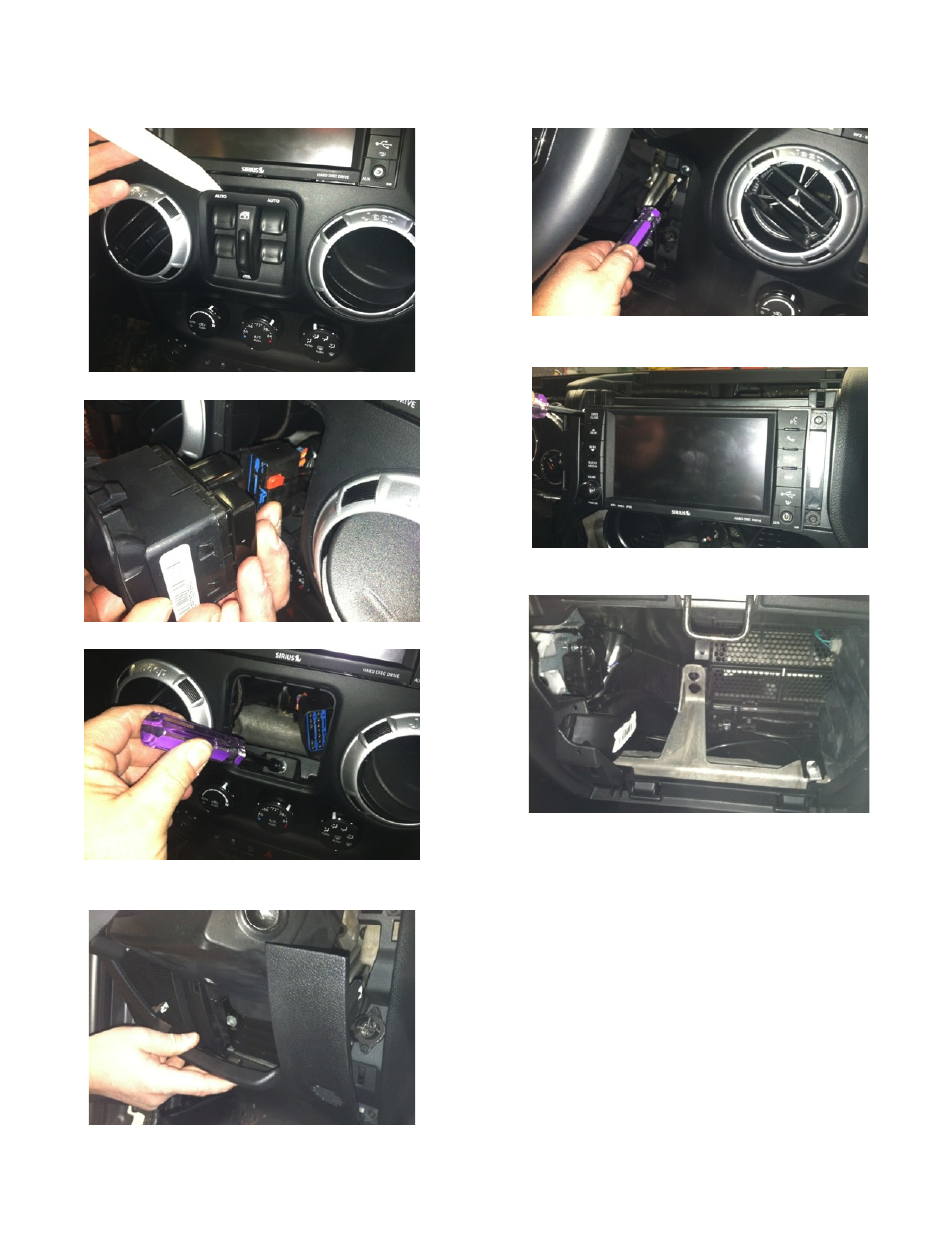

Step 21: Using a plastic trim removal tool, remove
window switch panel.
Step 22: Disconnect harness from window switches.
Step 23: Remove 7mm bolt.
Step 24: Remove driver knee bolster cover.
Step 25: Remove (2) 7mm bolts on both sides of the
steering column.
Step 26: Remove center stack/cluster surround.
Step 27: Remove (4) 7mm bolts to pull radio head out.
Step 28: Remove glove box for access and run Interior
Harness toward radio head.
Step 29: Run the three terminals of the Interior
Harness toward the back of the radio.
