Brandmotion 9002-8837 - Manual (Page 2)

INSTALLATION
INSTRUCTIONS
8837 Instructions 10-7-14.docx Page 2 of 6

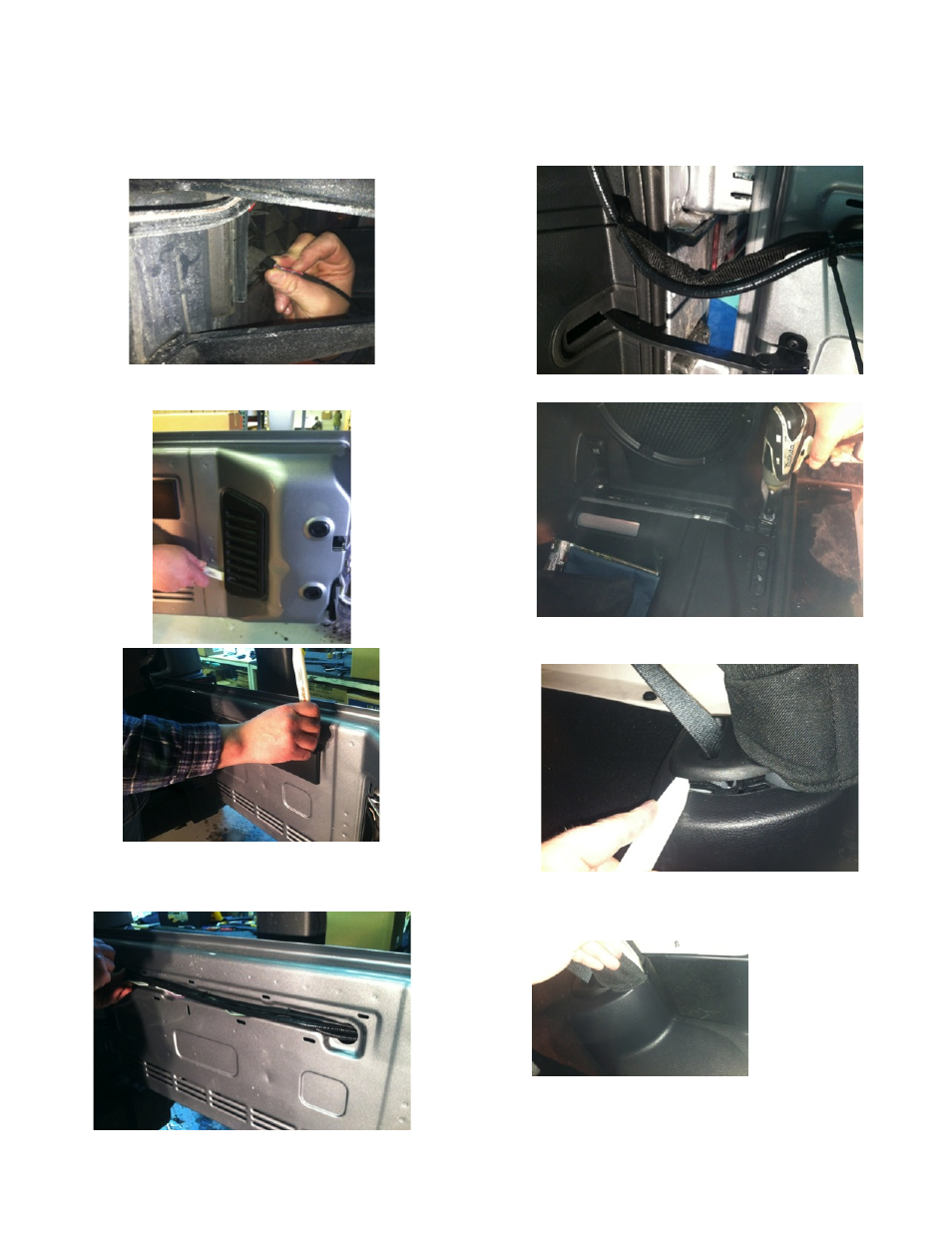

Install Chassis Harness
Step 5: Plug Camera into gray Chassis Harness and
insert black 6-pin connector end of supplied Chassis
Harness through the rear gate vent behind tire carrier.
Step 6: Using a plastic trim removal tool, remove
interior panes on inside of rear gate.
Step 7: Pull harness through the rear gate openings.
Step 8: Use supplied Wire Ties to secure Chassis
Harness to existing harness.
Step 9: Use supplied Wire Ties to secure Chassis
Harness to fabric factory wire cover. CAUTION: Leave
enough slack to allow gate to open fully.
Step 10: Use a T20 Torx bit to remove subwoofer box.
Step 11: Using a plastic trim removal tool, pry off rear
seat belt closeout.
Step 12: Using a plastic trim removal tool, remove rear
access panel to expose 10mm bolt, and remove bolt.
