Maximum Peak Power

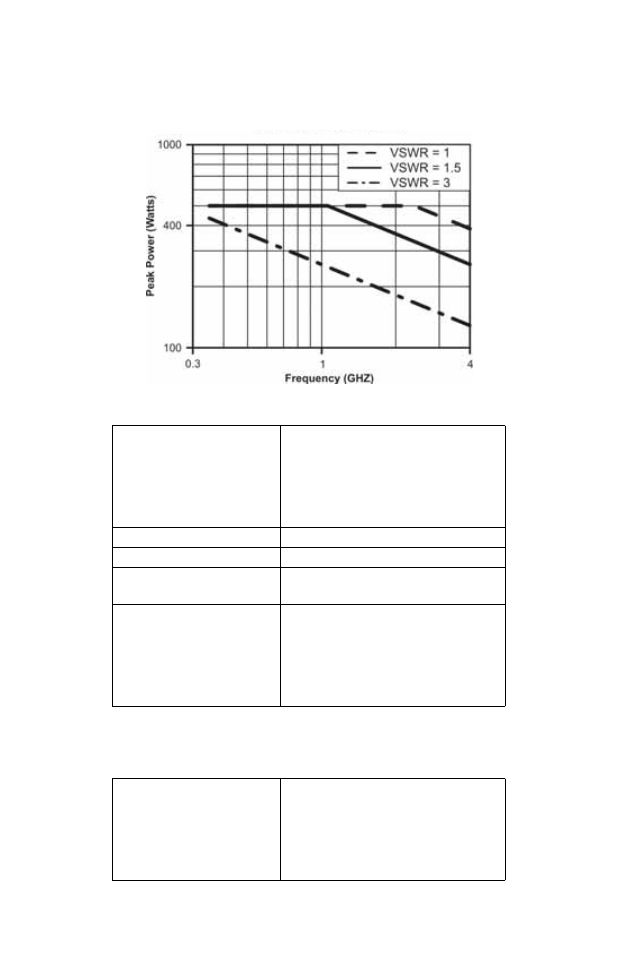

Figure 7 Max. Peak Power
Burst Average Power
Crest Factor
RF Power Range
5012B
5016B
5017B
5018B
5019B 2 W - 150 Watts Avg
1 W - 25 Watts Avg
13 W - 500 Watts Avg
1 W - 25 Watts Avg
2.6 W - 100 Watts Avg
Burst Width 1 μs – 50 ms
Repetition Rate, Min 15 Hz
Duty Cycle (D) 0.001 – 1
D = Burst Width / Period
Measurement Uncert.
5012B
5016B
5017B
5018B
5019B
±6% of reading, +0.05/D Watts
±6% of reading, +0.008/D Watts
±6% of reading, +0.17/D Watts
±6% of reading, +0.008/D Watts
±6% of reading, +0.04/D Watts *
*. Above 35 °C or below 15 °C add 3%
RF Power Range
5012B
5016B
5017B
5018B
5019B 150 mW - 150 Watts
25 mW - 25 Watts
500 mW - 500 Watts
100 mW - 25 Watts
100 mW - 100 Watts
