23
CCDF Interface
* - CCDF measures the percentage of time the power level is above a
threshold.
Note: The main measurement is in the larger display located
above the graph bar. The two smaller, secondary measurements
are located below the graph bar. All of these measurements vary
depending on the main measurement displayed.
Key Button Action
Right Arrow Changes the Main Measurement to Forward Avg
Left Arrow Changes the Main Measurement to Crest Factor
Up Arrow Switch between Forward Peak/Forward Average
Down Arrow Switch Fwd Peak/Ave (W, uW, mW, kW, dBm)
OK Button Initiates Shutdown. See “Shutting Down” on
page 13
Menu Button Goes to Main Menu
Log Button Goes to Logging submenu
+/- Toggles between “Small” and “Large” Display
. (2 Sec) Performs a screen shot. See “Performing a Screen
Shot” on page 13
0 (2 Sec) Zero/Cal Unit/Sensor
8 (2 Sec) Turn On/Off Smoothing
Menu & Log (2 sec) Language Selection Screen

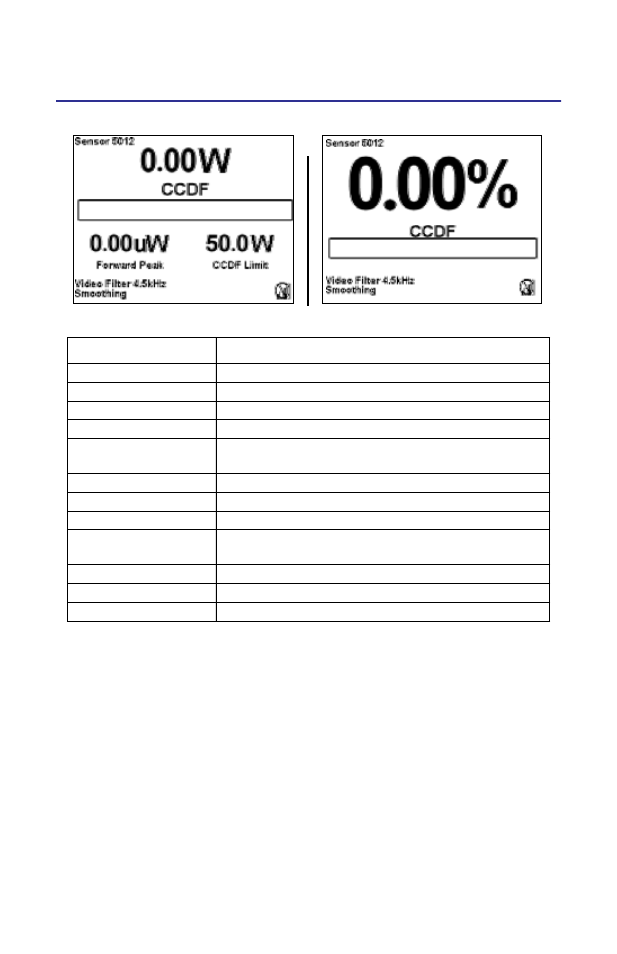

Small Display
Large Display
