difficult. Surface loaded fibers must be completely

removed prior to using low velocity clean water rinse.
Periodic Clean Water Rinse
A periodic clean water rinse is very beneficial for coils

that are applied in coastal or industrial environments.

However, it is very important that the water rinse is made

with a very low velocity water stream to avoid damaging

the fin edges. Monthly cleaning as described below is

recommended.
Routine Cleaning of Coil Surfaces
Periodic cleaning with TotalineR environmentally sound

coil cleaner is essential to extend the life of coils. This

cleaner

is

available

from

Bryant

Replacement

Components Division as part number P902--0301 for a one

gallon container, and part number P902--0305 for a 5

gallon container. It is recommended that all coils,

including standard aluminum, pre--coated, copper/copper

or E--coated coils be cleaned with the Totaline

environmentally sound coil cleaner as described below.

Coil cleaning should be part of the unit’s regularly

scheduled maintenance procedures to ensure long life of

the coil. Failure to clean the coils may result in reduced

durability in the environment.

Avoid use of:

S

coil brighteners

S

acid cleaning prior to painting

S

high pressure washers

S

poor quality water for cleaning

Totaline

environmentally

sound

coil

cleaner

is

nonflammable, hypo allergenic, non bacterial, and a

USDA accepted biodegradable agent that will not harm

the coil or surrounding components such as electrical

wiring, painted metal surfaces, or insulation. Use of

non--recommended coil cleaners is strongly discouraged

since coil and unit durability could be affected.
One--Row Coil
Wash coil with commercial coil cleaner. It is not

necessary to remove top panel.
Two--Row Coils
Clean coil as follows:

1. Turn off unit power, tag disconnect.
2. Remove top panel screws on condenser end of unit.
3. Remove condenser coil corner post. See Fig. 8. To

hold top panel open, place coil corner post between

top panel and center post. See Fig. 9.

4. Remove screws securing coil to compressor plate and

compressor access panel.

5. Remove fastener holding coil sections together at re-

turn end of condenser coil. Carefully separate the out-

er coil section 3 to 4 in. from the inner coil section.

See Fig. 10.

6. Use a water hose or other suitable equipment to flush

down between the 2 coil sections to remove dirt and

debris. Clean the outer surfaces with a stiff brush in

the normal manner.

7. Secure inner and outer coil rows together with a

field--supplied fastener.

8. Reposition the outer coil section and remove the coil

corner post from between the top panel and center

post. Reinstall the coil corner post and replace all

screws.

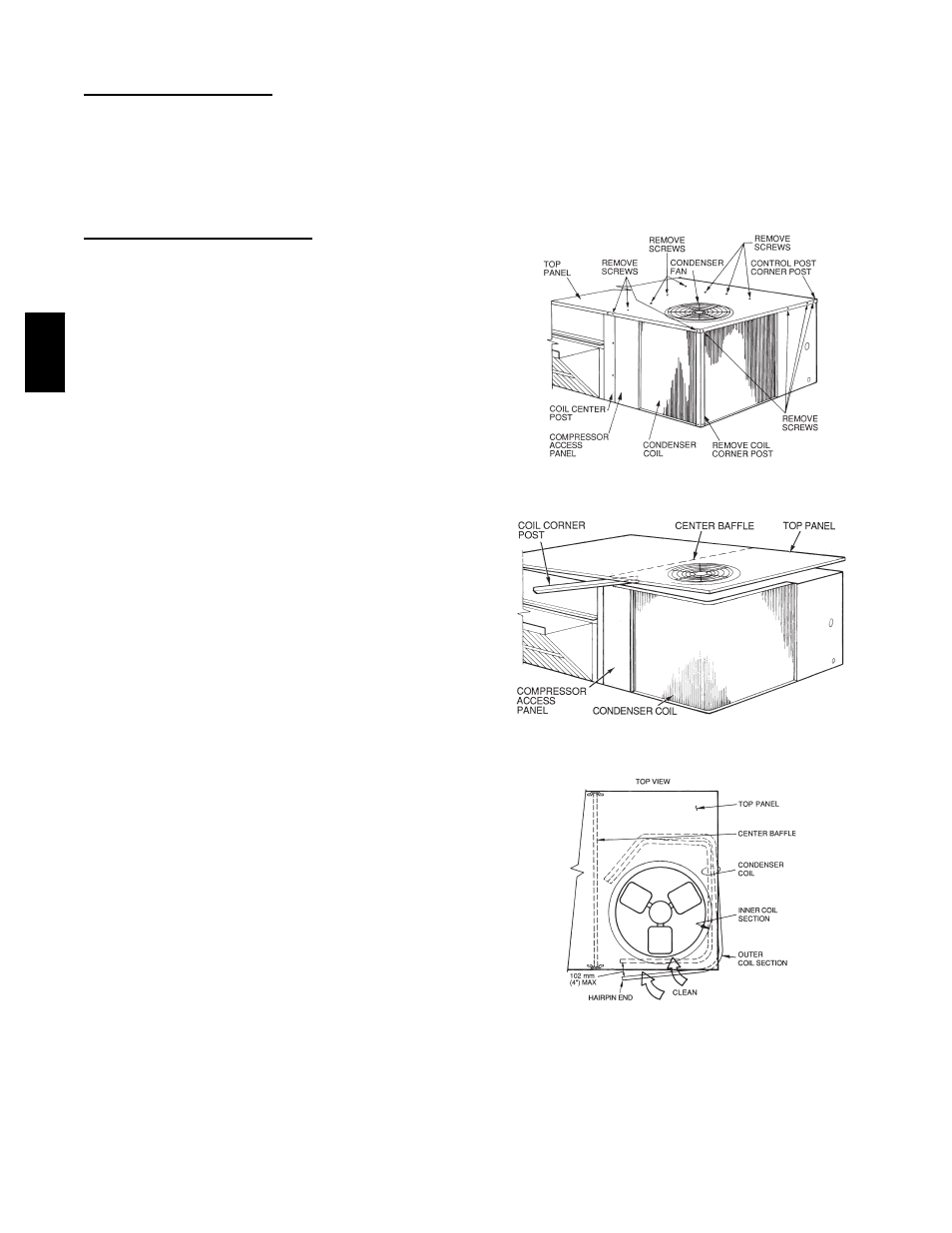

C08205

Fig. 8 -- Cleaning Condenser Coil

C08206

Fig. 9 -- Propping Up Top Panel

C08207

Fig. 10 -- Separating Coil Sections

Totaline Environmentally Sound Coil Cleaner

Application Equipment

S

2--1/2 gallon garden sprayer

S

Water rinse with low velocity spray nozzle

580J
