Publication DNET-UM003A-EN-P - August 2000
3-8 Connect Devices and Commission Nodes

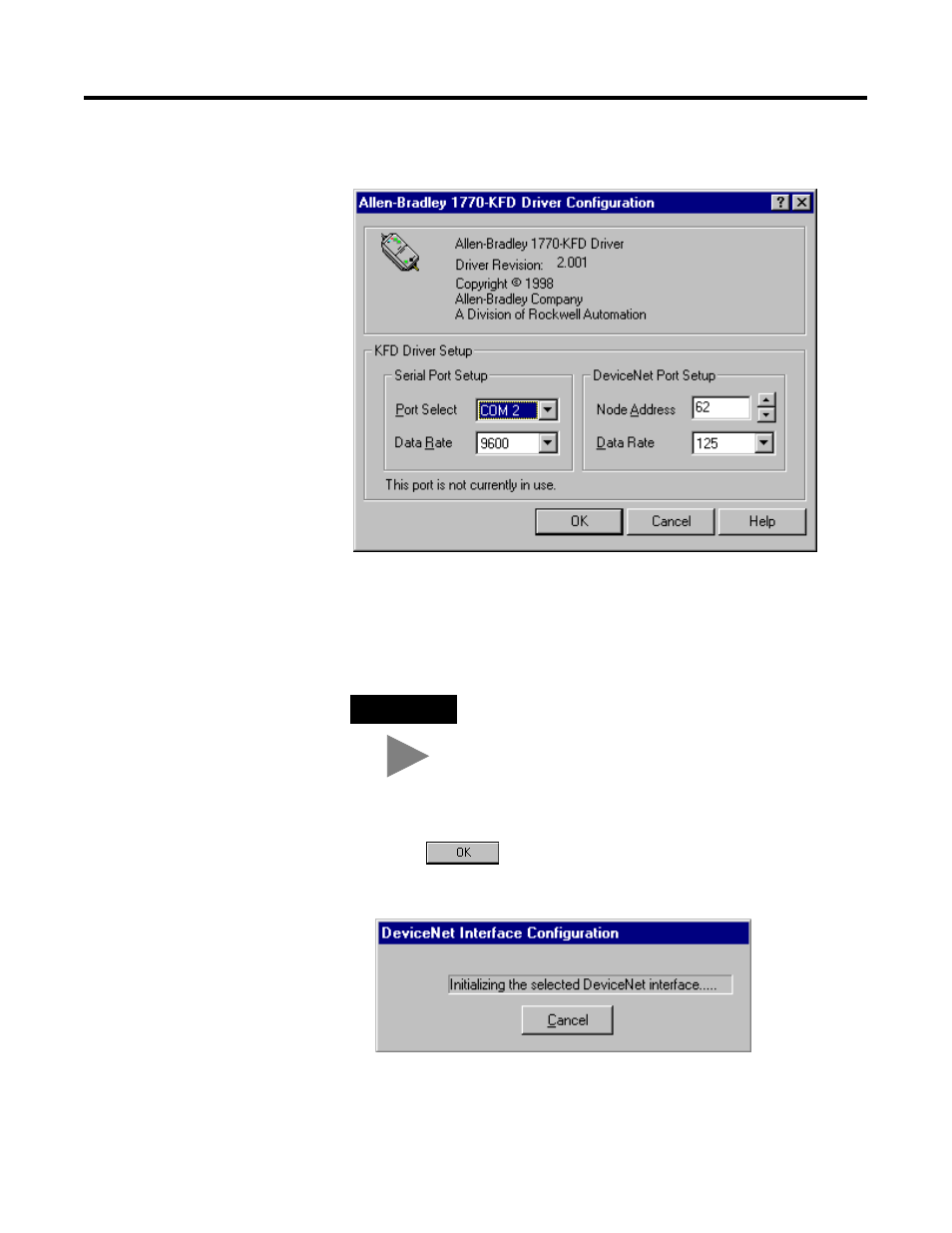

You will see a different screen for all three interfaces. Below is an
example of the 1770-KFD Driver Configuration screen:
7. Change the Driver configuration if needed. Serial port setup may
vary, depending on the PC you are using. For the Starter Kit
demonstrations you want the DeviceNet node address to be 62
and the data rate to be 125.
8.Click .
9.Please wait while RSLinx is initializing your interface.
TIP
If your Starter Kit is SKIT7, the node address for the
1784-PCIDS must be 00.
