A complete list of all the Trusted TM items needed for the migration is written in the
table.
Table 19 - Trusted TM Items Needed for the Migration
Item Description Remarks
1 T8100 controller chassis
2 T8110B TMR processor
3 T8162 CS300 bridge module (qty 3)
4 TC 324-02 CS300 interface cable connector card
5 TC 322-02 CS300/SC300E interface cable
assembly
6 T8311 expander interface module
7 T8312 expander interface adaptor
8 T8151B communication interface
9.6 SYSTEM ARCHITECTURE FEATURES
The three T8162 CS300 bridge modules enable the connection between the Trusted TM
system and the legacy CS300 I/O, as shown in the illustration.

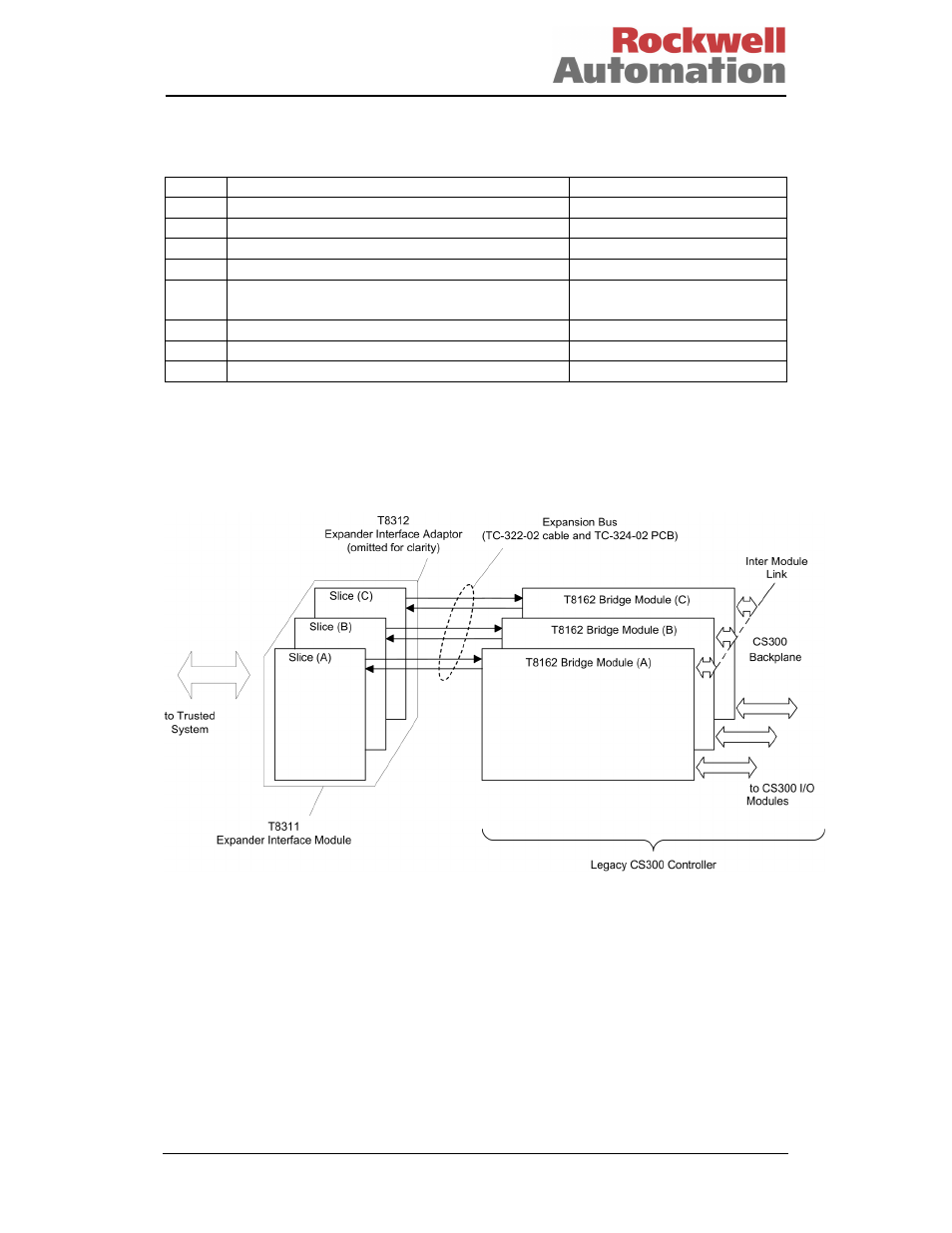

Figure 8 – System Architecture Features using T8162 Bridge Module
The system communications must use approved cabling and accessories. In
particular:
• The Trusted system carries a T8312 expander interface adaptor and the CS300
rack carries a TC-324-02 PCB.
• There is one TC-322-02 cable assembly. This carries the data between the two
items of equipment
using a triple, bidirectional communication link .
• Cable assemblies are available up to 15 m long, and the system will support a
cable up to 50 m long.
