Rockwell Automation Publication PFLEX-IN028A-EN-P - February 2012

9

Balancing Resistor Kit for 600/690V Frame 13 PowerFlex 700AFE and 600/690V Frame 13 and 14 PowerFlex 700H/700S AC Drives

Unfasten the two (2) screws shown in

Figure 15

and remove the EMC shield

cover.

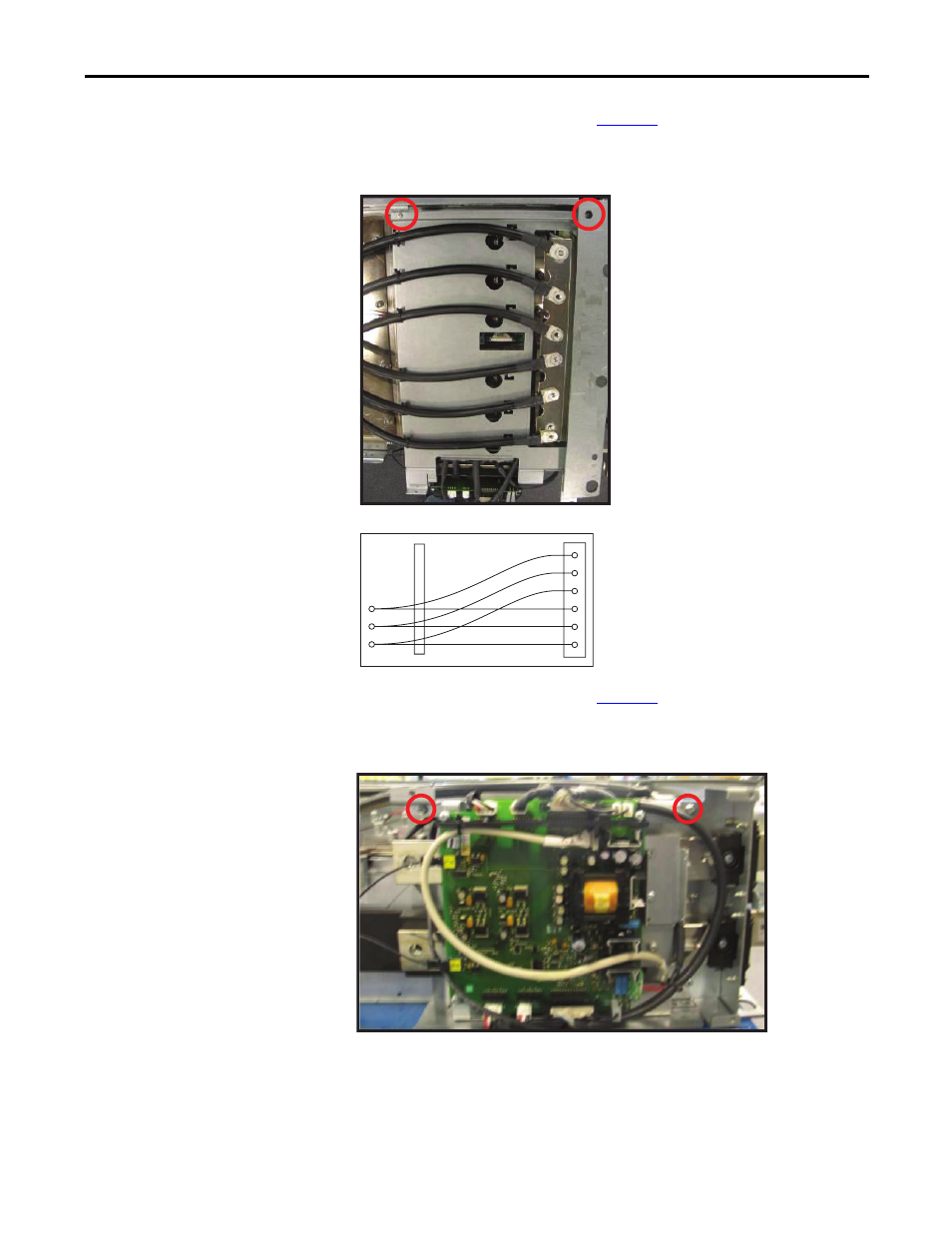

Figure 15 - Removing EMC Shield Cover Screws

Unfasten the two (2) screws shown in

Figure 16

and remove the EMC shield

unit.

Figure 16 - Removing EMC Shield Unit

Bus Bar

Br

ack

et

NOTE: Mark wires before removing
and reinstall as with matching sets.

2 places
M4 x 8 screws
Tool: PZ2 – Head
Torque: 3.5 N•m

2 places
M5 x 10 screw
Tool: PZ2 – Head
Torque: 3.5 N•m
