10 Rockwell Automation Publication PFLEX-IN028A-EN-P - February 2012
Balancing Resistor Kit for 600/690V Frame 13 PowerFlex 700AFE and 600/690V Frame 13 and 14 PowerFlex 700H/700S AC Drives
Step 14: Remove Supply Bus
Bar Screws
Unfasten the six (6) screws shown in Figure 17 from the supply bus bars.

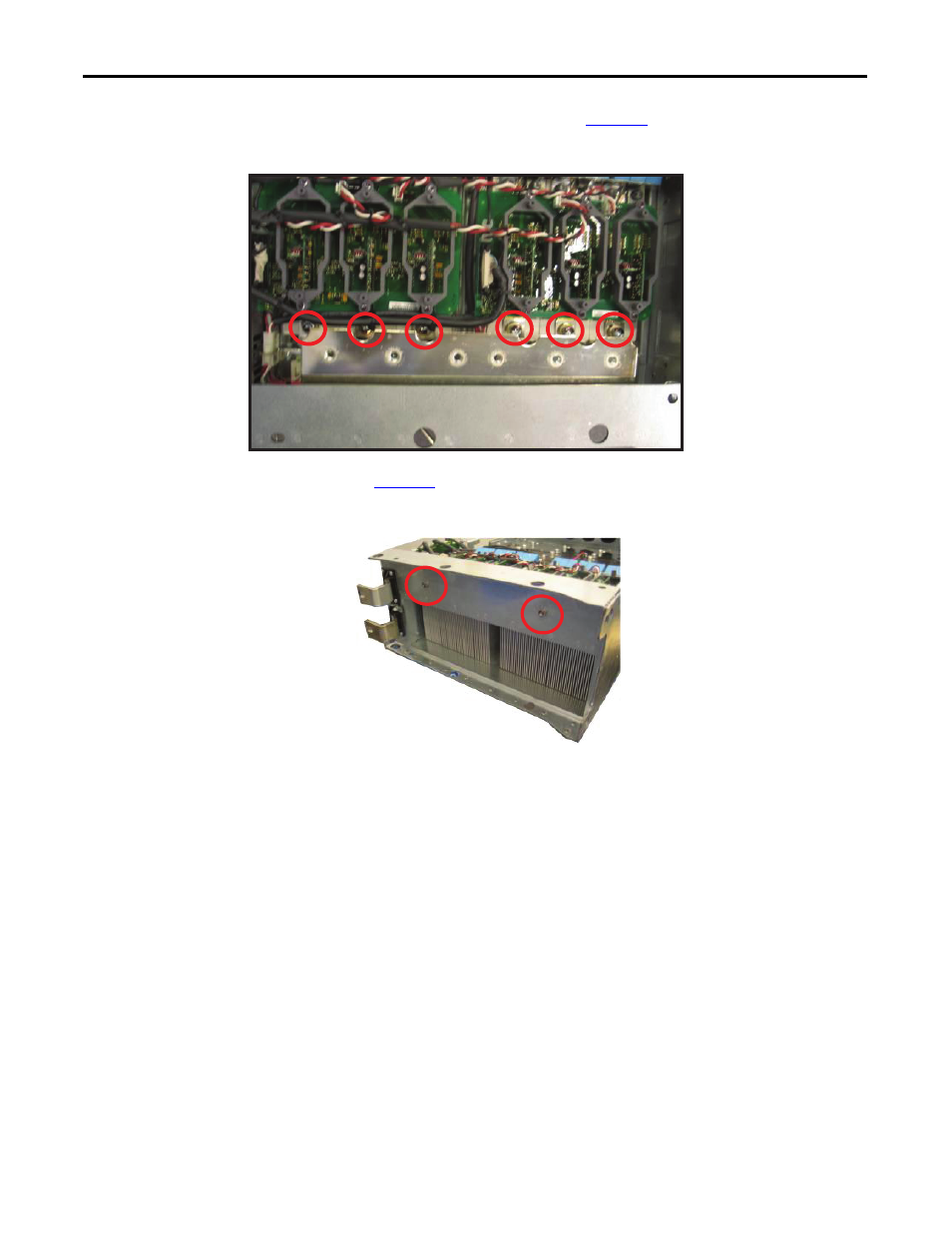

Figure 17 - Removing Supply Bus Bar Screws
See Figure 18 and unfasten the two (2) screws that hold the bus bar support.
Figure 18 - Removing Supply Bus Bar Support Screws
6 places
M8 x 20 screws
Tool: hexagonal socket head (size 6)
Torque: 14 N•m
2 places
M6 x 20 screws
Tool: PZ3 – Head
Torque: 5 N•m
Pivot bus bar assembly and remove.
