FactoryTalk Historian ActiveView User Guide
6

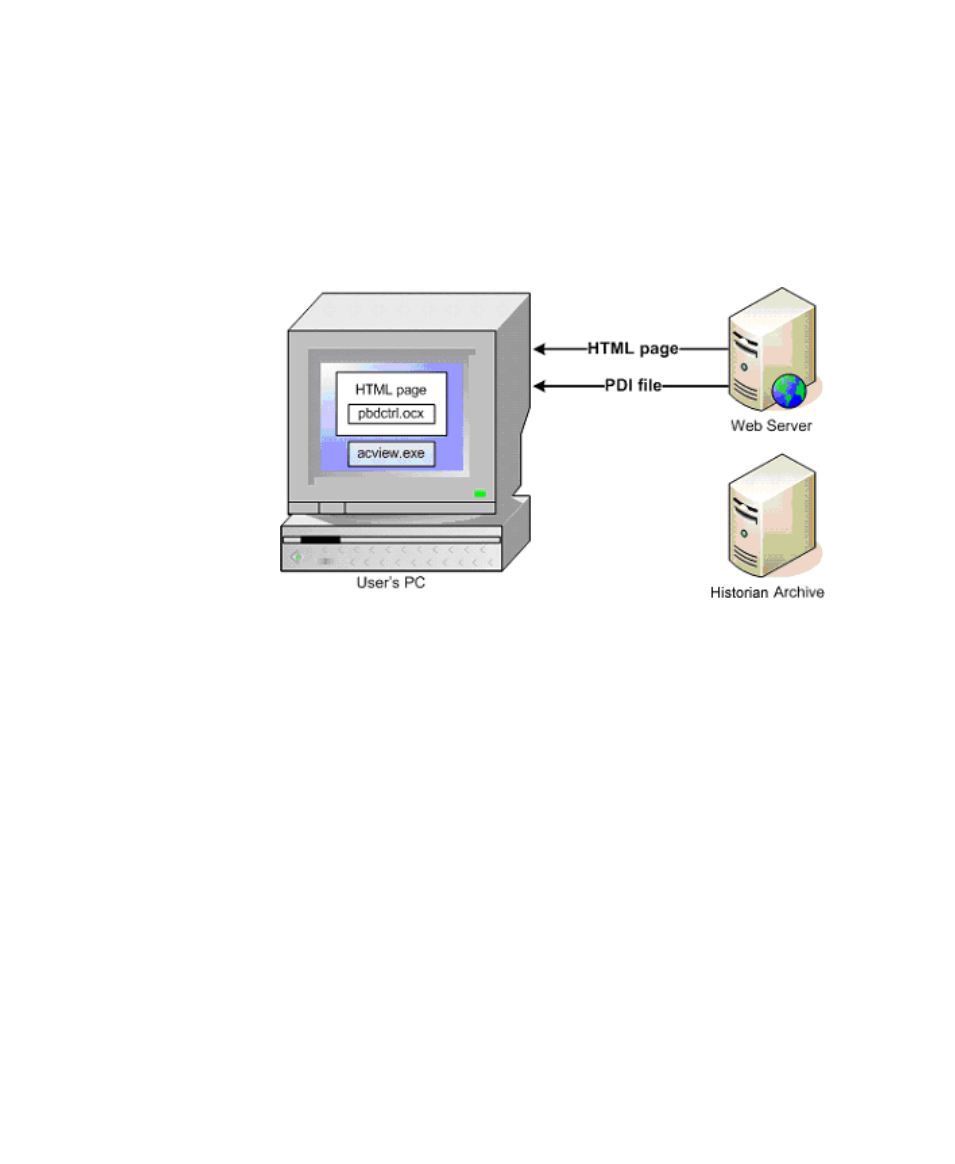

3. FactoryTalk Historian ActiveView (acview.exe) gets the appropriate
data from the Historian Server and loads the data into the Display
Document. This data continues to update as new data becomes
available on the Historian Server.
For more details, see Flow of Information (page 31).
Content of a Display Document
A Display Document viewed through FactoryTalk Historian ActiveView
can contain both static and dynamic content. Static content may include
bitmaps, schematics, or text. Dynamic symbols include values, bars, XY
plots, and trends that are updated when the data in the Historian Server
changes. A display developer can also include symbols that change colors
as certain values are reached.
