2.10. Generating the SYSTEM.INI File
At this point, the configuration only exists as a graphical representation in the diagram. When data has
been entered/edited into the diagram, the .INI file can be generated from the diagram by selecting the
Generate the INI Buffer button shown in Figure 33 below.

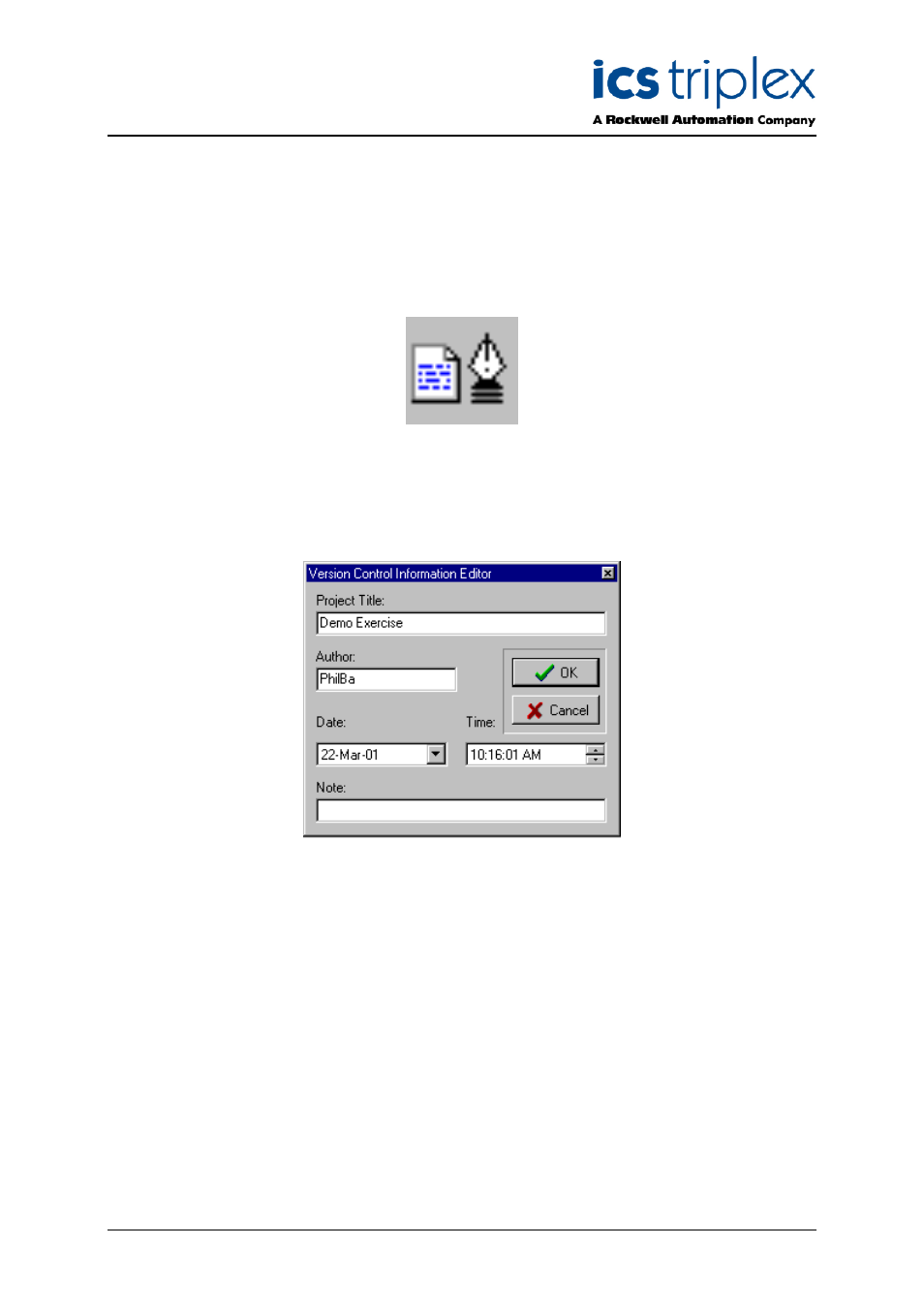

Figure 33 INI Buffer Generation Icon
Selecting the button above initiates the display shown in Figure 34 below.
Figure 34 Version Control Information Editor Window
The user must provide a name for the System.INI file in the Project Title area of the display above and
enter initials/name in the Author area. A revision or reference comment can be entered in the Note:
area. Selecting the OK button will then generate the System.INI file from the diagram. The .INI Buffer
now matches the diagram.
