Trusted, Toolset suite t8082 – Rockwell Automation T8082 Trusted Toolset Suite User Manual
Page 42
Trusted
TM
Toolset Suite T8082
Issue 14 Feb 10
PD-T8082
42
The Trusted
TM
Communications Interface Modules are all created using the same template. Left-click
on the required module slot and select 8151: Communications Interface. A new Communications
module appears in the slot.
Select the module to be configured by clicking the left-hand mouse button on the Communications
Module on the opening screen. This will cause the Trusted
TM
Communications Interface Module
Parameters window shown in Figure 29 below to be displayed.

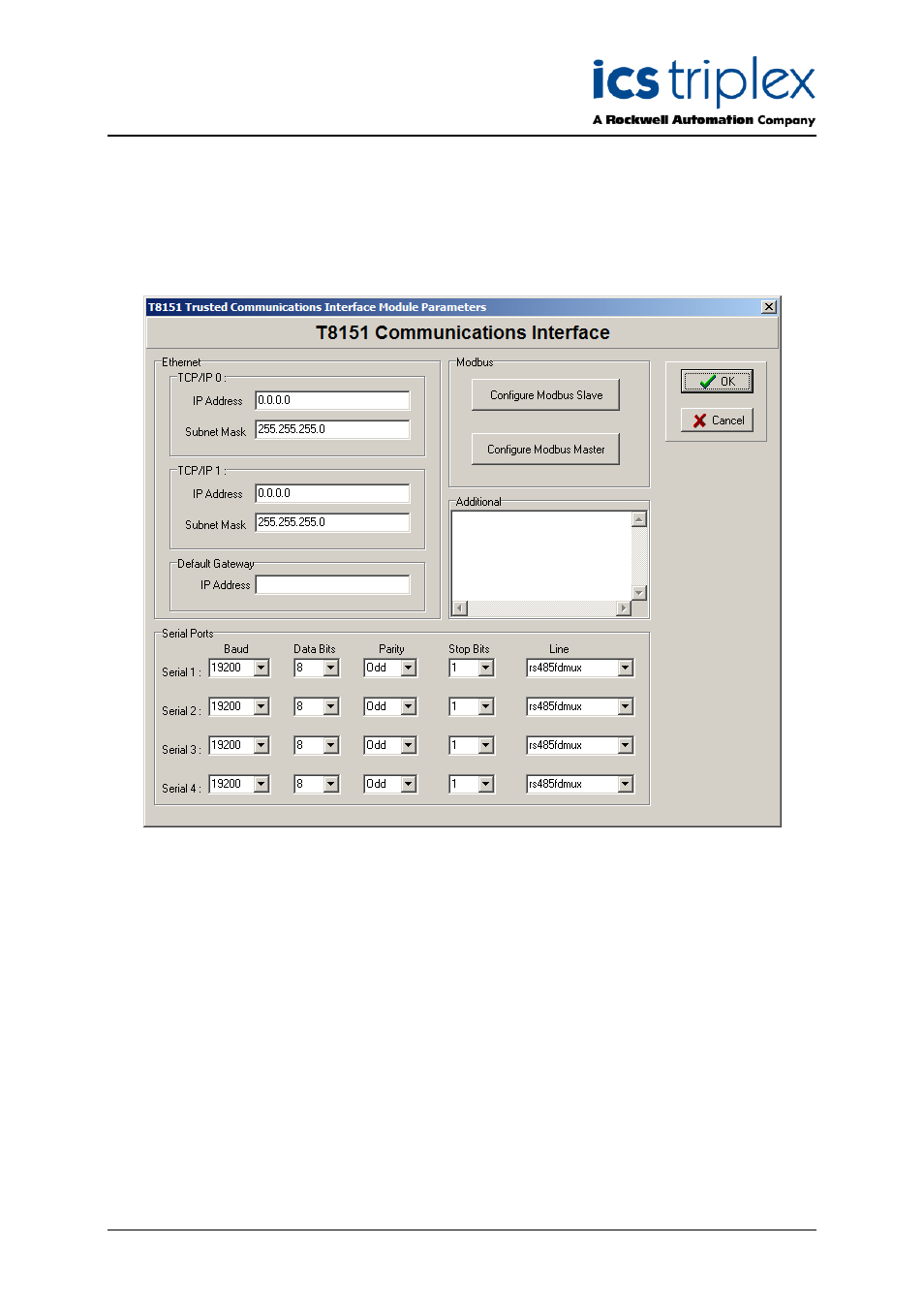

Figure 29 Communications Interface Parameters Window
For further information on setting up the port configuration(s) and any associated Modbus addresses,
please refer to Product Description PD-8151B, Trusted
TM
Communication Interface. This includes
extensive details on the Modus setup and protocol.
The user must select the OK button to store the configuration data in the diagram and return the
screen display to the System Configuration Manager window.
