Power source connection, Connect ac power – Rockwell Automation 6186M-xxxx Industrial Performance Monitors Installation Instructions User Manual
Page 30

30 Industrial Performance Monitors
Rockwell Automation Publication 6186M-IN002C-EN-P - December 2011
Power Source Connection
The monitor connects to either a 100…240V AC or a 9V…36V DC power source, but should
not be connected to AC and DC voltage at the same time.
Connect AC Power
With the AC power adapter, the monitor can use a single-phase AC power supply, providing
100…240V AC at 47…63 Hz. Only use the AC adapter supplied with the monitor.
Power must be available at a grounded outlet nearby. Whenever possible, connect the monitor to
the same AC source that supplies the computer.

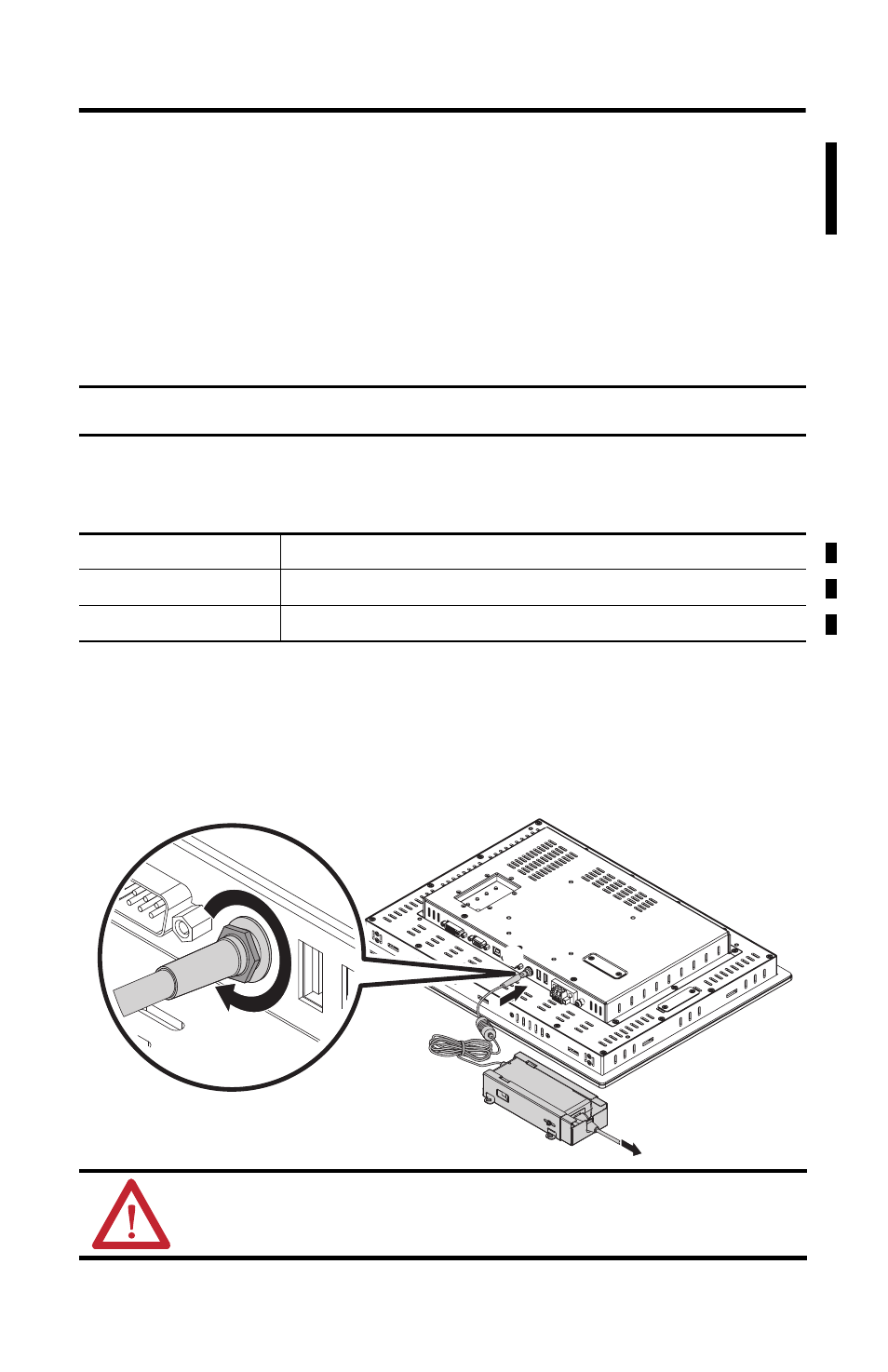

Follow these steps to connect power to the monitor.
1. Turn off the main power switch or breaker.
2. Connect the AC adapter’s 12VC input cable to the 12V DC power-input connector on
the monitor ( ) and secure this connection by screwing the barrel over the threads ( ).
IMPORTANT
Do not use the AC adapter and external DC at the same time.
Cat. No.
Description
6189V-MPWRSPLY
Replacement AC power adapter
6189V-MPSDIN
DIN rail mounting accessory for AC power adapter
WARNING: In a hazardous location installation, secure the AC power cord by using the
included metal cage.
