Industrial Performance Monitors 17
Rockwell Automation Publication 6186M-IN002C-EN-P - December 2011
Bench or Tabletop Mounting
Use the optional bench/tabletop adapter for monitors, catalog number 6189V-MBA, to mount
your monitor on a bench or tabletop arm.
Mounting Guidelines
Observe these guidelines when installing the monitor on an arm:
•
The mounting surface and the mounting arm must be strong enough to support both the
monitor and the mounting hardware.
•
The interface between the arm and the monitor must meet VESA FPMPMI 100 mm
(3.94 in.) standards.
•
The mounting location must provide adequate clearance for positioning and moving the
adjustable unit, and routing cables.
Mounting the Monitor on a Bench or Tabletop
Follow these directions to mount the monitor to a bench or tabletop.
1. Mount the arm to the bench or tabletop by using screws, bolts, or clamps so the monitor
cannot tip.
2. Place the monitor over the arm and insert four M4 x 0.7 screws through the arm brackets
and into the monitor.

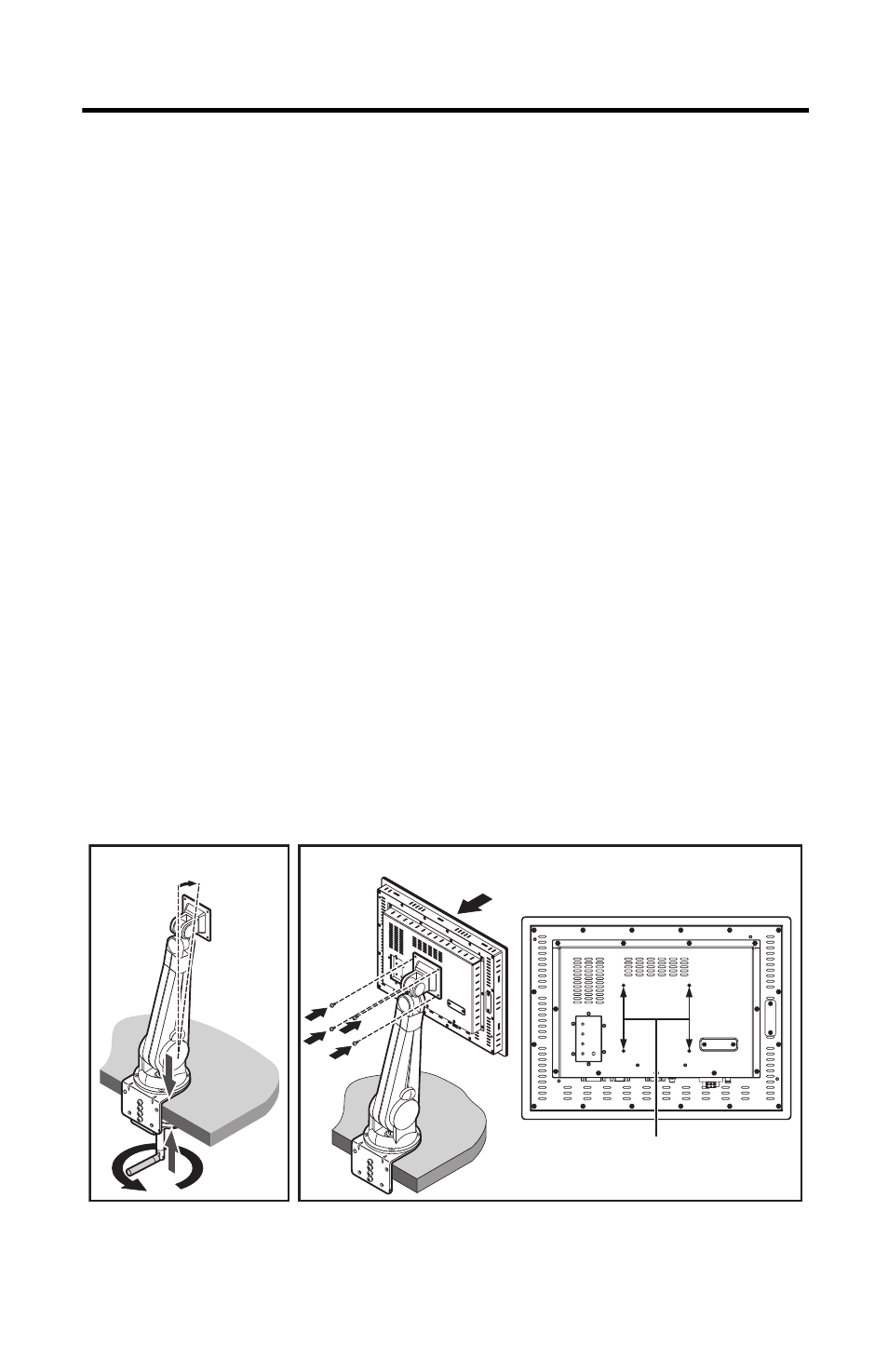

The illustration shows the mounting holes for VESA FPMPMI standard
100 mm (3.94 in.) interface pad.
3. Tighten the screws.
Monitor Mounting Holes (4)
Installing Arm Installing Monitor to Arm
