50
Rockwell Automation Publication 6000-IN006A-EN-P - April 2014
Chapter 3
Drive Electrical Installation
Connect Control Power
Wiring
Introduction
Externally supplied control power is required to operate the drive. The standard
voltage supported is 220V AC/50 Hz. The other typical phase voltages of
230V AC, 110V AC, and 120V AC are also supported (50/60 Hz), but need to
be specified at the time of order. A minimum of 3 kVA is required to supply the
control circuit.
Wiring Routing and Connection
The control power wiring enters the drive through an opening in the bottom
plate of the LV Control Cabinet.

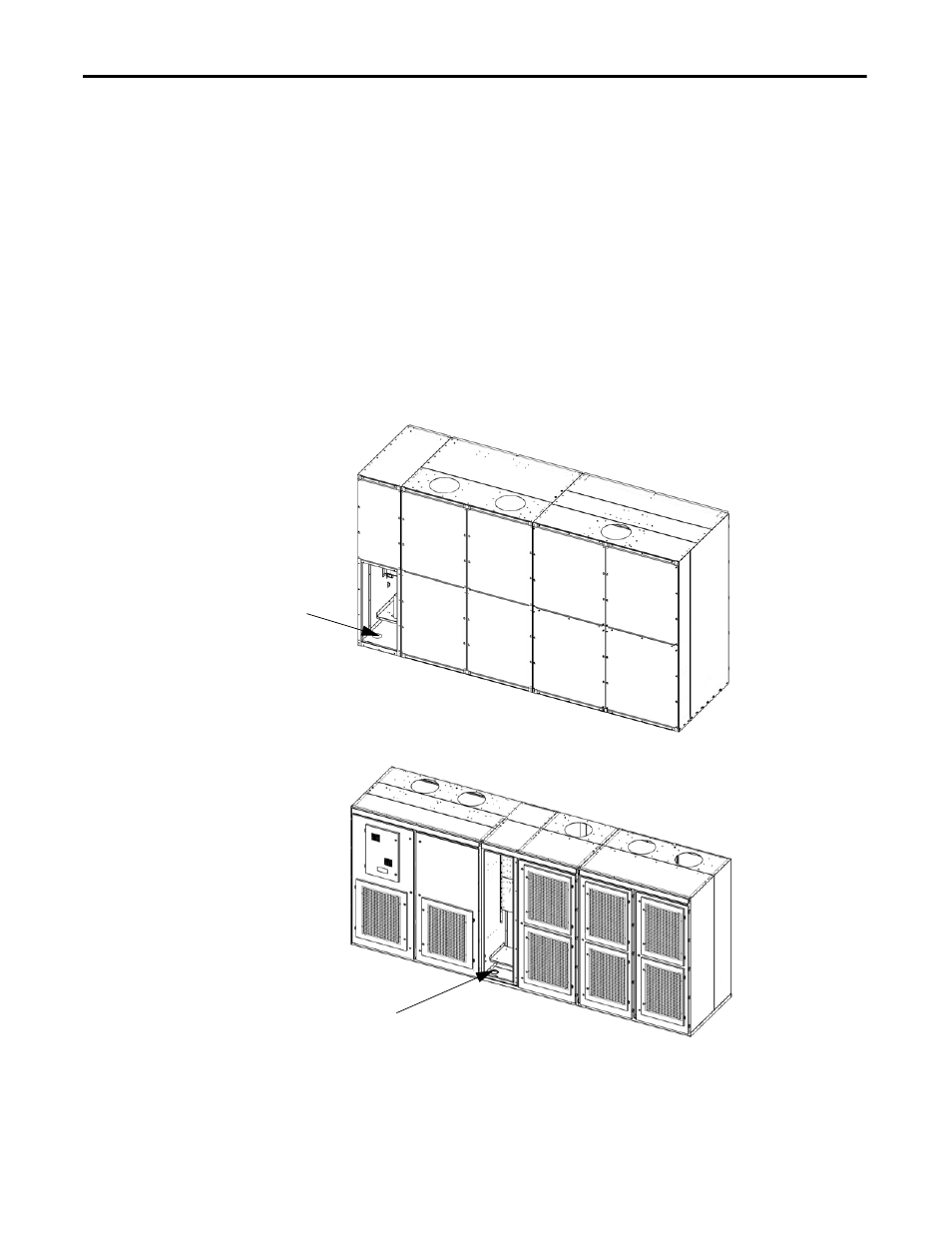

Figure 31 - Control Power Wiring Opening (Fixed-mounted Power Module Configuration)
Figure 32 - Control Power Wiring Opening (Drawout Power Module Configuration)
Cable entrance in
bottom rear of LV
Control Cabinet
Rear View
Cable entrance in
bottom front of LV
Control Cabinet
Front View
