Remove overhead lifting cables and lifting angles – Rockwell Automation 6000 PowerFlex Medium Voltage Variable Frequency Drive Installation Instructions User Manual
Page 22
22
Rockwell Automation Publication 6000-IN006A-EN-P - April 2014
Chapter 1
Shipping and Handling Procedures
4.
Lift the cabinet using overhead lifting angles and remove the wooden
shipping skid from under the equipment.
Remove Overhead Lifting Cables and Lifting Angles
When the cabinet is in the desired position, remove the lifting angles.
1.
Remove rigging from the lifting angles, and remove the bolts holding the
lifting angles together; retain or recycle hardware.
2.
Remove and retain the hardware from the base of the lifting angles and
retain or recycle the lifting angles.
3.
Reinstall the hardware (M20 x 60) removed in step 2 (to seal the holes) on
the top of the drive (
Figure 10
).

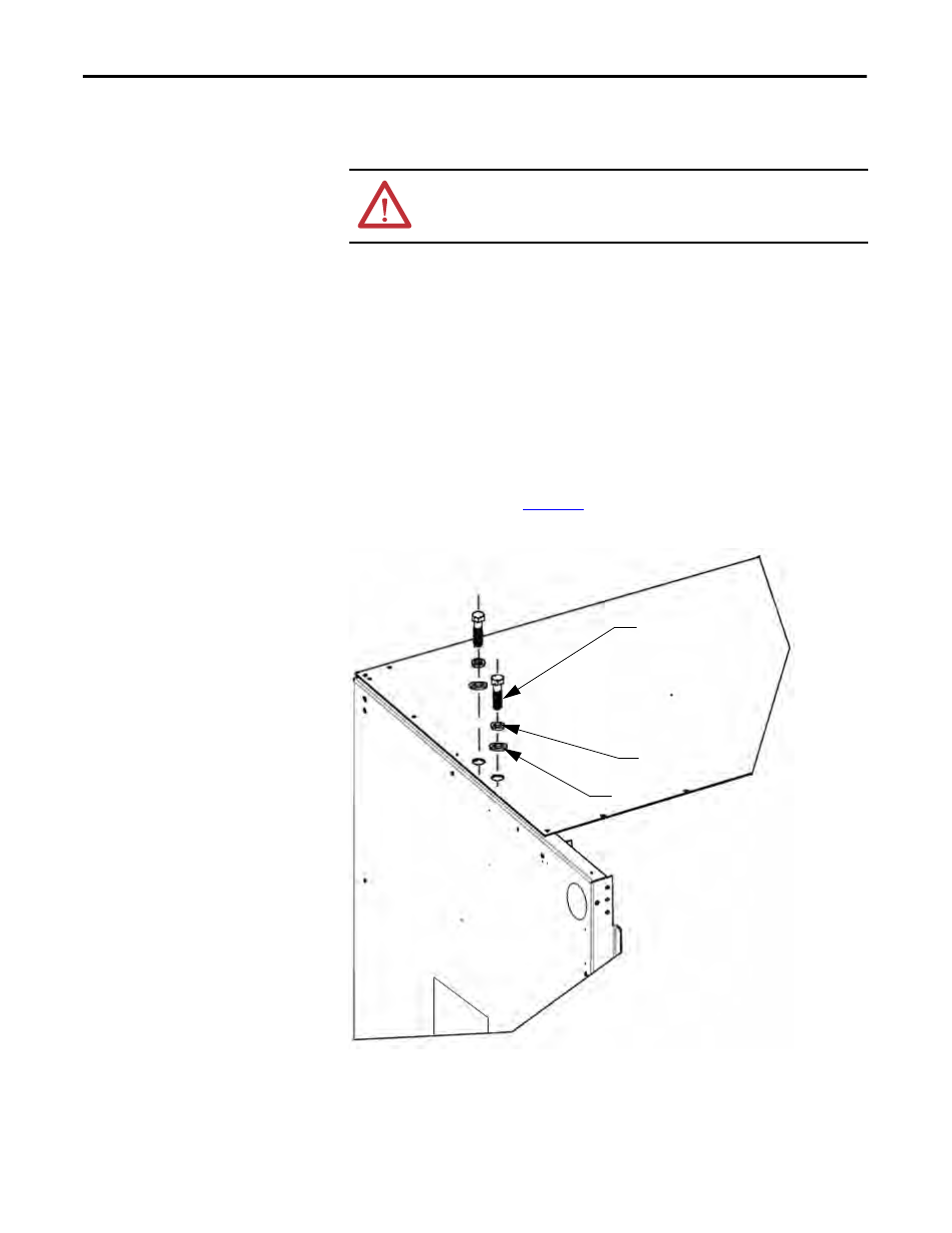

Figure 10 - Insert bolts
ATTENTION: Only lift the cabinet high enough to remove the shipping skid at
this point. Do not place any parts of the body underneath the cabinet. Remove
the shipping skid from the work area before continuing.
M20 Bolt
Lockwasher
Washer
