Lift the bypass cabinet – Rockwell Automation 6000 PowerFlex Medium Voltage Variable Frequency Drive Installation Instructions User Manual
Page 26
26
Rockwell Automation Publication 6000-IN006A-EN-P - April 2014
Chapter 1
Shipping and Handling Procedures
Lift the Bypass Cabinet
If the optional Bypass Cabinet is supplied, lift the Bypass Cabinet using four M12
eye bolts. The back plate does not have to be removed to install the M12 nuts as
they are welded to the inside of the top plate. See
for appropriate torque requirements.
1.
Install four M12 eye bolts and washers in each corner of the top plate on
the cabinet.

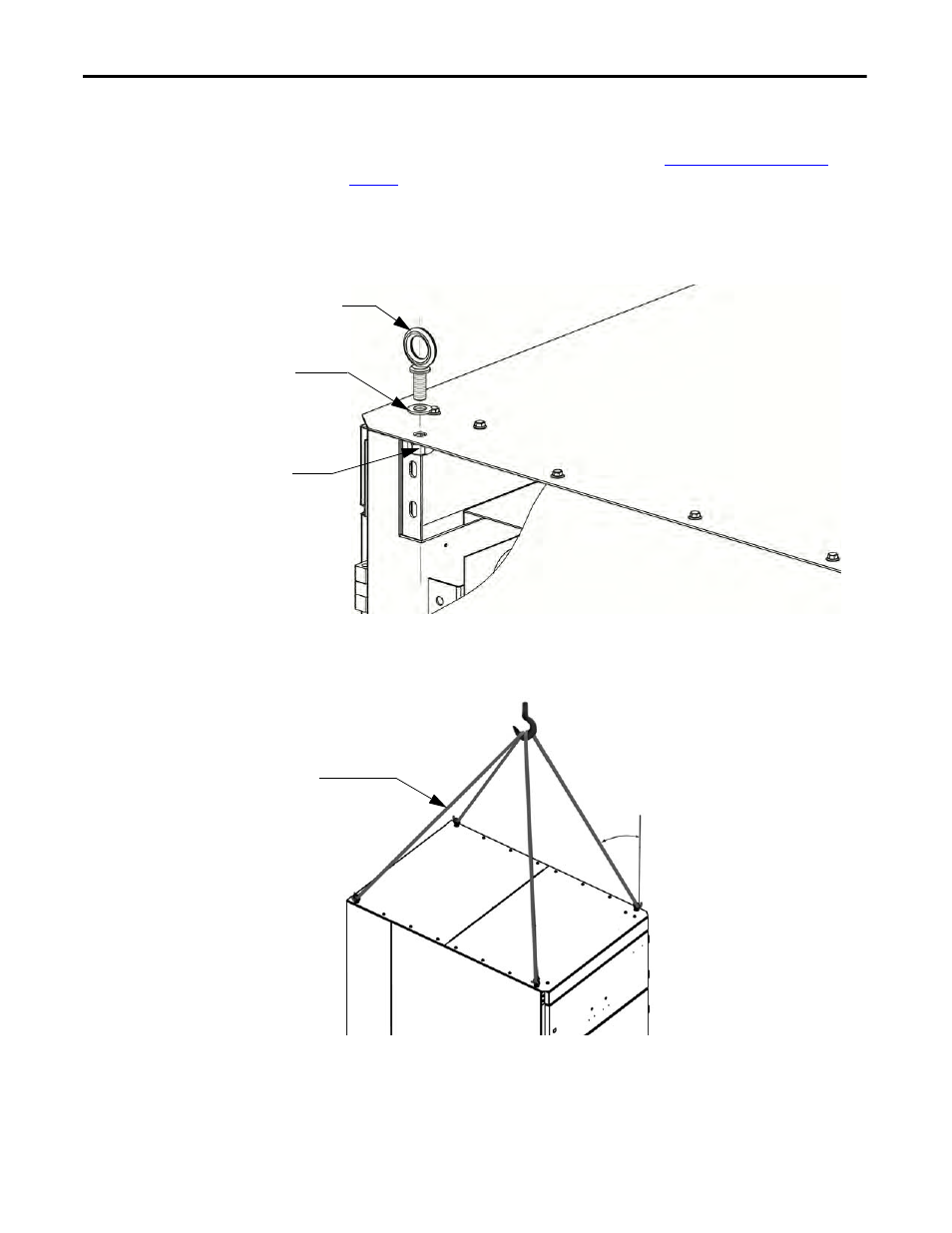

Figure 15 - Install Bypass Cabinet hardware
2.
Attach a steel cable or other suitable lifting rigging to the eye bolts. The
lifting rigging must meet lifting capacity requirements.
Figure 16 - Lift Bypass Cabinet
3.
When the cabinet is in the desired position, remove the steel cable, and
hardware.
4.
Replace the eye bolts with four M12 bolts and washers provided in the
document/hardware box.
M12 Eye Bolt
Welded Nut
Washer
Maximum 45º
Steel Cable
