Figure 9 – Rockwell Automation 6000 PowerFlex Medium Voltage Variable Frequency Drive Installation Instructions User Manual
Page 21
Rockwell Automation Publication 6000-IN006A-EN-P - April 2014
21
Shipping and Handling Procedures
Chapter 1
2.
Adjust the rigging lengths to compensate for any unequal weight
distribution of load.
The cabinet must remain in an upright position.
To reduce the tension on the rigging and the compressive load on the lifting
device, do not allow the angle between the lifting cables and vertical to exceed 45º
(

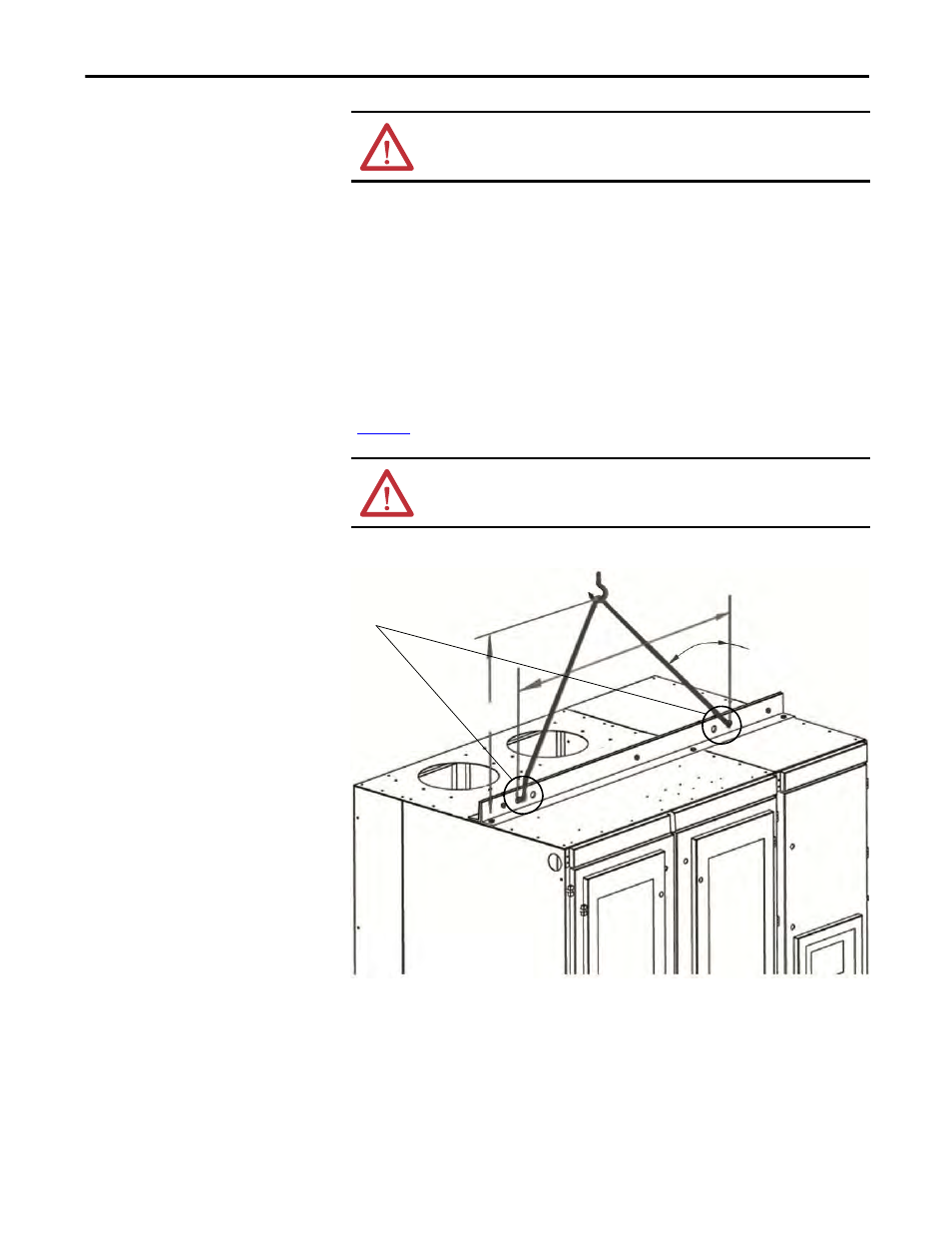

Figure 9 - Overhead Lifting (Power Module/LV Control Cabinet)
3.
Remove the steel angle brackets bolting the cabinet to the skid.
ATTENTION: Do not pass cables through the support holes in the lifting angles.
Use slings with safety hooks or shackles.
TIP
There are pairs of holes to attach lifting cables on either end of the lifting
angle. Generally use the outside holes on either end for the greatest stability.
The inner holes could be used to adjust for the cabinet’s center of gravity.
ATTENTION: Do not tilt the drive.
≤45º
A
1/2 A
Two Pairs of Holes for Overhead
Lifting Attachments
