3-10 Configuring the Video Setup
Reset:
Color Reset
Reset is used to replace your manual settings with the factory
default values.
Color Reset returns the RGB settings to their factory preset values.
1. Push the Menu button to open the OSD.
2. Push the + and - button until the Reset screen is displayed.
3. Push the Menu button again, and then press the + or -
button until the Color Reset adjustment is selected.
4. Push the Menu button to open the Color Reset adjustment
screen.
5. If you want to reset the monitor, press the + to select Yes.
Otherwise, use the - button to select No.
Color Temperature
Color temperature is a measure of the “warmth” of the image
colors.
1. Push the Menu button to open the OSD.
2. Push the + and - button until the Color Temperature screen is
displayed.
3. Push the Menu button to open the Color Temperature
adjustment screen.
4. Use the + or - button to select User Adjusted, Reddish, or
Bluish.
Color Control
Color control allows you to adjust individual red, green, and blue
color on your display.
1. Push the Menu button to open the OSD.
2. Push the + and - button until the Color Control screen is
displayed.
3. Push the Menu button to open the Color Control adjustment
screen.
4. Use the + or - button to select R(ed), G(reen), or B(lue), and
push the Menu button.
5. Use the + or - button to adjust the color setting.
Language
You can change the language of your OSD to one of six languages.
This adjustment only affects your OSD. It has no effect on any of
the software running on your computer.
1. Push the Menu button to open the OSD.
2. Push the + and - button until the Language screen is
displayed.
3. Push the Menu button to open the Language adjustment
screen.
4. Use the + or - button to select the language of your choice.

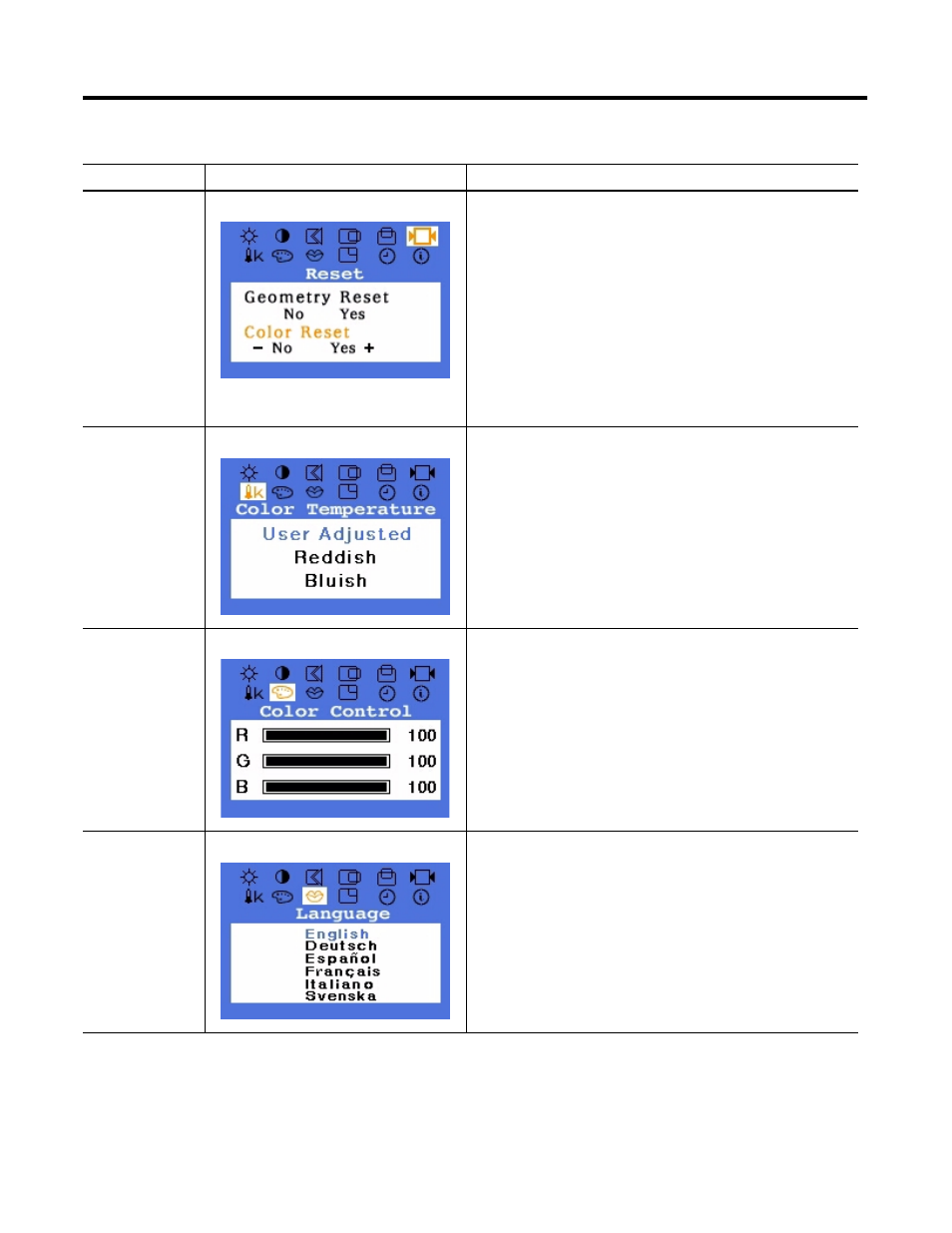

Table 3.D OSD Menus and Adjustment Instructions
Option
Menu
How To Adjust
(continued)
