Publication 6185-UM006A-EN-P - July 2002
Installation 2-7
Installing Your Panel Mount Monitor
1. Prepare panel cutout for monitor. Refer to specific cutout drawings
beginning on page 2-5.
2. If access to the rear of the monitor is not available following installation,
attach the cables to the monitor at this time. Refer to Monitor
Connections on page 2-10 for complete details.
3. Place the monitor into the prepared cutout.
4. Install the self-locking nuts supplied with the monitor, around the
perimeter of the monitor. Extra lock nuts and washers are provided.

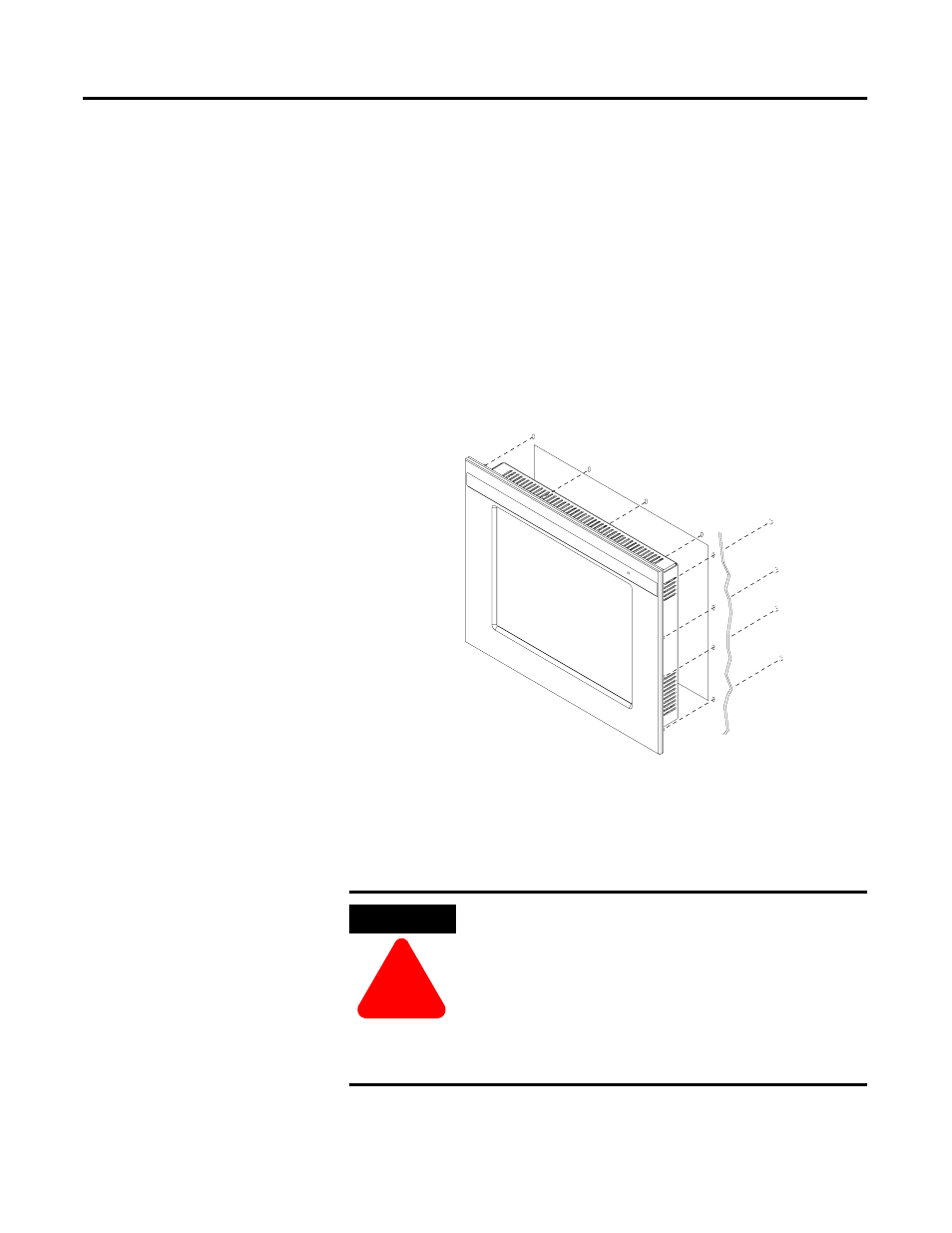

Figure 2.2 This diagram demonstrates how to mount the RAC6185 Industrial Flat
Panel Monitor (6185-F) into a panel or enclosure.
5. Tighten all mounting nuts evenly to a torque of 24 inch-pounds (2.7
N-m).
ATTENTION
!
You must apply self-locking nuts on all studs for
NEMA Types 12/4X fluid applications.
You must tighten mounting nuts to a torque of 24
inch-pounds (2.7 N-m) to provide panel seal and avoid
potential damage. Rockwell Automation assumes no
responsibility for water or chemical damage to the monitor
or other equipment within the enclosure due to improper
installation.
