Create a custom group of parameters – Rockwell Automation 7000 PowerFlex HMI Offering with Enhanced Functionality User Manual
Page 51

Rockwell Automation Publication 7000-UM201B-EN-P - June 2013
49
Drive Terminal Application
Chapter 4
Create a Custom Group of Parameters
The custom setup (
) arranges user-definable groups. These groups are
displayed wherever the normal File-Group-Parameter arrangement of predefined
drive groups is displayed. These are typically found during a Select Parameter
operation or on the Display screen.
Since the custom group name could conflict with a predefined drive group, all
custom groups are displayed in the color green in a list. The custom group names
are enclosed using chevrons to further distinguish them.

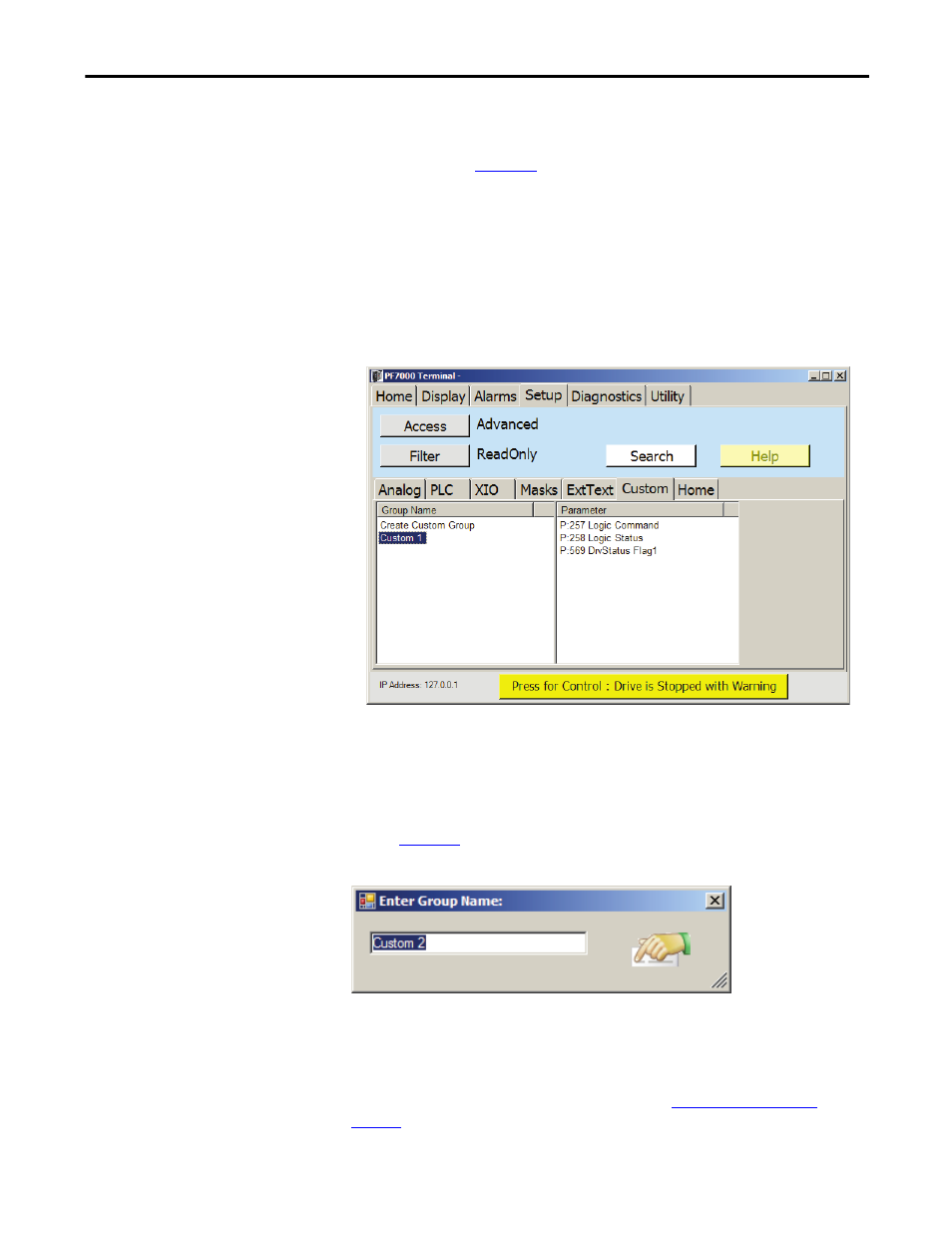

Figure 47 - Custom Setup
To create a new group:
1.
Select “Create Custom Group” from the left panel.
2.
Press the ‘Group Name’ column header to open Enter Group Name dialog
(
).
Figure 48 - Edit Custom Group Name
3.
Use the keyboard to change the default name.
4.
Pressing enter or the ‘Soft Keypad Icon’ to accept the changes.
A new, but empty group will now be displayed. Adding parameters to this new
group is the same as editing an existing group (see
