30 Rockwell Automation Publication 7000-UM201B-EN-P - June 2013
Chapter 4 Drive Terminal Application
Navigating the Terminal Depending on the hardware on which this application is running, the tab may be
selected via a mouse click, or by touching the tab if using a touch sensitive screen.
Each screen is made up of four distinct areas as shown in Figure 24 .

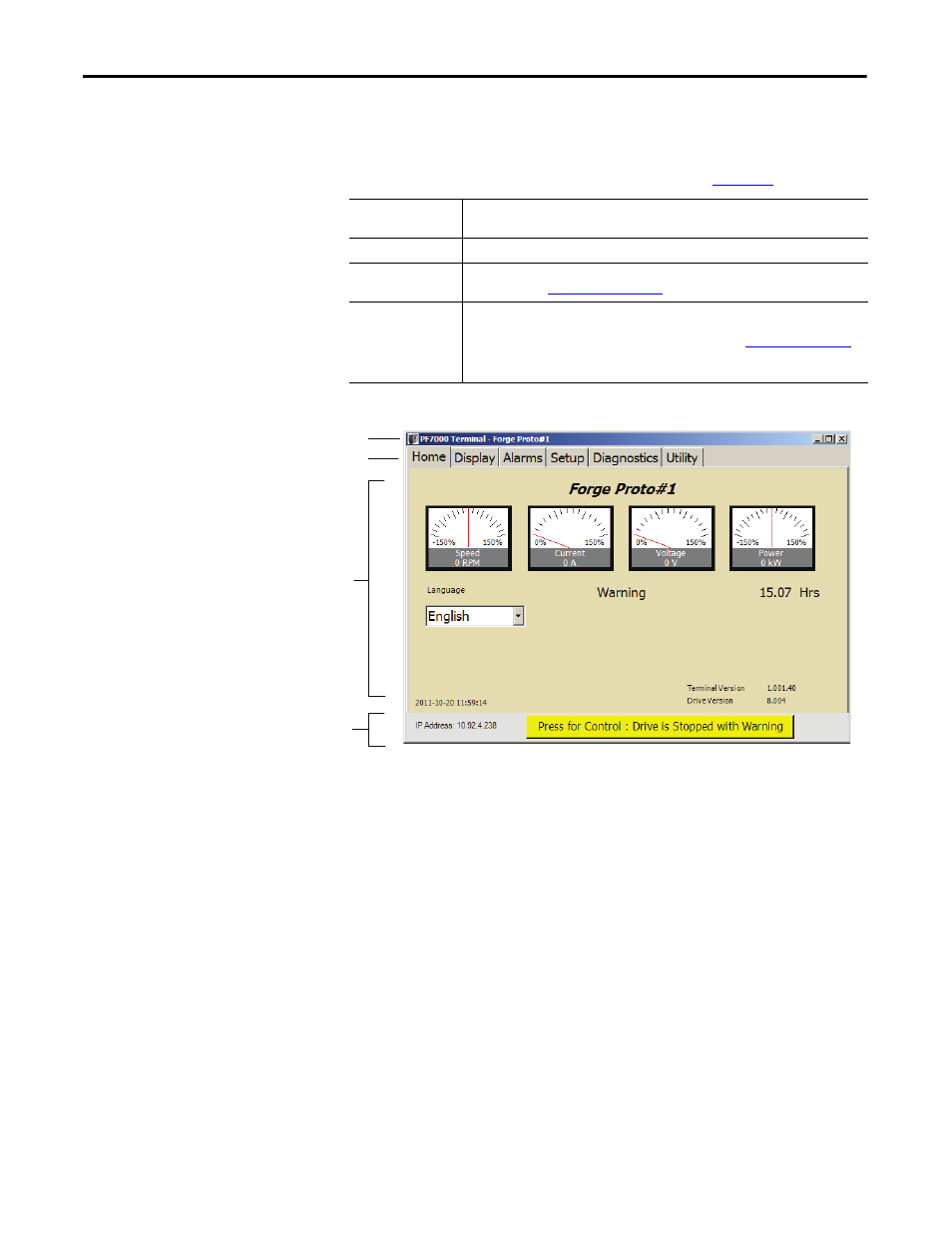

Figure 24 - Typical Screen (Home)
Windows Title Provides the name of the drive to which the application is currently attached. This name is
read from the drive and can be modified. Refer to the section Home Setup.
Screen tabs Provide access to each of the screens within the application.
Screen contents The screen contents vary depending on the selected tab, but contain some common
elements. Refer to
Common Panel on page 32 .
Status Bar The Status Bar is common to all screens and provides:
• The IP Address of the drive connected to Drive status
• Access to the Control Panel for operation of the drive. Refer to
Control Panel on page 62 .
• Terminal busy icon to indicate the terminal is processing a transaction and cannot
respond to user input at this time.
Screen Tab
Screen
Contents
Status Bar
Title Bar
