Forge Shell
Chapter 3

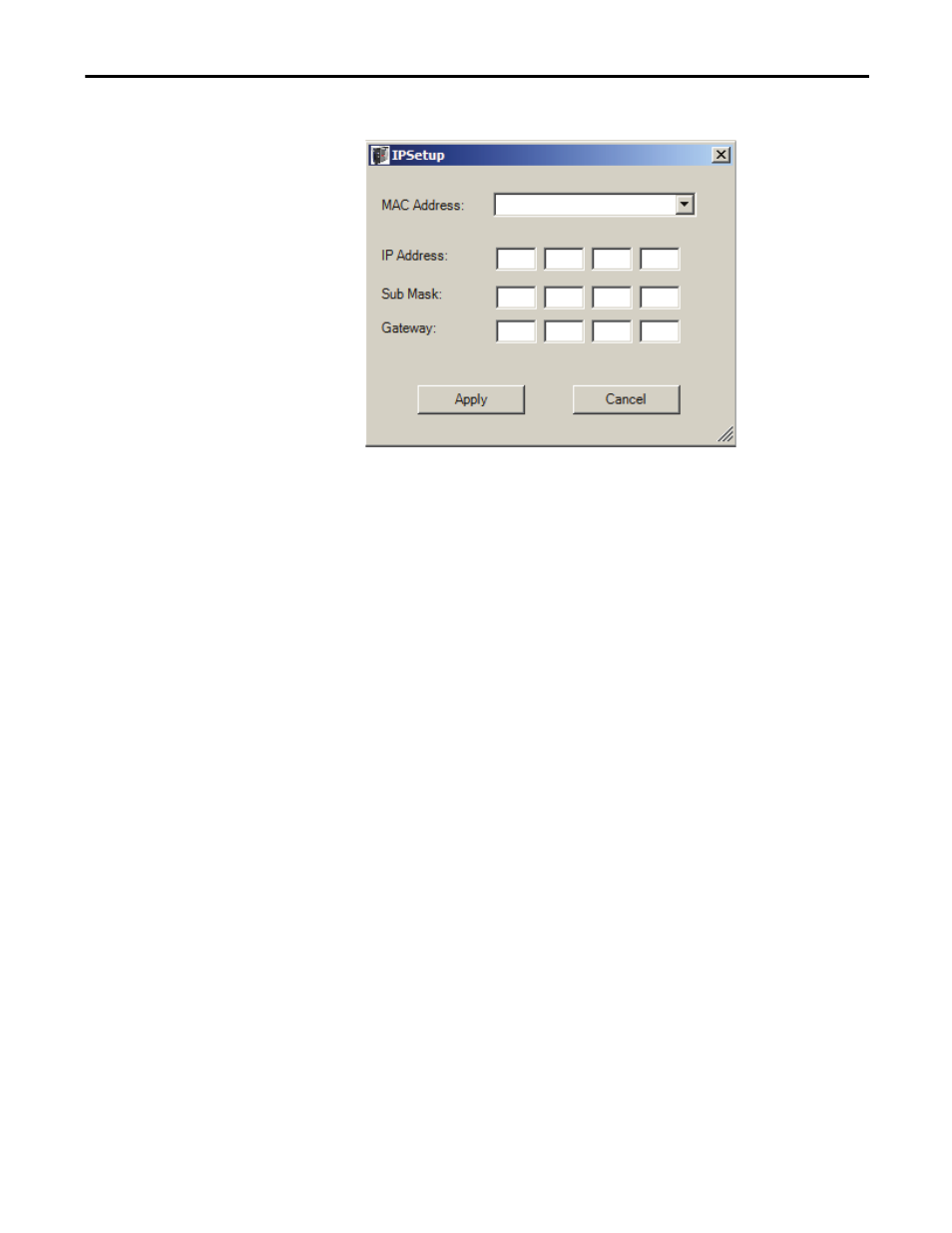

Figure 22 - Maintenance IP Setup
From this dialog, the IP Address of the HMI Interface Board module can be
entered or changed. If the IP Address is set to 0:0:0:0, the module uses Dynamic
IP Addressing or defaults to 169.254.0.10 (if no DHCP server can be found).
Help
For the discovery process to work, the PC on which Forge Shell is running must
allow UDP traffic on Port 20034. Some firewalls may block this traffic. Doing so
results in no modules showing within the Forge Shell program.
Close
Click Close to terminate the Forge Shell program. Clicking on the PowerFlex
7000 logo in the bottom right corner of the window also closes the program.
