36 Rockwell Automation Publication 7000-UM201B-EN-P - June 2013
Chapter 4 Drive Terminal Application
Display The display screen, shown in Figure 31 , is used to both monitor and make
changes to any parameter in the drive.

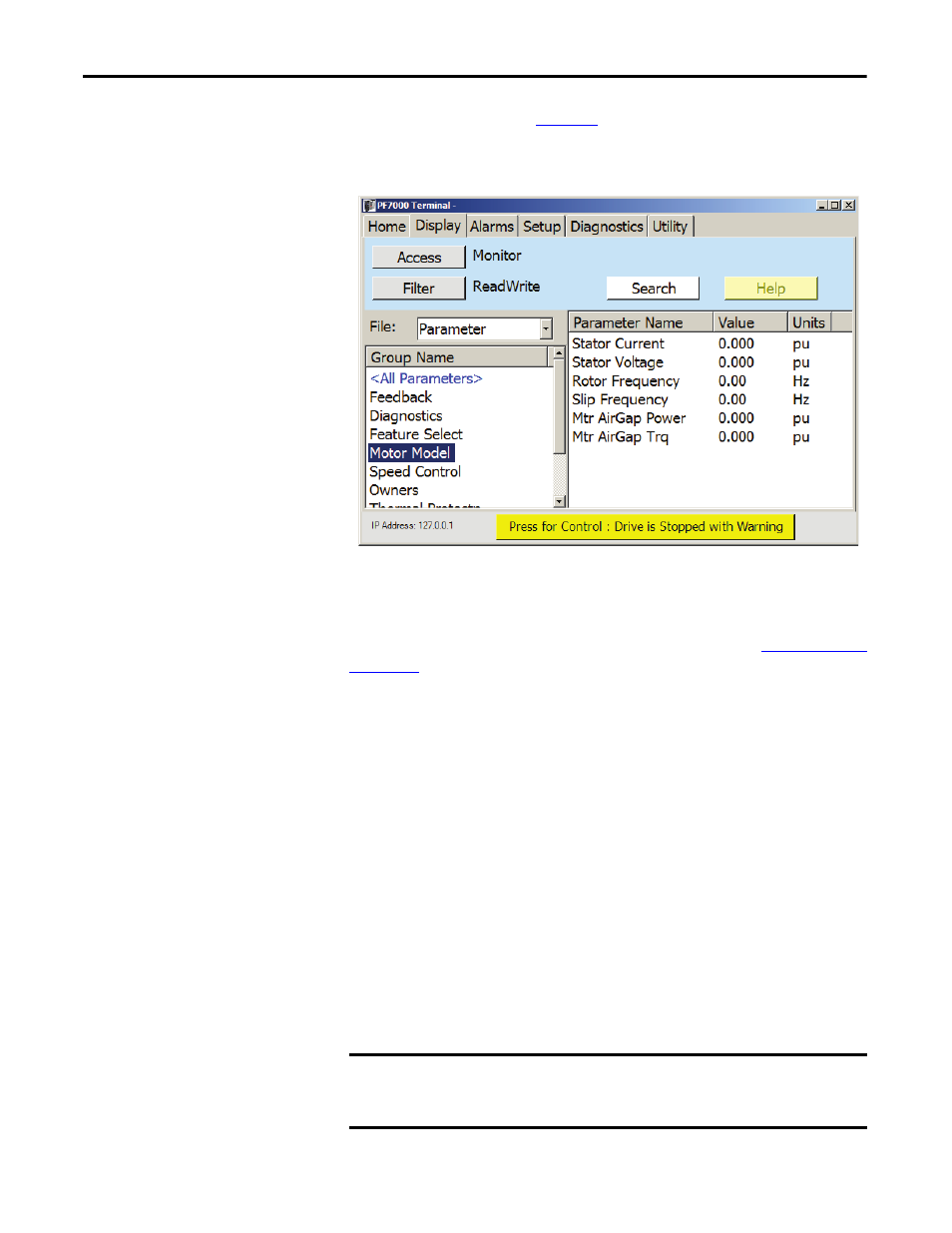

Figure 31 - Display Screen
The screen is arranged into two panes. The left pane shows the name of the
groups within the selected file, while the right pane shows the parameters which
are within the selected group. The contents of the two panes are filtered
according to current Access Level and the Read/Write filter (see
Common Panel
on page 32 ).
The column header of the left pane is “Group Name”. Pressing this header will
cause the group names to be sorted on each press based on:
• normal drive arrangement (group numbers)
• alphabetically
• group access level (sort on a secondary alpha key)
Special to the group pane is the first entry in the list. This entry “Parameters>” shows all parameters, regardless of grouping, within the drive
which meet the filter criteria. The last entries are also special in that they will
show custom created groups which the user has defined. The naming of the
custom group is in alternative color (green) to distinguish from the standard
group names used in the drive. Custom groups are defined within the Setup
Screen.
A custom group is not filtered by the Access Level, but the ability to change the
parameter in a custom group still applies based on the current access level.
EXAMPLE A ‘Rockwell’ level parameter may be viewed in a custom group at the ‘Basic’
level, but would not be changeable without first gaining the ‘Rockwell’ access
level).
