Rockwell Automation Publication 7000-UM201B-EN-P - June 2013 25
Forge Shell Chapter 3
Maintenance Menu The maintenance button on the ForgeShell main screen opens the menu in
Figure 19 .

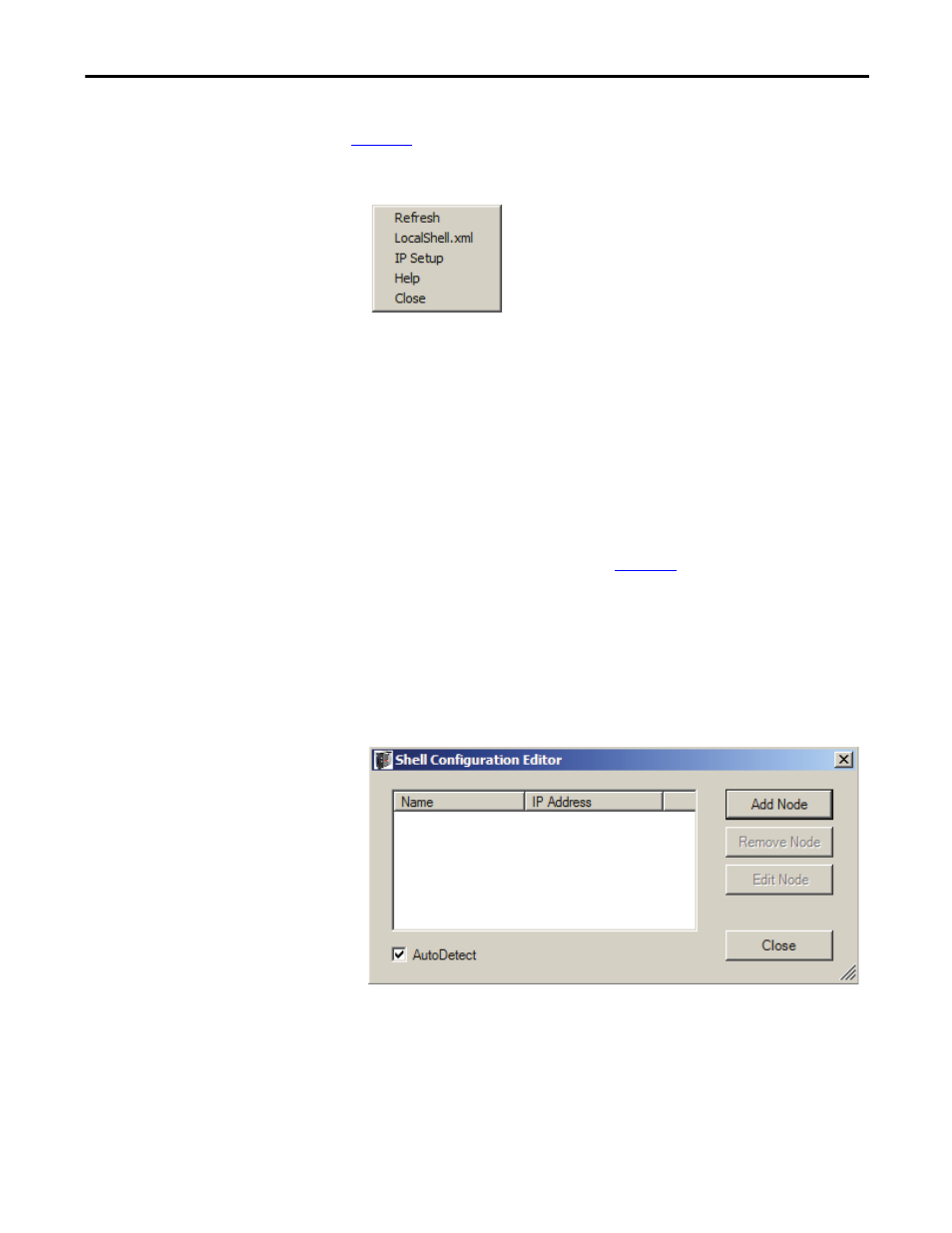

Figure 19 - Maintenance Menu
Refresh
The discovery process only occurs when the program is launched.
To discover devices which have subsequently come online or have been
reconfigured, click Refresh.
LocalShell.xml
The discovery process can be configured to explicitly look for certain drives.
Selecting this option, opens the dialog of
Figure 20 .
When the ‘AutoDetect’ button is checked, the program automatically discovers
all PowerFlex 7000 HMI Interface Board modules on the local network. Drives
on a different network can also be discovered, but only if their node IP Address is
explicitly added to the list. If the AutoDetect is NOT checked, modules on the
local network can still be discovered if they also are added to the Node list.
Figure 20 - Shell Configuration
