Rockwell Automation ControlFLASH Firmware Upgrade Kit User Manual User Manual
Page 24
24
Rockwell Automation Publication 1756-UM105E-EN-E - October 2012
Chapter 4 Upgrade Firmware with ControlFLASH
8.

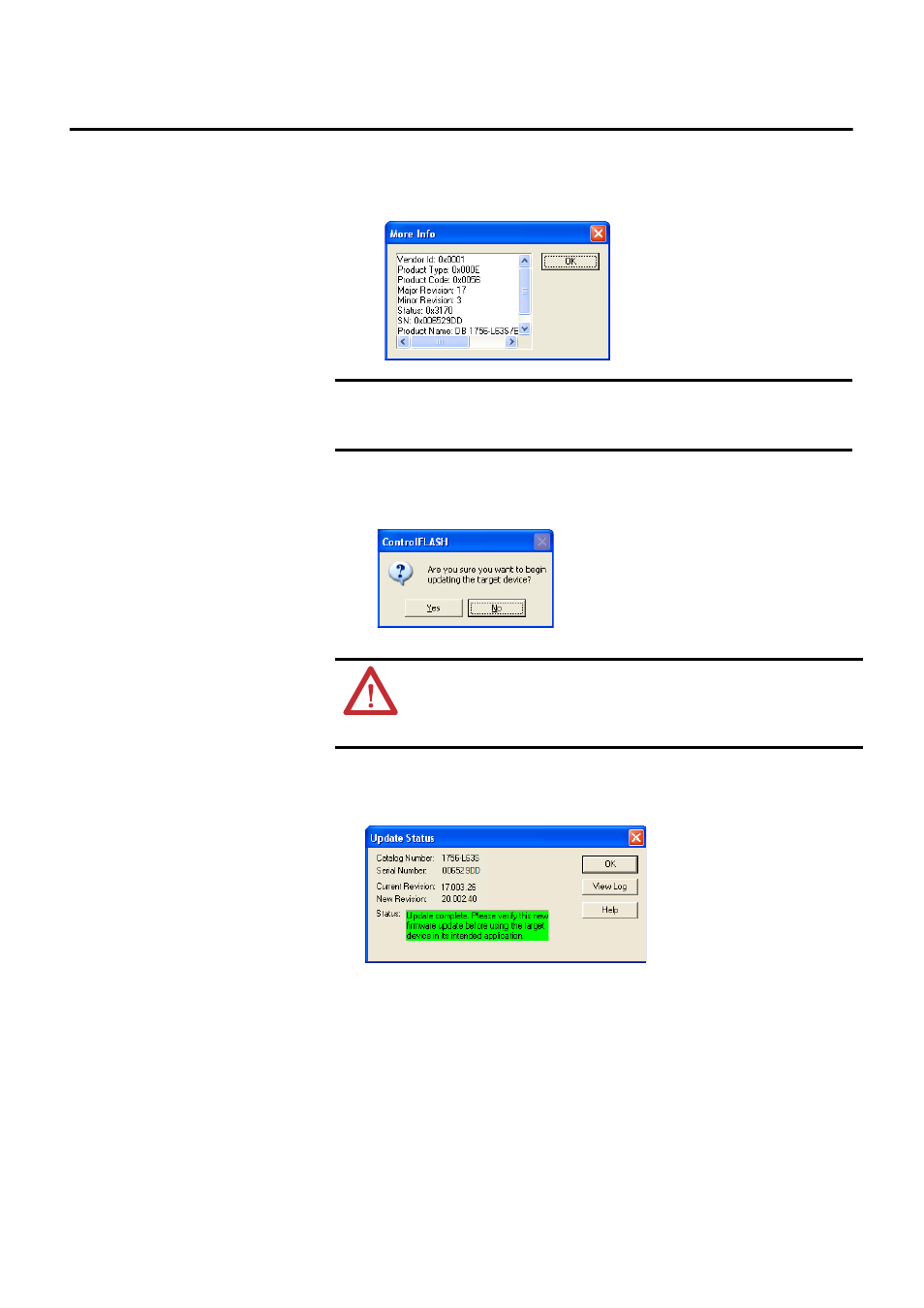

Click More Info to review more about the revision you selected, and click
OK
to close the dialog box.
9.
Click Finish when you are ready to upgrade the device.
10.
Click Yes to continue with the update. The upgrade is in progress.
11.
After the upgrade, the Update Status dialog box appears..
IMPORTANT
Be sure that this update is the correct one for your device. If not, an
unpredictable system operation will result. Check with your technical
support representative if you are unsure about making the update.
ATTENTION: If you are attempting to flash a CompactLogix L2x or L3x controller,
it is extremely important to allow the upgrade to complete without interruption.
ATTENTION: Interrupting the upgrade at this point may result in an inoperable
product. Make sure the upgrade is going without interruption.
