Chapter 4 Upgrade Firmware with ControlFLASH

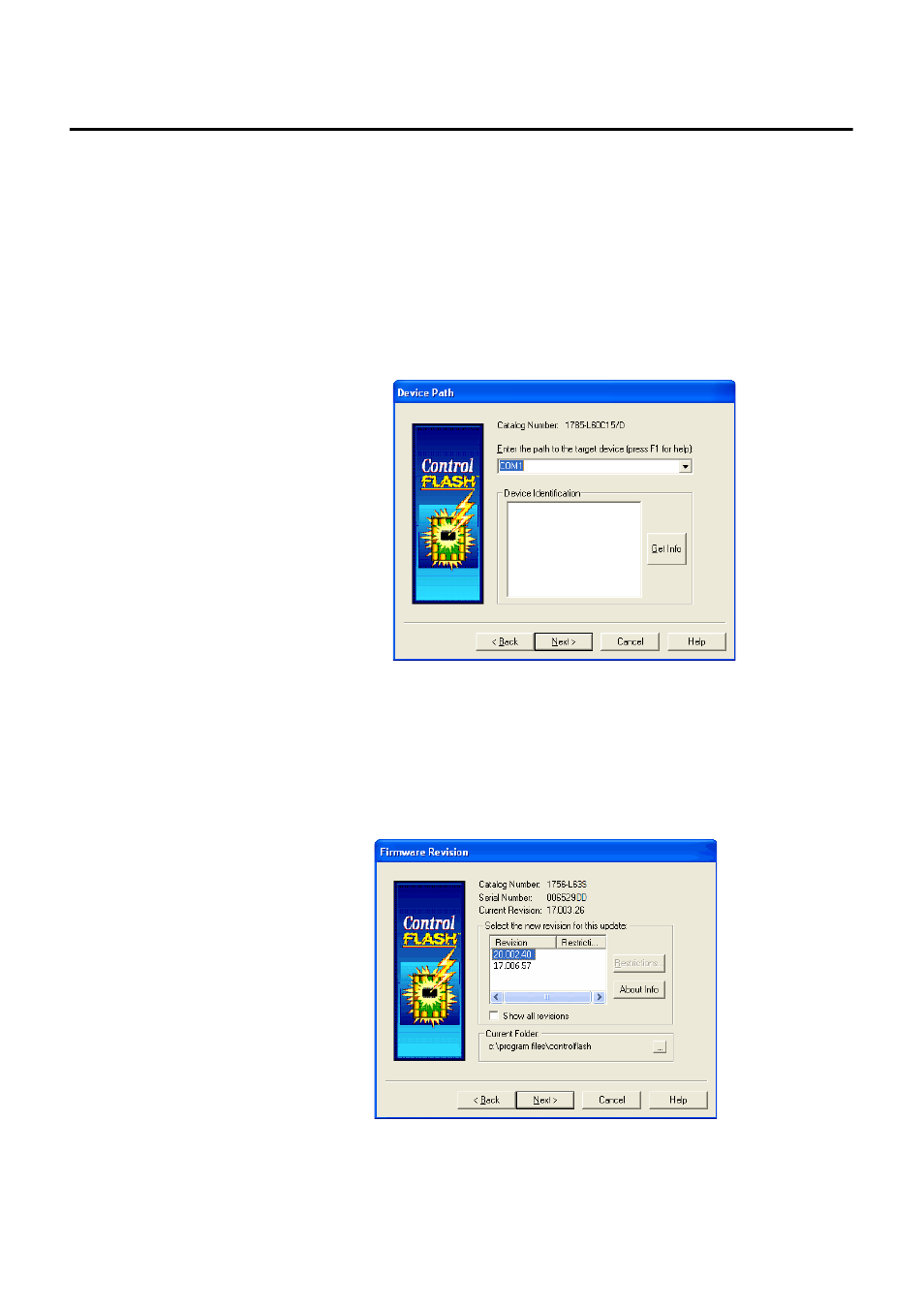

To specify the network path, in the device path box, enter the IP address
or host name of the target module. Cick OK to go to the Firmware
Revision dialog box.
For more information about the device you are updating, click Get
Info
. The information is displayed in the Device Identification area. For
more information about AB_SNMP protocol driver, click Help.
– If you are updating a device with AB_PLC5 protocol driver, the Device
Path dialog box is displayed.
To specify the network path, in the device path box, enter the path in
the box of the target module. Click Next to go to the Firmware
Revision dialog box.
For more information about the device you are updating, click Get
Info
. The information is displayed in the Device Identification area.
6.
In the Firmware Revision dialog box, do one of the following:
– To select a firmware revision, click the desired revision in the revision
list.
